Installing/Removing Lateral Supports and/or Pelvic Stabilizers

NOTE: For this procedure, refer to FIGURE 2.10.
NOTE: To remove the lateral supports or pelvic stabilizers, reverse this procedure.
NOTE: If the InTouch PCS Positioning Back is used on a power wheelchair that has a MK6i™ connector tray attached to the back shell,
it may be necessary to remove the two screws and hex nuts that attach connector tray to the back shell to gain access to the slots. Before
removing the screws, make note of the orientation of the connector tray while it is still attached to the back shell.
NOTE: The lateral supports and pelvic stabilizers can be installed at any position on the back shell that is best for the user and MUST
ALWAYS be attached with two socket screws and flat washers.
NOTE: A 7/16 wrench is required for this procedure.
NOTE: The Lateral Support can be adjusted up or down in the upper slots in 1" increments.
NOTE: The Pelvic Stabilizer can be adjusted up or down in the lower slots in 1" increments.
1. Determine the desired position to attach the lateral or pelvic stabilizers on the back shell.
2. Remove the two screws and hex nuts that attach the connector tray mounting brackets to the back shell. If the wiring
is already in place, let the MK6i connector tray and brackets hang loosely from the wiring.
3. For each pelvic stabilizer or lateral support, attach to the back shell with two socket head screws and washers.
4. Attach the connector tray mounting brackets to the back shell with two screws and hex nuts.
Screws
Lateral Support
Pelvic
Stabilizer

Removing the Back for Transport

NOTE: Both latches MUST be in the up (unlocked) position to remove the back.
1. On each back mounting bracket, slightly pull out as you rotate the bottom of the latch 180° to the up (unlocked)
position.
2. Lift the back off of the back cane mounting assemblies.
Part No 1163138
Front view
Slots

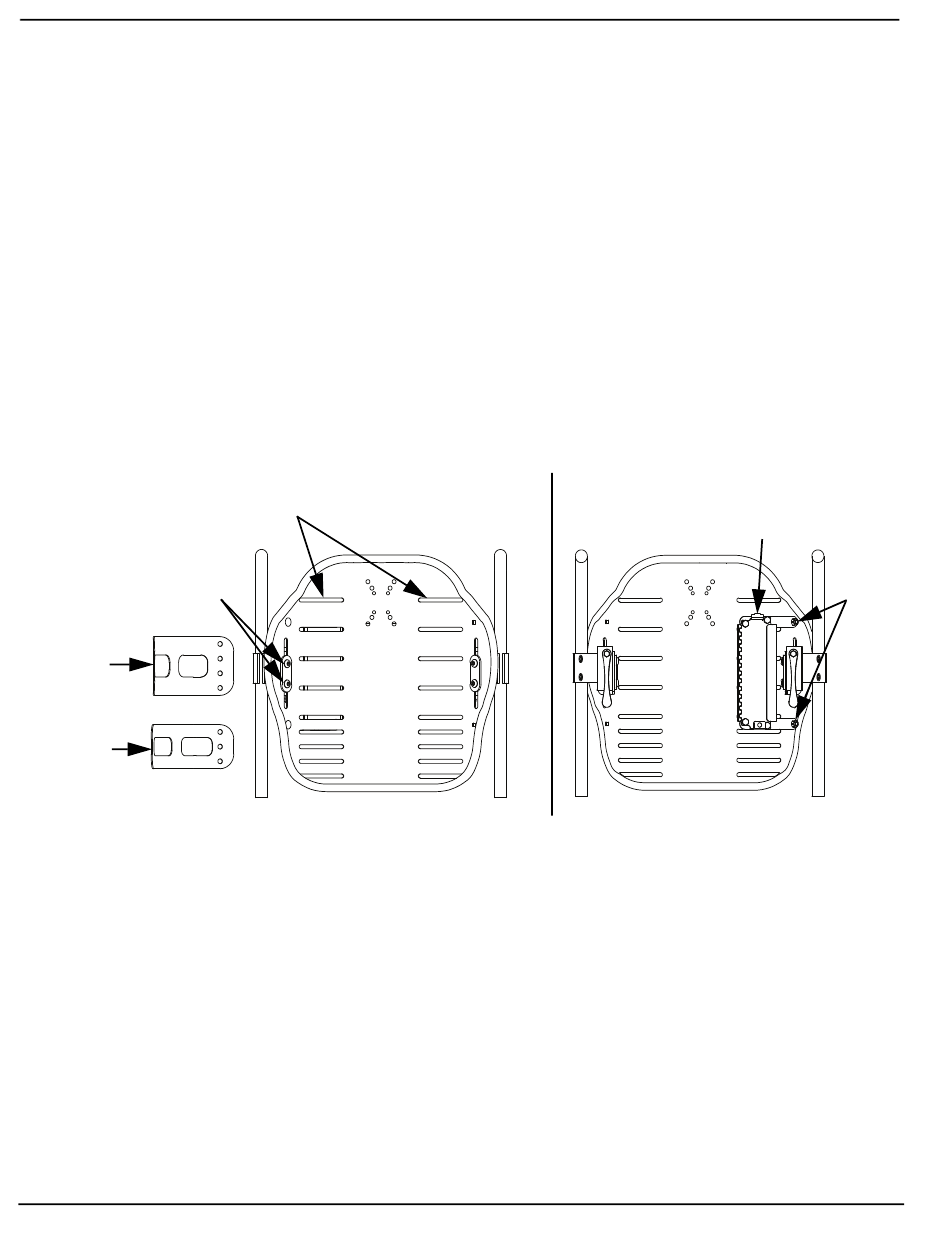

FIGURE 2.10 Secondary Height Adjustment
SECTION 2—INSTALLATION
11
Back view
MK6i connector tray
Hex Nuts
™ ™
InTouch PCS Positioning Back
