5. PREPARATION AND START-UP
5.1. Disassembling the casing
The product is delivered disassembled so that you can access the lower part of the electronics. This part enables the sensor or sensors to be
connected to the screw terminals as well as access to the configuration switches.
Once assembly of the sensors has been finalised and the configuration has been carried out, the casing can be closed.
NB: Once the casing is closed, it will no longer be possible to open it without running the risk of voiding the IP67 protection index guarantee.
5.2. Fitting the packing gland seal
Before connecting your sensor's cable strands to the product's screw terminals, you must insert the packing gland's nut and the seal appro-
priate for your configuration.

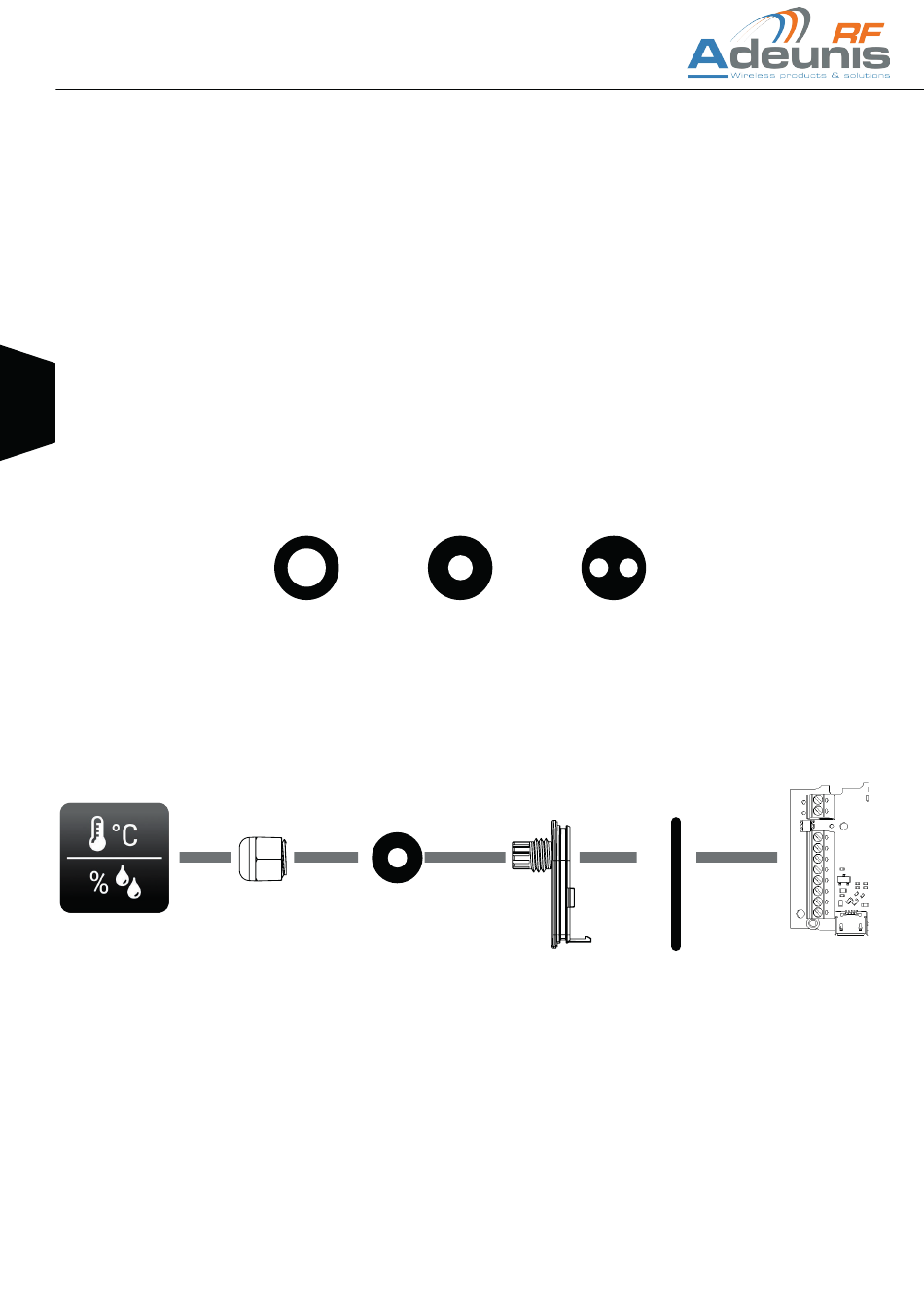

Three types of seals are supplied with product: For a cable with a diameter of 5 mm, for a cable with a diameter of 3 mm, and for two cables
EN
with diameters of 2.2 mm.
Assembly procedure:
5.3. Mounting the sensor on the screw terminals
Once the nut and the packing gland seal are fitted, the sensor cables' strands can be connected to the product unit's screw terminals.
Note: A maximum of 2 sensors may be used in parallel. The user can choose freely between analog and digital options
1 - Your sensor and
its cable
Analog sensors require an electric power supply that the battery of the product unit is not able to provide. You must therefore supply the analog
sensor via an external electrical source.
Below is an installation recommendation that will ensure smooth running of the Adeunis RF product + 0-10V sensor assembly
Seal for 1 x 5 mm diam. cable
2 -Pass the cable
3 - Pass the cable
through the packing
through the packing
gland nut
gland seal
Seal for 1 x 3 mm diam. cable
90
4 - Pass the cable
through the product
107
casing base
Seal for 2 x 2.2 mm diam. cables
27
5 - Fit the O-ring
onto the seal of the
casing base
6 - Connect the sen-
sor cable strands to
the screw terminals
