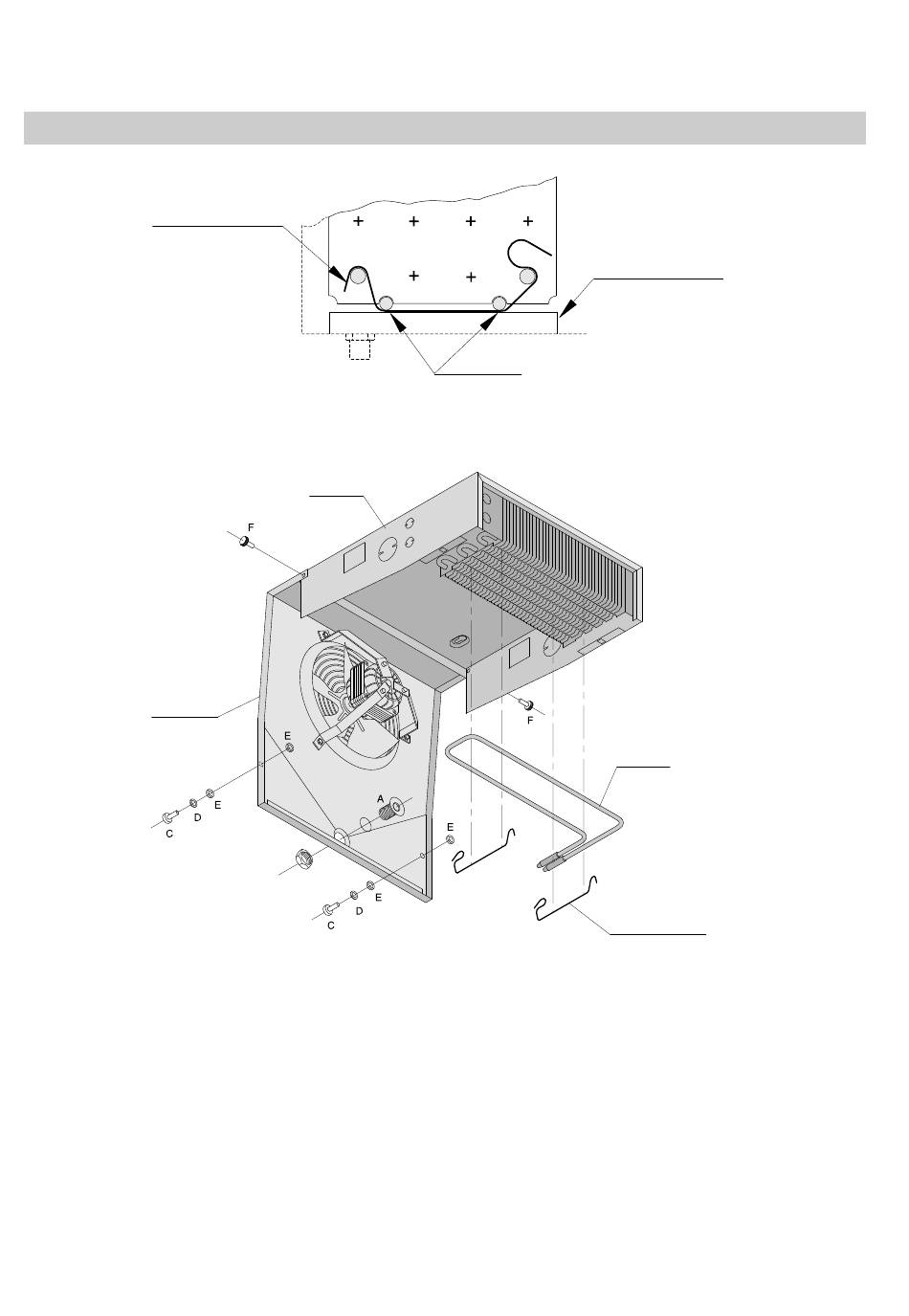

Manufacturing and dimensional features
Positioning detail of electric heater
Heater clip

Proper access to model

Fan shroud
Preliminary assembly
1. Install condensate drain connection "A" with relative rubber washer.
2. "EVS" - "EVS-ED" series: connect heater and motors through one of the knockout entries; use rubber fairlead supplied as to avoid
possible damage to wiring.
3. "EVS/B" - "EVS/B-ED" series: heater and motors prewired in junction box; use the the knockout entries and rubber fairlead for the
electric connections.
4. Use screws "C", washers "D" and rubber washers "E", as per drawing, to close and fasten fan shroud.
Access
1. Disconnect condensate drain connection so that it does not hamper with opening/closing of fan shroud.
2. Loosen knurled fastening screws "F" and unscrew the fastening screws "C" of the fan shroud.
3. Bring fan shroud to the position shown in drawing.
Remounting
1. Position fan shroud ensuring that the casing is inside, tighten knurled screws "F" and fasten with screws "C".
2. Reconnect the condensate drain connection.
12
www.modinecoolers.com
Casing
Inner drip tray
(for EVS/B series only)
Heater
Electric heater
Heater clip
