5. MACHINE DESCRIPTION

5.1. CONDITIONS OF USAGE
Use this brushcutter only to cut grass and small bushes. Any other type of usage is dangerous and run at
your own risk. Do not use the machine for other jobs. For example, do not use the machine to cut wood, plastic
materials, bricks or construction material. The use of the machine for other uses could be dangerous.
The use of this machine for jobs for which it was not designed will cause dangerous situations.
Use this machine outdoors, in dry atmospheres and in temperatures ranging from 5º C to 45º C.
Remember user is the responsible of danger and accidents caused to other people or things. The manufacturer
will not be liable for damages caused by an inadequate or incorrect use of the machine.
5.2. DETAILED DESCRIPTION OF THE PRODUCT
1. Transmission
2. Throttle trigger
3. Switch starter
4. Safety lever
5. Handlebar
6. Hitch of harness
7. Air filter cover
8. Combustible tank cap
9. Petrol tank
10. Starter handle
11. Air clutch
12. Protector
13. Nylon cutting blade
14. Nylon line head
15. Gear box
16. Guard support
17. Oil fill cap
18. Oil tank
19. Primer
20. Safety trigger
21. Blade

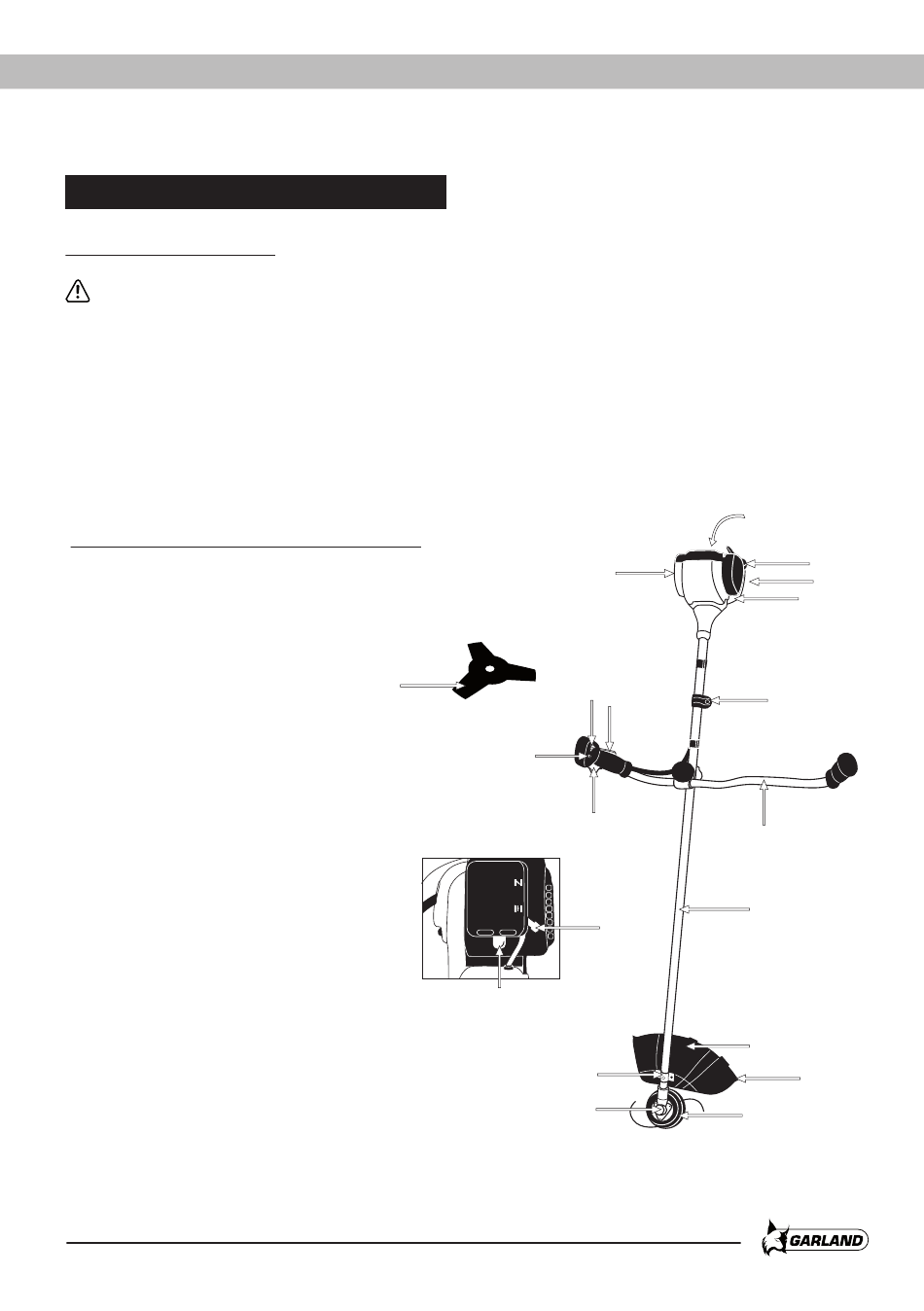

The diagrams and pictograms herewith enclosed in this manual are a guide but not necessarily an exact copy
of the actual machine.
