7b
CAUTION - To Reduce The Risk Of Fire And Electric Shock, Install This Down Draft Only With Remote
Blowers RB900, RB1200 Manufactured by Faber.
Connect the Remote Blower wiring to the connector of the Electric Unit.
Accessories needed:
- Remote Blower model - RB900, RB1200 (purchased separately).
- WIREBOXSCLX for Remote Blower (purchased separately).
Attention: Install the Wiring Box with two screws (provided) on a flat and dry surface.
Connect the Remote Blower wiring plug connector to the connector of the Electric Unit.
Run 2-wire plus ground power cable from the Remote Blower to wiring box on the Cover according to
local codes and ordinances. Use Listed fittings.
• Connect the Wire Connector
from the Blower with the
correct connector on the
Electric Unit.
12

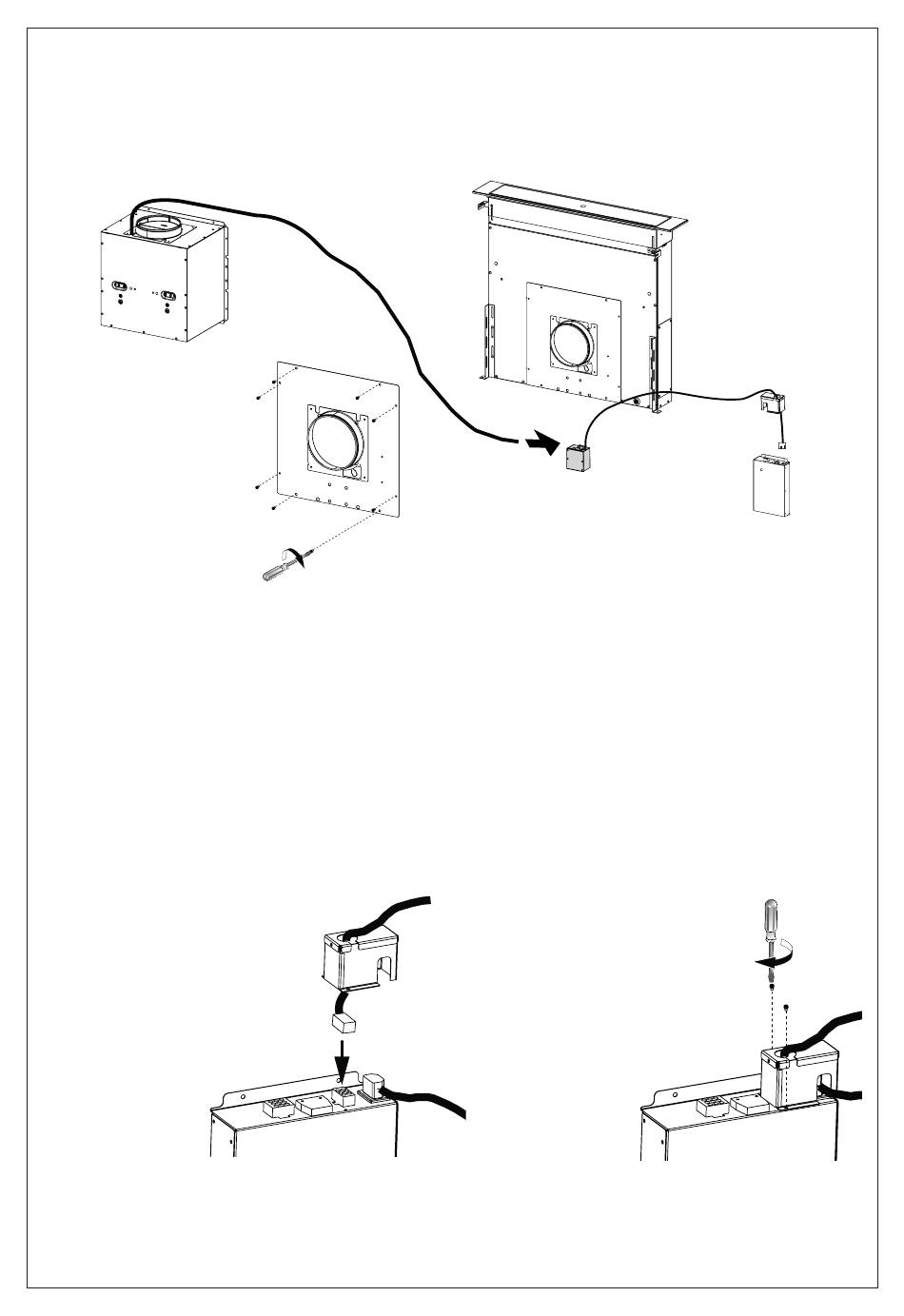

Installation of Remote Blower
4x
• Secure the Wire
Connector from the
Blower at the Electric
Unit with 2 screws.
