Installation Procedure; Preparing The Cooktop - Bosch NGM8058UC Instructions D'installation

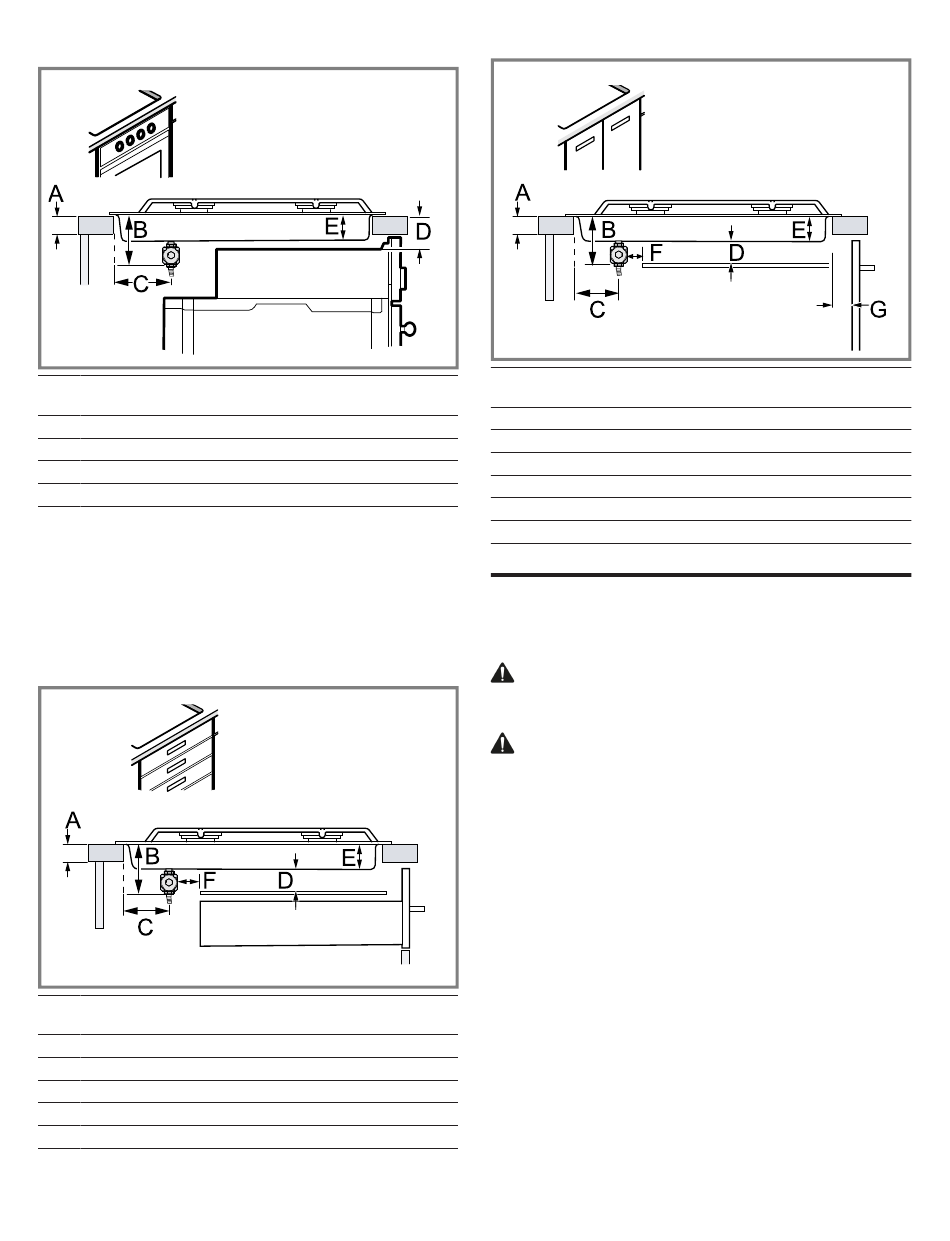

Installation over oven
A min. ¾" (19 mm)
max. 2" (50 mm)
B 5⅞" (150 mm)
C 2¾" (70 mm)
D Refer to Approved Combination Matrix
E 2⅜" (60)
Installation with horizontal panel
If there is no oven beneath the cooktop, install a horizontal
panel. To allow access to the power supply connection
and regulator maintain a minimum clearance of
⅜" (10 mm) from the edges of the panel (F).
IMPORTANT: Complete the installation of the cooktop be-
fore installing the horizontal panel.
Installation above a drawer
A min. ¾" (19 mm)
max. 2" (50 mm)
B 5⅞" (150 mm)
C 2¾" (70 mm)
D min. 0" (0 mm)
E 2⅜" (60)
F min. ⅜" (10 mm)
Installation above a cabinet door
A min. ¾" (19 mm)
max. 2" (50 mm)
B 5⅞" (150 mm)
C 2¾" (70 mm)
D min. 0" (0 mm)
E 2⅜" (60)
F min. ⅜" (10 mm)
G min. 1" (25)
4 Installation procedure

Installation procedure

Follow these instructions to install the cooktop into the
Installation procedure
countertop.
CAUTION
Sharp edges.
Use protective gloves when installing the appliance.
▶
CAUTION
The appliance is heavy.
It is recommended that two people install this appliance.
▶
4.1 Preparing the cooktop
Place the cooktop face down on a soft and stable sur-
1.
face. Use the foam sheet from the packaging to protect
surfaces from scratching.
Installation procedure en-us
9
