1. INTRODUCTION
It can manage a 230/230 Vac 3-phase motor - delta
connected - max 1,5KW (current limited to 10A).
The inverter allows to adjust the forces and speeds of
the motor.
J-INV 3P is equipped with inputs for photocells and
safety edges, for SS (Step-by-step), PED (pedestrian
opening), OPEN (Open), CLOSE (Close), STOP
commands, for limit switches and with a large display
with three buttons for settings .
It is also equipped with connectors for a radio receiver,
an output for courtesy light and an output for flasher.
It is possible to connect an electric lock or an external
electric brake.
WARNING: DO NOT INSTALL THE CONTROL
BOARD WITHOUT READING THE INSTRUCTIONS
FIRST!

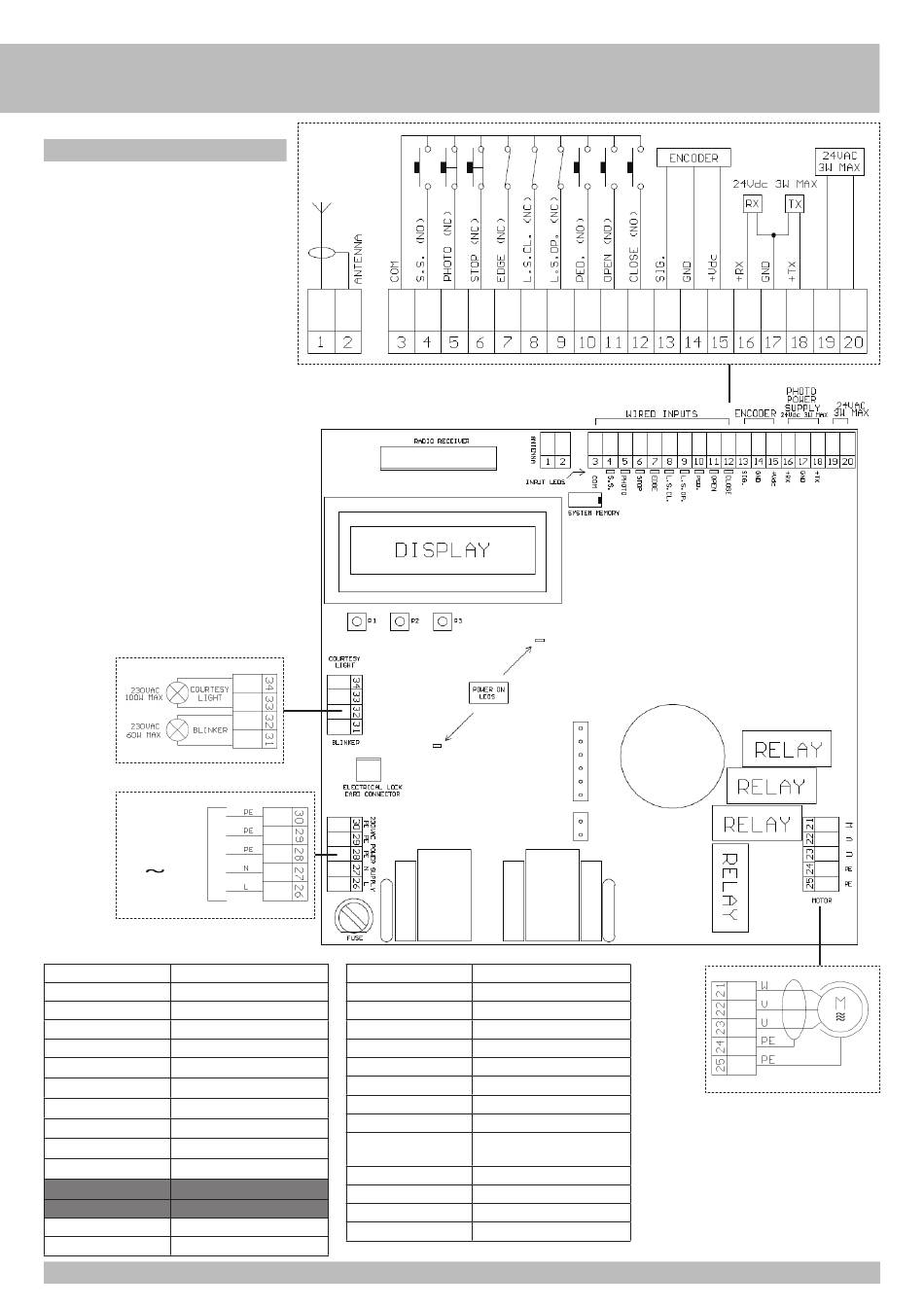

230 Vac
50/60 Hz
ANTENNA Antenna
COM Common
SS Step by Step
PHOTO Photocell
STOP Stop
EDGE Safety edge
L.S.CL. Closing limit switch
L.S.OP. Opening limit switch
PED Pedestrian opening
OPEN Opening command
CLOSE Closing command
ENCODER Encoder
SIG. Encoder signal
GND Ground
PHOTO POWER SUPPLY Photocells power supply
+ RX Photo Receiver
+ TX Photo transmitter
W - V - U Motor connections
PE Terra
N Neutro
L Fase
SYSTEM MEMORY System memory
BLINKER Flashing light
COURTESY LIGHT Courtesy light
ELECTRIC LOCK CARD Electrobrake card connector
CONNECTOR
RADIO RECEIVER Radio receiver
FUSE Fuse
INPUTS LED Input leds
POWER ON LEDS Power on leds
