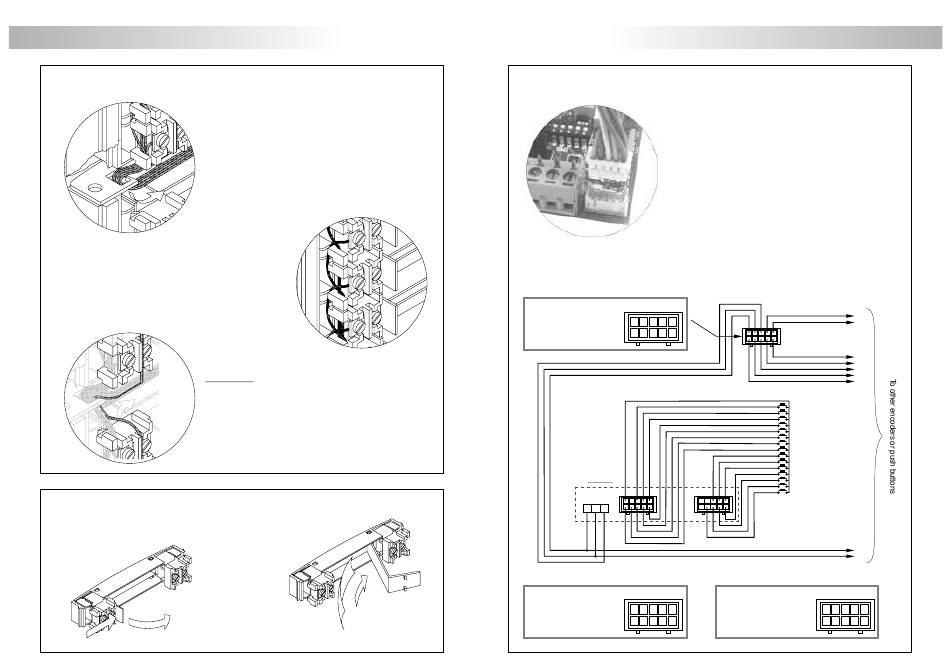

DOOR PANEL INSTALLATION
P
ush buttons wiring.
For a quality finish, pass the push buttons wires through the
spacer hole of the closest module. It's recommended to
use wires of less than 0,25mm section.
Twist the call wires as shown. The call wires will be
connected to the EL500SE microprocessed circuit or
to the corresponding EL516SE push buttons encoder.
IMPORTANT: link the push buttons common terminal of the
several push buttons modules. The common terminal of
the push buttons contained in a module are linked from
factory. The CP terminal of the EL500SE microprocessed
circuit must be connected at the push buttons common
and to the CP terminal of the corresponding EL516SE
encoder circuit (if it exists).
P
lace the nameplate labels.
Open the label holder.
109
2
Place the label and
close.
110
DOOR PANEL INSTALLATION
P
ush buttons wiring.
Plug the push buttons connection cable to the CN6 connector
of the EL500SE microprocessor circuit, this cable has 10
conductors (P1 to P8, B and CP) for the connection of push
buttons or EL516SE.
The CP terminal must be connected to the push buttons
common terminal and to the CP terminal of the push
buttons encoder circuits. Connect B terminal to the B
terminal of the encoders.
Link the push button inputs (P1...P8) to the push buttons
and/or to the encoder circuits (P) as shown in the example.
IMPORTANTE: In case of more than one access, wire all the push buttons and modules EL-516SE
following the same order in all the door panels.
EL500SE
Description CN6 conector
Colours codes
Top view
CP: Black P4: Violet
B: Red P5: Yellow
CP B P1 P2 P3
P1: Green P6: White
P8 P7 P6 P5 P4
P2: Orange P7: Brown
P3: Blue P8: Grey
EL-516SE
CN2
CN1
CP B P
EL516SE
Description CN2 conector
Colours codes
Top view
CP: Black P4: Violet
B: Red P5: Yellow
CP B P1 P2 P3
P1: Green P6: White
P8 P7 P6 P5 P4
P2: Orange P7: Brown
P3: Blue P8: Grey
( )
No function.
**
P2
P3
CN6
P4
P5
P6
P7
P8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
CN3 15
CP
B
EL516SE
Description CN3 conector
Colours codes
Top view
CP: Black P12: Violet
B: Red P13: Yellow
CP B P9 P10 P11
P9: Green P14: White
P15 P14 P13 P12
P10: Orange P15: Brown
P11: Blue : Grey ( )
**
