II.
EXPLODED VIEW DIAGRAM
NOTE: Follow the instructions step by step for fastest installation. Do not securely tighten fasteners until
directed to do so.
III.
LARGE FRAME CARRIER PRE-ASSEMBLY
Place large frame carrier on a flat surface like the floor or a workbench.
Place the Stiffening Plate under the winch carrier and align the holes with the holes in the carrier.
Insert 6 - 7/16 x 1 1/4" Carriage Bolts through the holes in the winch carrier and stiffening plate. Install
a flat washer, lock washer, and hex nut on each carriage bolt. Do Not tighten. See Figure A.
WARN

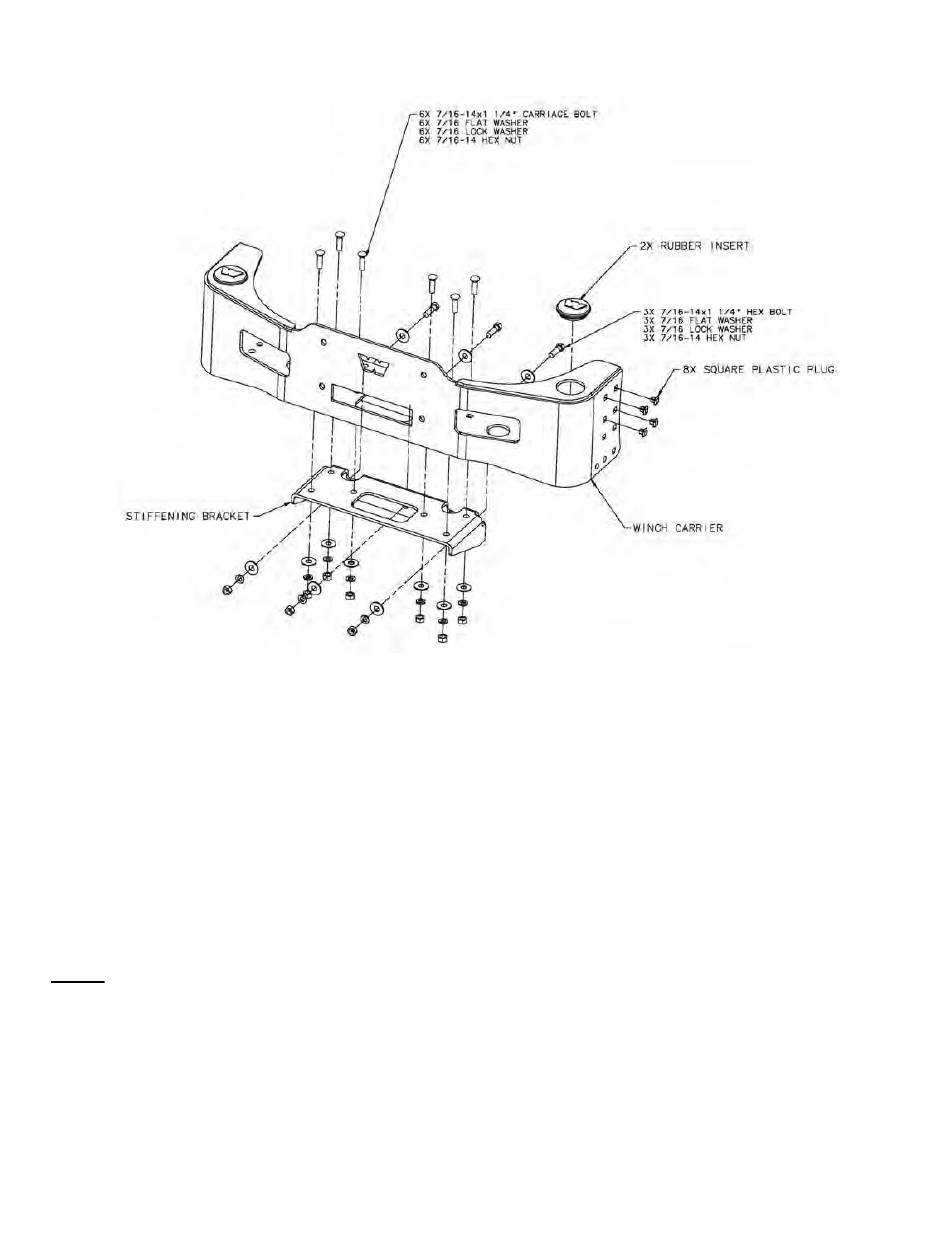

Figure A: Large Frame Exploded View
TORQUE SPECIFICATIONS
BOLT SIZE
7/16 inch
TOOLS REQUIRED
5/8, 11/16 sockets and/or wrenches
TORQUE
50 lb. ft. (67.8 N-m)
3
81876 Rev A3
