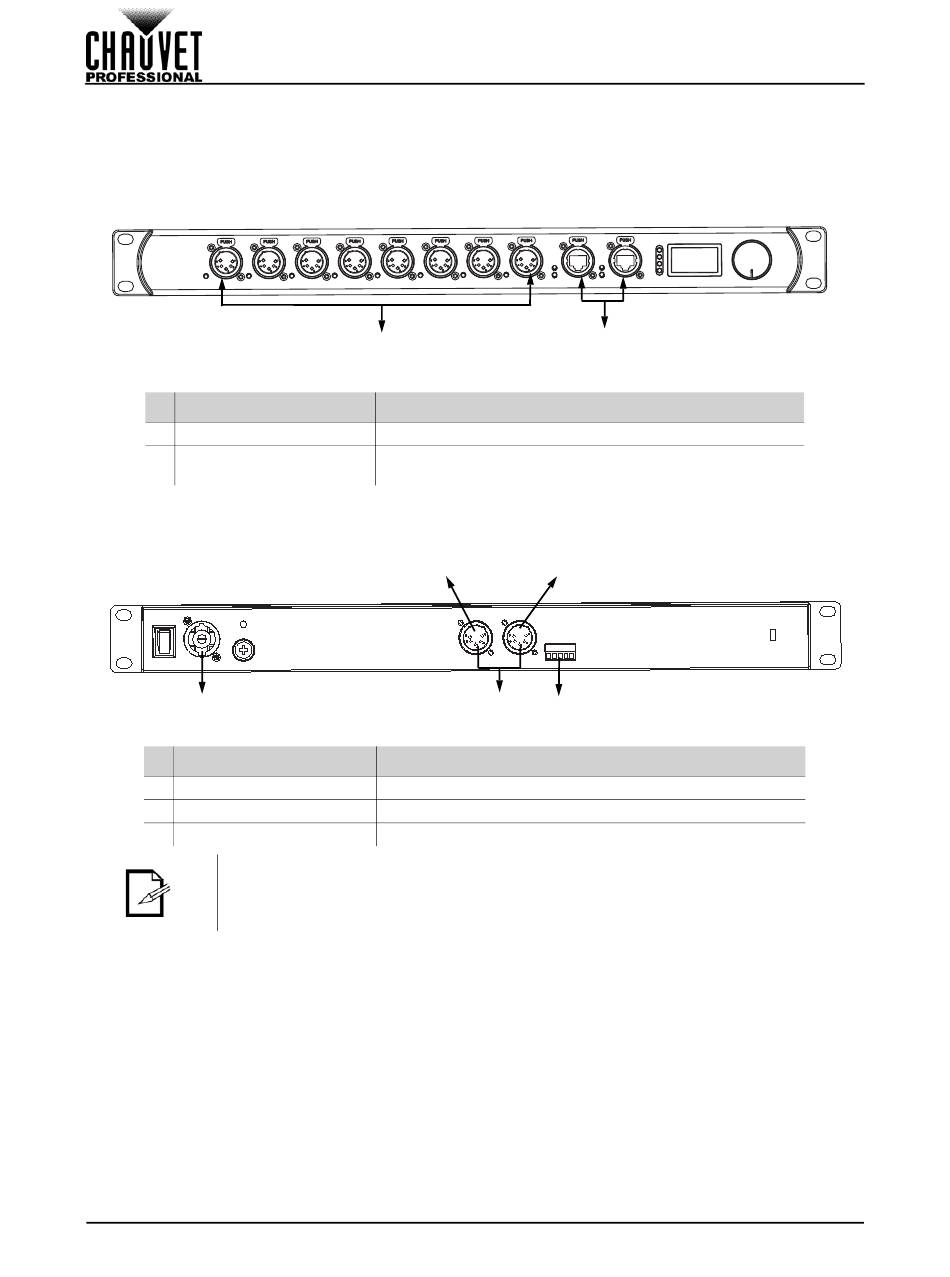

Signal Connection Diagrams

# C
ONNECTIONS
1 DMX Out
2 Art-Net™ Ethernet

Input Connections Diagram

2
# C
ONNECTIONS
1 DMX In
2 Neutrik® powerCON® In Power In
3 Phoenix Connector
•
•
7
1
P
URPOSE
For DMX controlled products
Link to an Art-Net™, sACN networks, and web server
access
Port A
P
URPOSE
DMX ports A and B.
To trigger recorded scenes
The Neutrik® etherCON® ports are through ports. Each port can be
either an input or an output port.
The DMX ports can only be input or output ports. There are 2 DMX In
ports and 8 DMX Out ports.
2
Port B
3
1
Net-X II User Manual Rev. 2
