ASSING AN OBJECT TO A GROUP
Each object can be assigned to a group in order to get parameter value
changes common to all objects that belong to the same group.

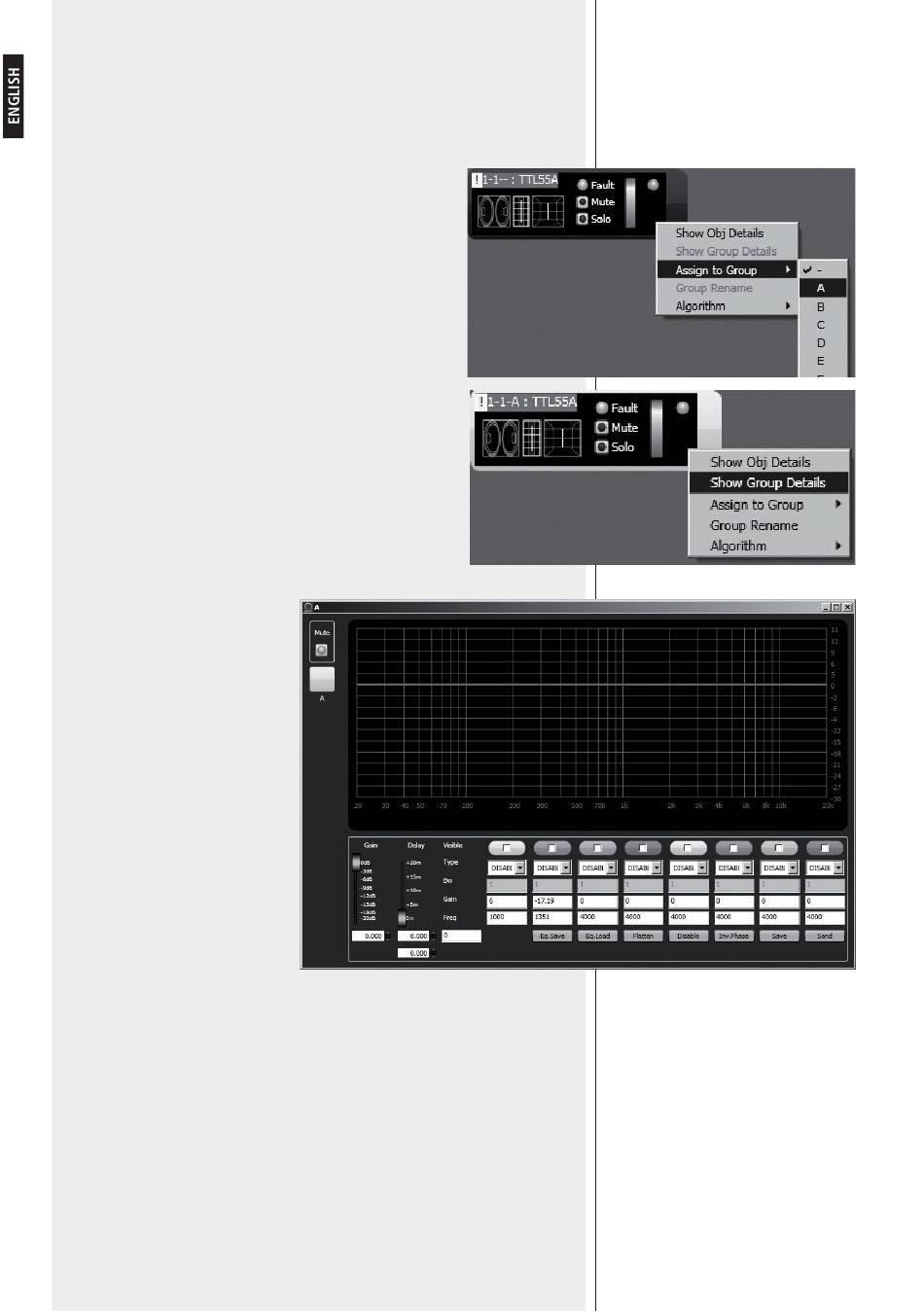

Right-click with the mouse on the object and choose
'Assign to Group', then the proper group (from A to
S, for example 'A').
After assigning an object to a group, its external
edge gets coloured and the group letter is indicated
after the subnet and the digital address (example:
1.1-A: TTL55-A).
Right-click again the object and now choose 'Show
Group Details' to open the common equalization
window (settings can be made in the same way as a
single object as long as assigned to a group).
The following screen
appears on the group.
GAIN: signal level
attenuation (value: from 0
to -20 dB).
DELAY: signal delay
setting, express in the
range of 0 + 20 metres
(that is the correspondent
distance). Note: the value
on the right of the distance
(in metres) is the sample
number.
Eq. SAVE: it allows saving current equalization in a file (*.rde),on
computer (a dialogue box opens to save the file).
Eq. LOAD: it allows opening an equalization file (*.rde) previously
saved on computer.
FLATTEN: it disables all filters (the frequency response gets 'flat').
DISABLE: it disables the equalization, but without changing filter
settings.
INVERTED PH: when selected, the signal phase is inverted.
