5 Mechanical installation

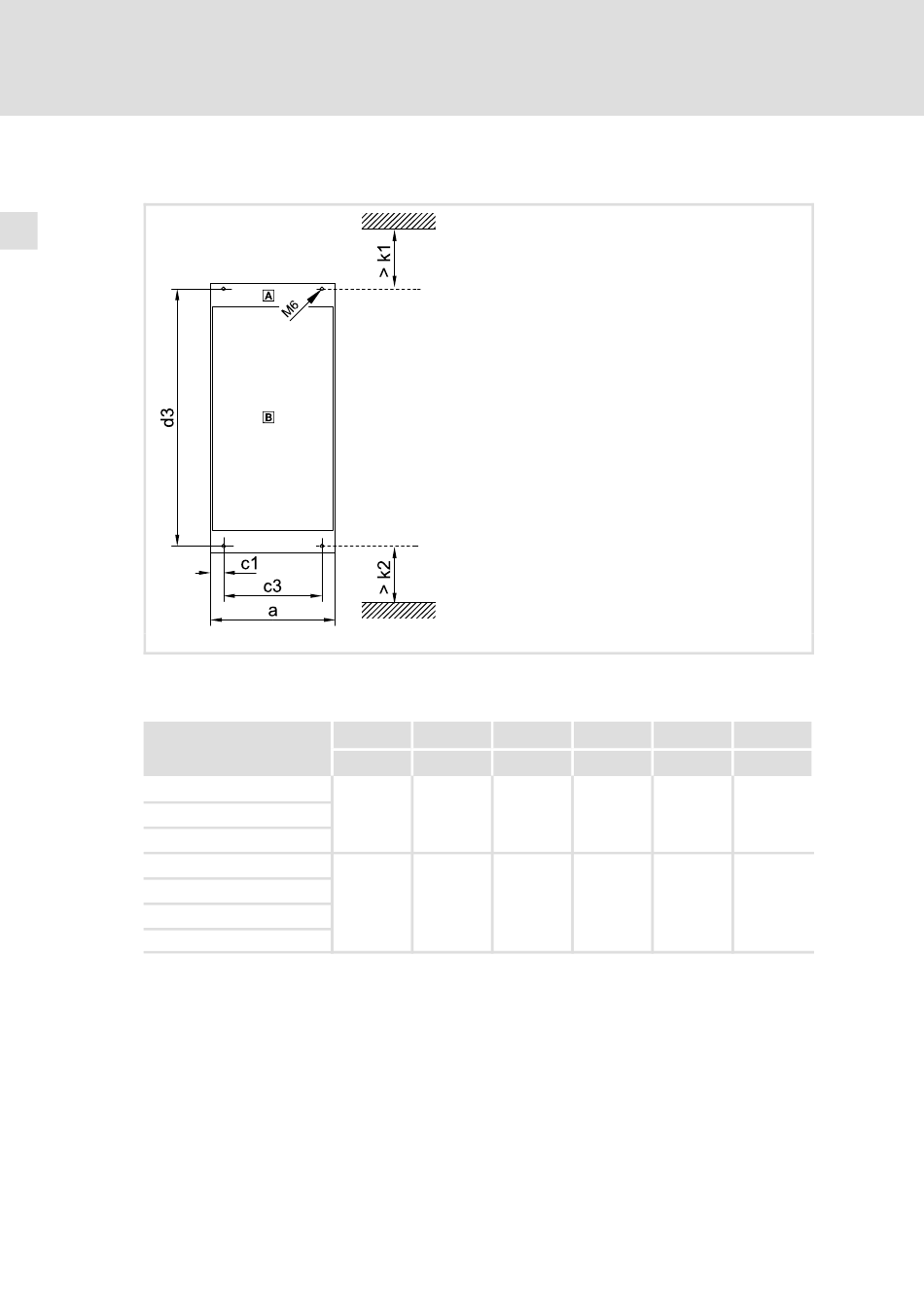

Standard mounting

5.1 Standard mounting
0
1
E84AZESM1834LD
E84AZESM2234LD
E84AZESM2234LDN001
E84AZESM3034LD
E84AZESM3734LD
E84AZESM4534LD
E84AZESM4534LDN001
42
Side−by−side filter
Standard device
a c1
[mm] [mm]
205 22.5
250 20
l
c3 d3 k1
[mm] [mm] [mm]
160 415 55
210 570 55
EDK84AZESxx DE/EN/FR/ES/IT 5.0
E84AZESx003
k2
[mm]
60
60
