Connecting Audio/Video Components

7 About connecting cords

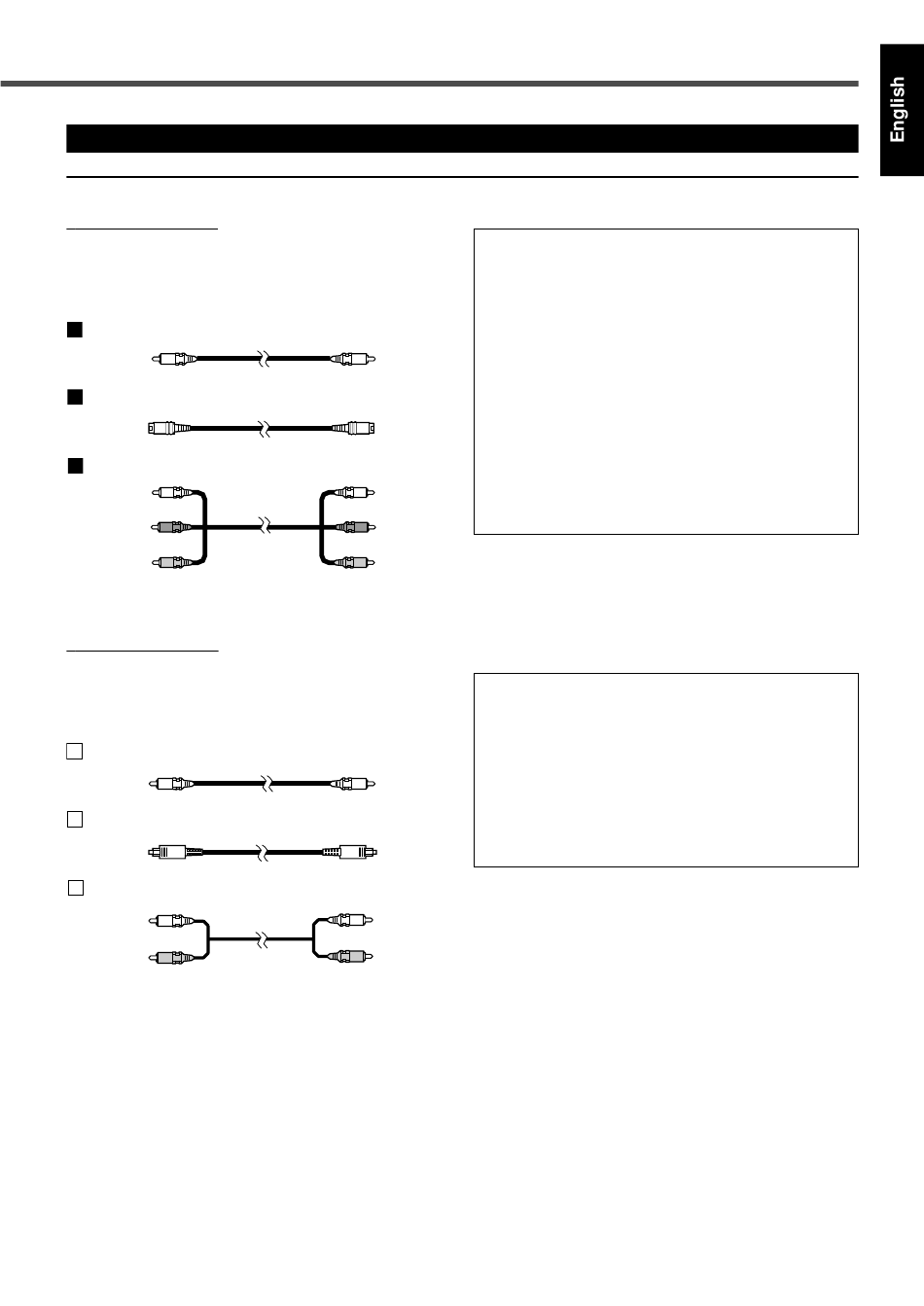

For video connections
The S-video cords and the component video cord are not
supplied with this unit.
Use the cords supplied with the other components or
purchase them at your dealer.
A Composite video cord (supplied)
B
S-video cord (not supplied)
C
Component video cord (not supplied)
Green
Blue
Red
For audio connections
Connect the external components to this unit with the audio
cords.
Use the cord supplied with the other components or
purchase them at your dealer.
A Digital coaxial cord (not supplied)
B
Optical digital cord (not supplied)
C
Audio cord (not supplied)
White
Red
Notes for video connection
• You can use composite video cord or S-video cord for
connecting the DBS tuner and VCR to this unit.
• You can use component video cord in addition to composite
video cord and S-video cord for connecting your TV to this unit.
• By using S-video cord or component video, you can get a better
picture quality—in the order: composite < S-video < component.
• To view the picture from DBS tuner or VCR on your TV, connect
your TV to this unit using the same type of cord for connecting
the DBS tuner or VCR to this unit.
• To view the picture from the built-in DVD player, connect the TV
to this unit using composite video cord, S-video cord, or
component video cord, then register the video output mode
correctly (see "Video output mode" on page 25).
• To enjoy the progressive video picture, connect the TV
compatible with the progressive video input using component
video cord, then change the scanning mode correctly (see
"Changing the Scanning Mode" on page 16).
Notes for digital connection
• When the unit is shipped from the factory, the DIGITAL IN
terminals are set for use with the following components:
– DIGITAL 1 (coaxial): For DBS tuner
– DIGITAL 2 (optical): For TV
• If you connect the CD recorder, change the digital input
(DIGITAL IN) terminal setting (see "Digital input (DIGITAL IN)
terminals" on page 25) and the source name (see "Changing the
Source Name" on page 13) correctly.
• Select the digital input mode correctly (see "Selecting the
Analog or Digital Input Mode" on page 14).
