Checking the conductivity display

The conductivity display of the LMI02 can be checked with the conductivity simulator for
LMIT08 (item no. 289190) or with a calibration box for multronic (item no. 255195). It is
also possible to check this by dipping the conductivity probe into a sample solution of
known conductivity.
The conductivity probe should be brought to 20°C in order to check the conductivity
display and the current output.
When using a simulator, the ↵ key can be pressed to show the uncompensated
CAUTION
conductivity value (a * symbol appears in front of the conductivity display). The current
output is also adjusted to the uncompensated value.
LMI02 With simulator for LMIT08
measuring
range Resistance value (label)
0... 20 mS/cm)
0...200 mS/cm)
LMI02 With simulator for Multronic
measuring
range Resistance value (label)
0... 20 mS/cm)
0...200 mS/cm)
The adjustment of the conductivity display is described in chapter
User's Manual.

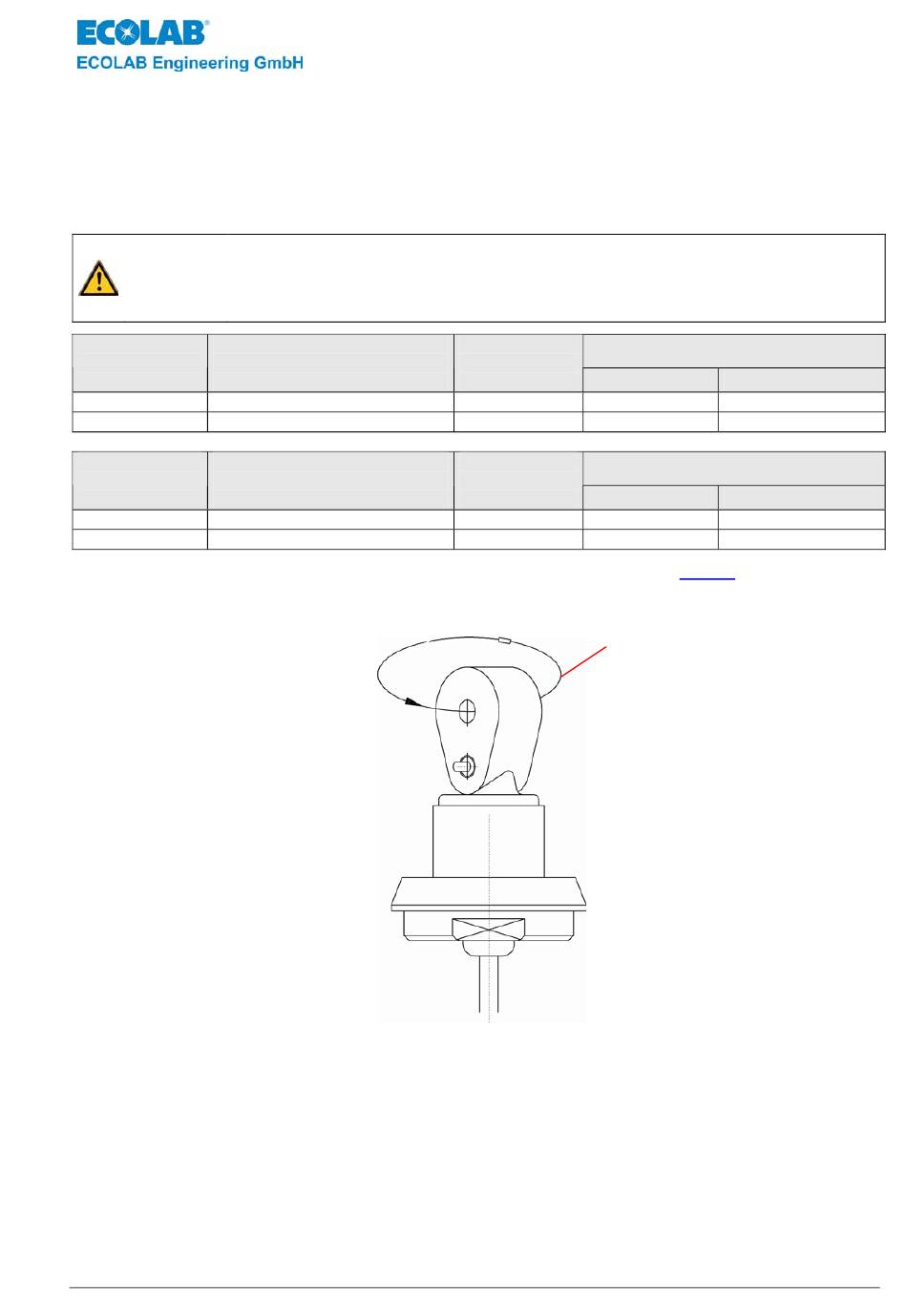

fig. 8.1
417102012_LMI02.doc
item no. 289190
383 Ω (20.0 mS)
38.3 Ω (200 mS)
item no. 255195
345 Ω (20.0 mS)
34.5 Ω (200 mS)
Conductivity
Current output on LMI02
display
0..20 mA
on LMI02
18.0 mS/cm) 18.0 mA
180 mS/cm) 18.0 mA
Conductivity
Current output on LMI02
display
0..20 mA
on LMI02
20.0 mS/cm) 20.0 mA
200 mS/cm) 20.0 mA
Loop resistance
(simulations resistance)
- 85 -
4..20 mA
18.4 mA
18.4 mA
4..20 mA
20 mA
20 mA
7.3.2.1 of the LMI02
