Device installation

6.1

Overview

Fig. 6.1
6.2

Mains connection

 Connect the mains connection lead (see section 6.1, pos. A) to the power supply
6.3

Connecting the measuring lead to the unit

 Insert the pH measuring lead's plug into connection
6.4

Connecting the measuring lead to the pH measuring chain

 Insert the pH measuring lead's plug into the socket on the pH measuring chain.
417101733_Ecotrans.doc
Pos.
Description
A
Mains connection
B
Standard signal output
C
Terminal board
D
pH sensor connection (SN6 socket)

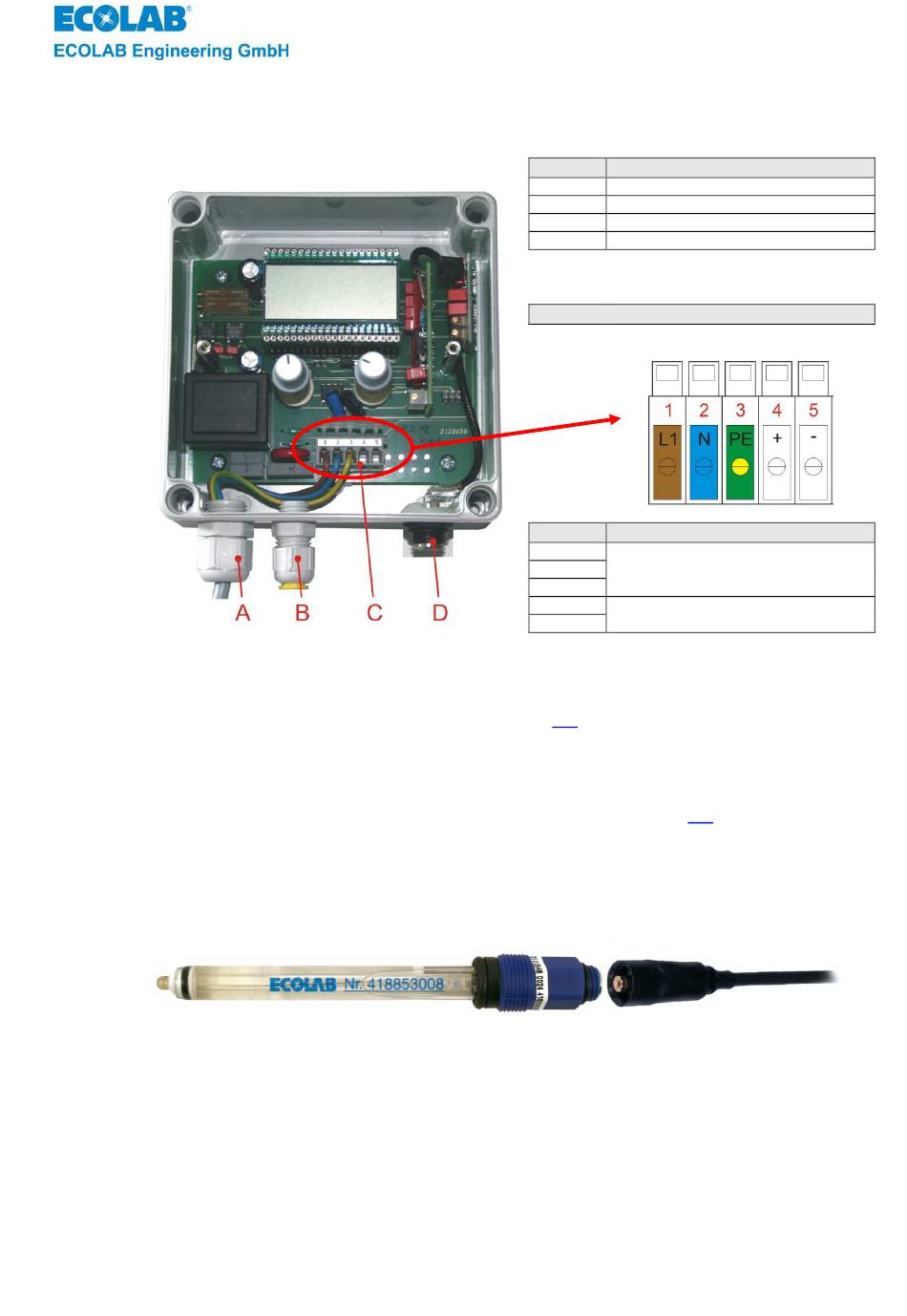

Connection/terminal diagram:
Fig. 6.2
Pos.
Description
1
2
MAINS, 230 V, AC, 2 V A
3
4
Output 4-20 mA
5
D
(see figure 6.1)
- 21 -
Rev. 2-03.10
