DMX value Function
Channel 4: gobo
0 – 7 no gobo
8 – 14 gobo 1
15 – 21 gobo 2
22 – 28 gobo 3
29 – 36 gobo 4
37 – 43 gobo 5
44 – 50 gobo 6
51 – 57 gobo 7
58 – 63 gobo 8
64 – 71 shaking effect without gobo
72 – 78 shaking effect with gobo 1
79 – 85 shaking effect with gobo 2
86 – 92 shaking effect with gobo 3
93 – 100 shaking effect with gobo 4
101 – 107 shaking effect with gobo 5
108 – 114 shaking effect with gobo 6
115 – 121 shaking effect with gobo 7
122 – 127 shaking effect with gobo 8
constant change of gobo:
slow → fast
128 – 255
Channel 5: colour
0 – 14 white
15 – 29 light green
30 – 44 yellow
45 – 59 purple
60 – 74 orange
75 – 89 light blue
90 – 104 dark green
105 – 119 warm yellow
120 – 127 dark blue
constant change of colour:
slow → fast
128 – 255
Channel 6: dimmer
dark → bright
0 – 255

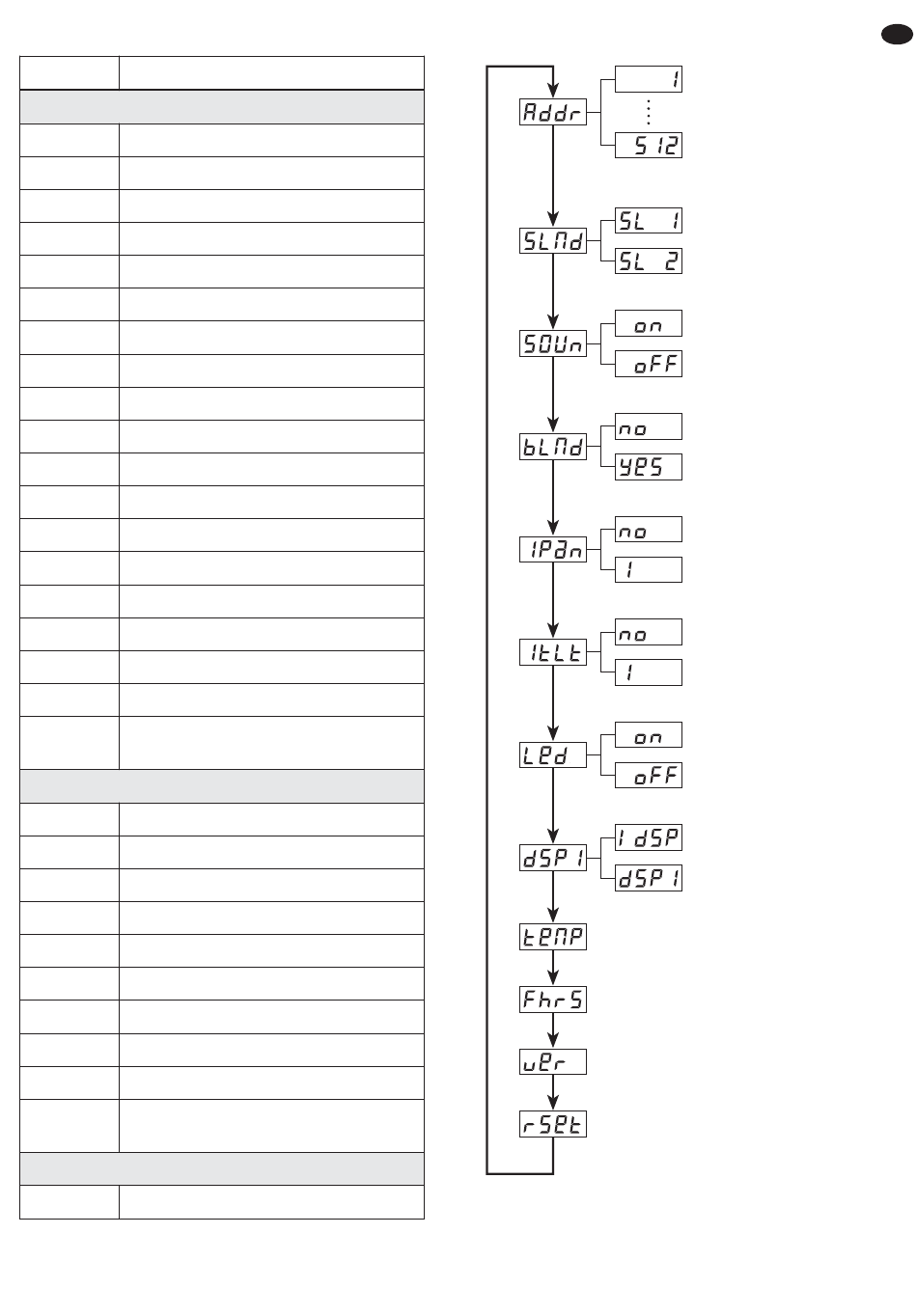

10.2 Menu structure

Temperature inside the unit
Operating hours
Firmware version
Reset
DMX start address
Slave mode
SLAVE 1
SLAVE 2
Music control
on
off
Blackout mode
off
on
Pan of mirror
normal
inverted
Tilt of mirror
normal
inverted
Display
on
off
Display
normal representation
turned by 180°
