APPLICATIONS
Cutting Various types of wood.
PRIOR TO OPERATION
1.
Power source
Ensure that the power source to be utilized
conforms to the power source requirements
specified on the product nameplate.
2.
Power switch
Ensure that the switch is in the OFF position. If the
plug is connected to a receptacle while the switch
is in the ON position, the power tool will start
operating immediately and can cause serious injury.
3.
Extension cord
When the work area is far away from the power
source, use an extension cord of sufficient
thickness and rated capacity. The extension cord
should be kept as short as practicable.
WARNING:
Damaged cord must be replaced or repaired.
4.
Check the receptacle
If the receptacle only loosely accepts the plug, the
receptacle must be repaired. Contact a licensed
electrician to make appropriate repairs.
If such a faulty receptacle is used, it may cause
overheating, resulting in a serious hazard.
5.
Confirming condition of the environment:
Confirm that the work site is placed under appropriate
conditions conforming to prescribed precautions.
6.

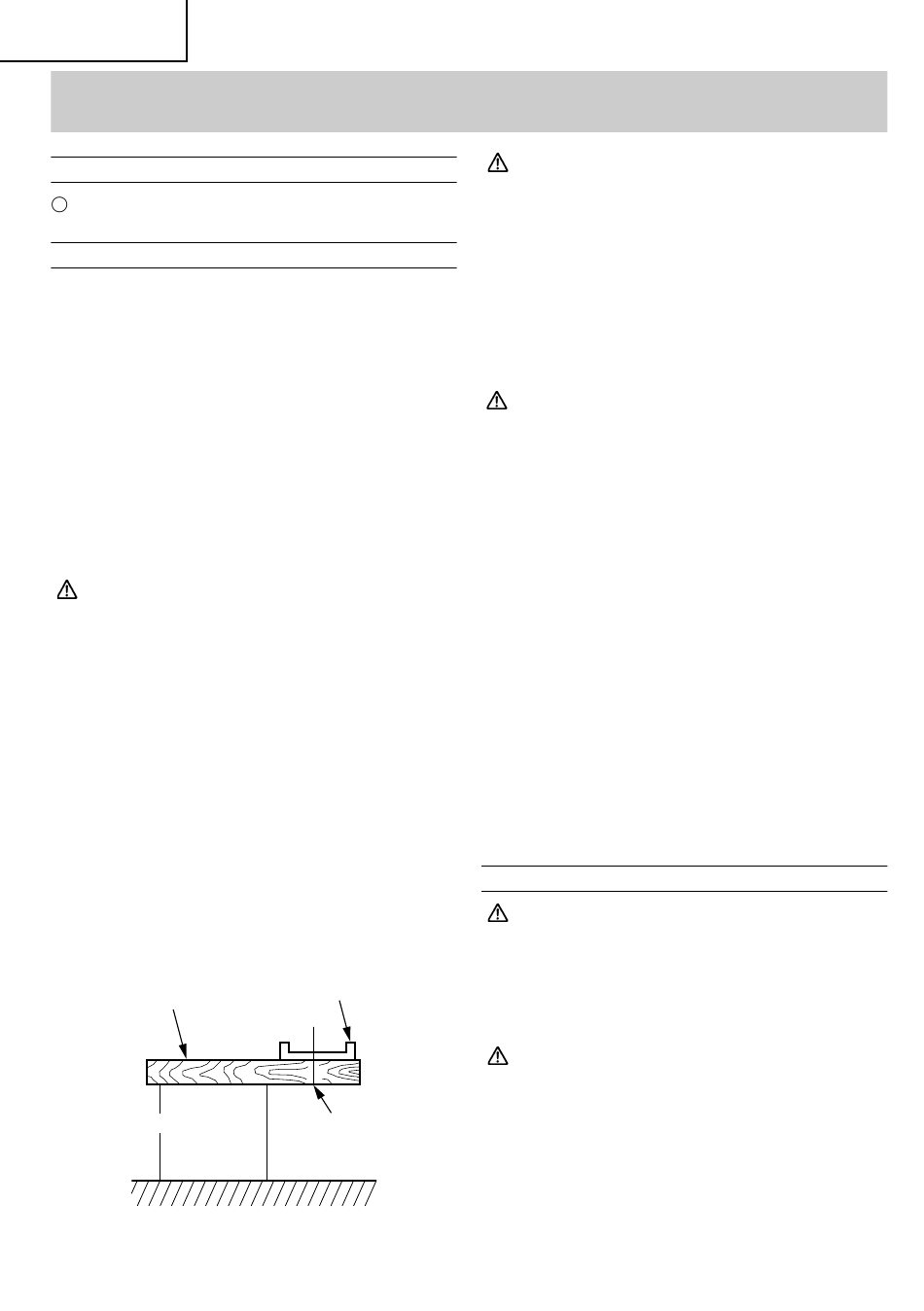

Prepare a wooden workbench (Fig. 2)
Since the saw blade will extend beyond the lower
surface of the work piece, place the work piece on
a workbench when cutting. If a square block is
utilized as a workbench, select level ground to
ensure it is properly stabilized. An unstable
workbench will result in hazardous operation.
Work piece
Workbench
8
ASSEMBLY AND OPERATION
Base
Saw blade
Fig. 2
CAUTION:
To avoid possible accident, always ensure that the
portion of work piece remaining after cutting is
securely anchored or held in position.
7.
Check if lever (A), wing bolt and knob are tightened.
If the knob to adjust cutting depth (Fig. 3) and lever
(A) and wing bolt to adjust angle of inclination (Fig.
4) are loose, injury can result. Make sure that they
are tightened securely.
8.
Check performance of safety cover
WARNING:
Make absolutely sure that the safety cover is not
fixed. Also, check and see if it can move smoothly.
If the saw blade is kept exposed injury can result.
The lower guard (refer to Fig. 1) serves to protect
your body from coming into contact with the saw
blade. Make absolutely certain that the cover
smoothly performs to cover the saw blade. If the
safety cover should not move smoothly, never use
it without repairing it.
In such a case, get in touch with the store where
you bought the circular saw or the HITACHI
Authorized Service Center for necessary repair.
9.
Eye protection
When you use the tool, make certain that you wear
eye protection.
10. Check if saw blade is tightened
Refer to [mounting and dismounting the saw
blade] in Page 12, and make sure that the
hexagonal head bolt is tightened securely.
ADJUSTING THE SAW PRIOR TO USE
WARNING:
To avoid serious accidents, ensure the switch is
in OFF position, and disconnect the plug from the
receptacle.
1.
Adjusting the cutting depth (Fig. 3)
WARNING:
If the knob is loose, injury can result. Tighten it
securely after adjustment.
To adjust cutting depth, loosen the knob and, while
holding the base with one hand, move the main
body up and down to obtain the prescribed cutting
depth. After adjusting to the prescribed cutting
depth, tighten the knob securely.
