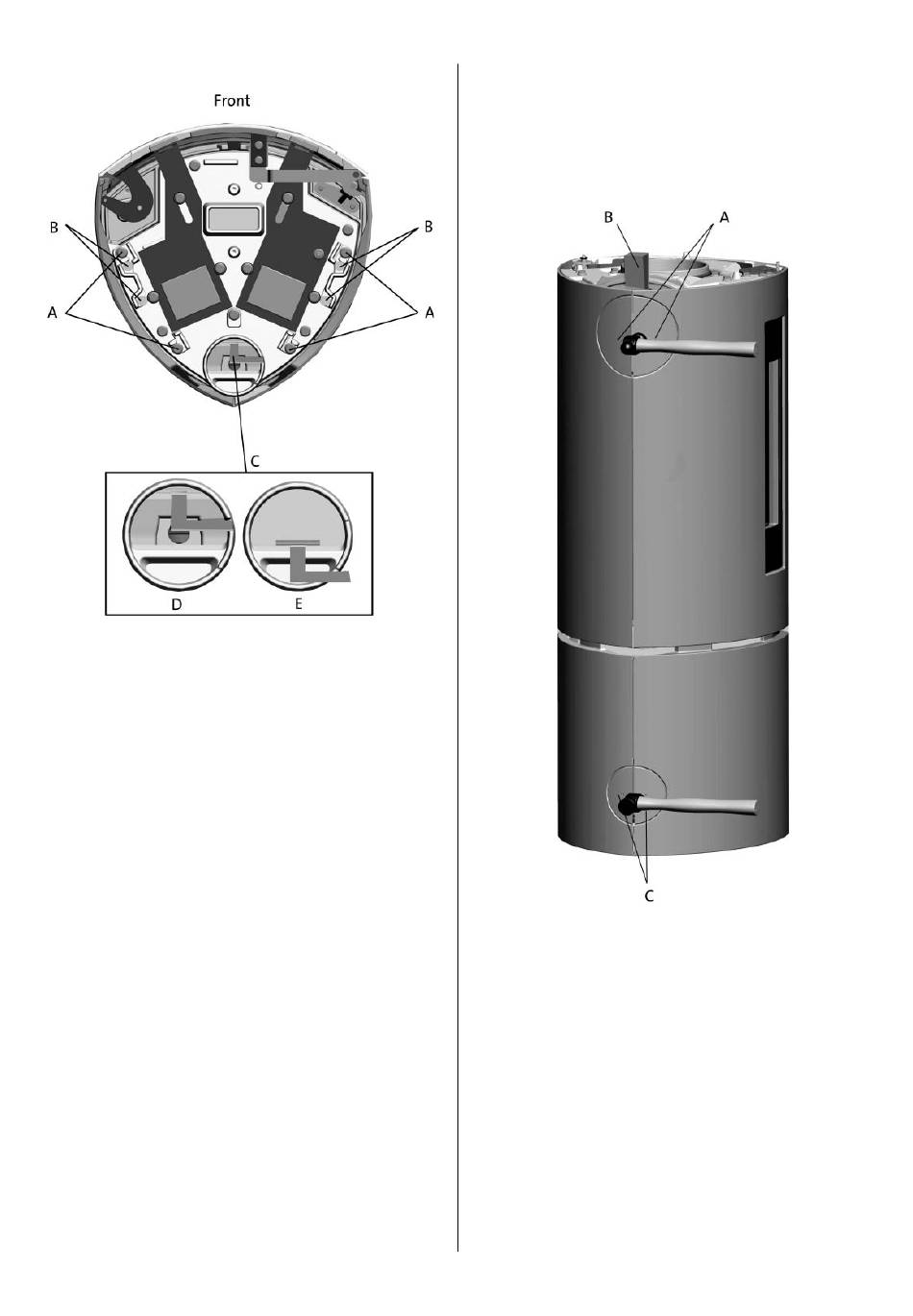

Fig. 4
8. If the glass décor set (optional extras) is to be used, the 4
recessed head screws on the bottom are removed (fig. 4B)
with the aid of the key included with the glass décor set.
4.2 Assembly
Jøtul F 371 - cast-iron base
N.B. If the flexible hose is to be connected through a hole in the
floor, the knock out covers are not knocked out/removed.
Fig. 5
1. If flexible hose, 100 mm diameter, for external air supply is
to be connected to the outlet under the burn chamber (fig. 4 C),
drill one hole (fig. 5 C) in each cut-out cover at the lower part
of the base and knock them out. N.B. Make sure the rear plate
(fig. 6 A) in the base is positioned, when the cut-out cover is
being knocked out.
ENGLISH
9
