WIRING CONNECTIONS
Be sure power to the operator is disconnected.

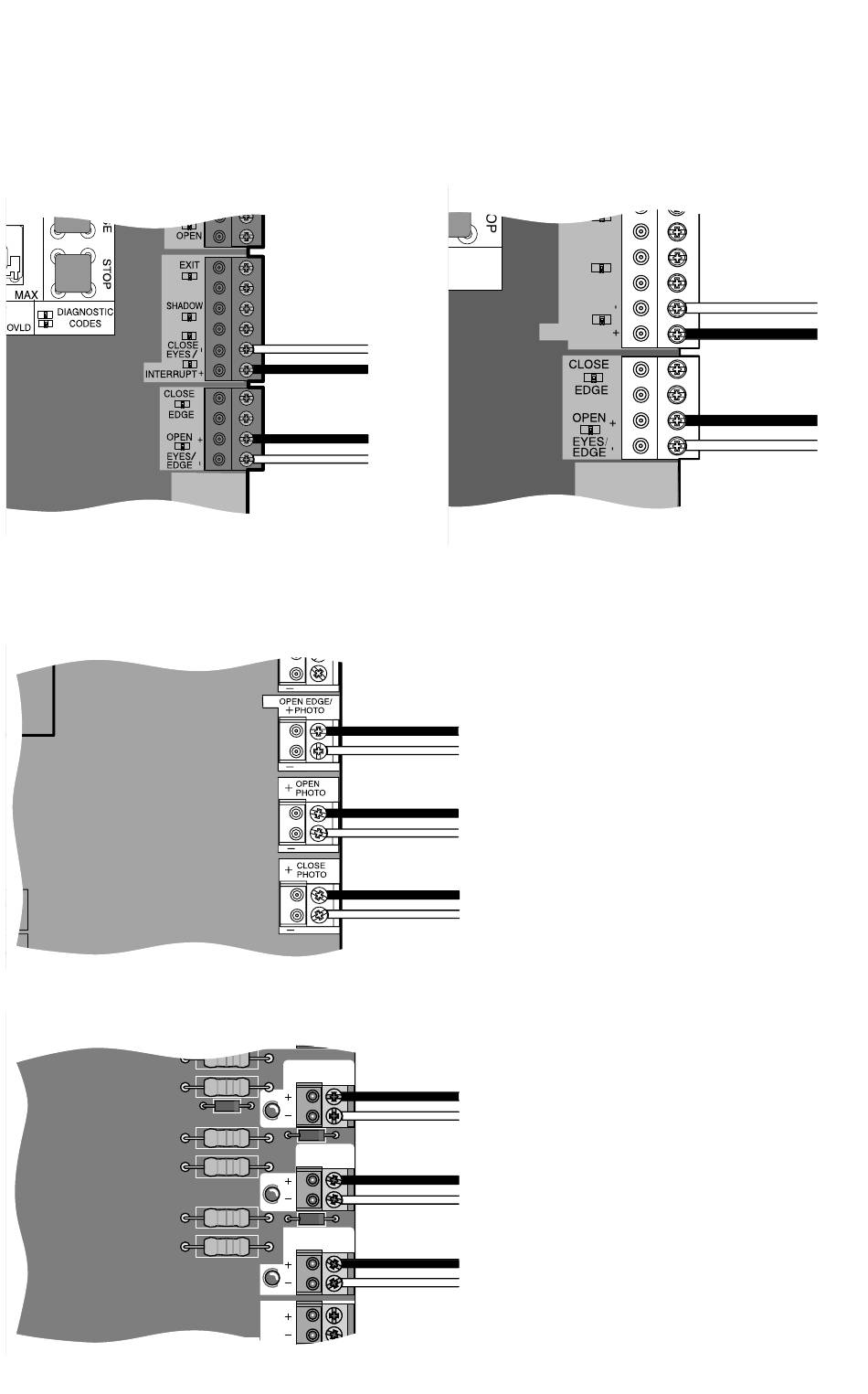

The photoelectric sensor is capable of receiving a 1/2" threaded conduit. Connect the photoelectric sensor
as illustrated below for your operator type. The wiring is polarity sensitive, connect the BLUE wire to the '-'
terminal and the BROWN wire to the '+' terminal.
MODELS CSL24V SERIES AND CSW24V SERIES
Control Board
MODELS LA412, RSW12V, AND RSL12V SERIES
Control Board
MODEL LA400 SERIES
Control Board
Sensor for CLOSE
cycle.
-
+
+
-
Sensor for OPEN
cycle.
R2Ø7
Z2Ø
R227
OPEN EDGE/
R224
Z22
R92
OPEN
R91
R94
CLOSE
R93
24V
SWITCHED
MODEL LA500 SERIES
GNOSTIC
CODES
+
Sensor for OPEN cycle.
-
+
Sensor for OPEN cycle.
-
+
Sensor for CLOSE cycle.
-
+
Sensor for OPEN cycle.
-
Z9
+
Sensor for OPEN cycle.
-
Z8
+
Sensor for CLOSE cycle.
-
7
EXIT
SHADOW
CLOSE
EYES/
INTERRUPT
Control Board
Sensor for CLOSE
cycle.
-
+
+
-
Sensor for OPEN
cycle.
