LiftMaster STAR 450-390 Guide Rapide

SPECIFICATIONS
SUPPLY VOLTAGE: 12-24 VOLTS AC OR DC
OPERATING CURRENT: 250 mA MAXIMUM
OPERATING TEMP RANGE: -40 TO +149F
FREQUENCY: 390 MHz STAR450 - 390
315 MHz STAR450 - 315
RELAY CONTACT RATING: 1 AMP @ 24 VOLTS AC OR DC
INSTALLATION
1. Select a convenient location near your device to be controlled
by the STAR450.
2. Mount the STAR450 in the "Line-Of-Sight" of the intended
transmitting location.
NOTE: Avoid mounting the STAR450 in or on metallic enclosures.
See Remote Antenna Mounting for proper installation.
3. Mount back plate to desired surface using hardware #6
(not provided). Hardware used will depend on mounting
application (refer to Figure 1 for receiver mounting hole
locations).
4. Wire electrical connections to unit. Snap receiver to back plate.
5. Install the provided antenna onto the receiver antenna
connector by screwing the connector clockwise.
6. Slide the seal boot down to meet the o-ring, covering the
antenna hardware.
Digital Display
Displays remote control location
numbers when programming or
access is granted. Also displays
user prompts and messages.
Delete Key
Features
Used to delete a remote control
from the selected memory location
Add Key
Used to enter remote controls
and enter RAPID LEARN
Star Key
Used to enter advanced functions:
✱, 1- Last Remote Control Received
✱, 2- No. Of Unused Memory Locations
✱, 3- No. Of Occupied Memory Locations
✱, 4- No. Of Blocked Remote Control Locations
✱, 5- First Blocked Remote Control Location
✱, 7- Software Ver. #
✱, 0- Audible Diagnostics Off/On
(-40 TO +65C)
mode.
TM
To prevent possible SERIOUS INJURY or DEATH from
electrocution:
• Be sure power is not connected BEFORE installing the receiver.
To prevent possible SERIOUS INJURY or DEATH from a moving
gate or garage door:
• ALWAYS keep remote controls out of reach of children. NEVER
permit children to operate, or play with remote controls.
• Activate gate or door ONLY when it can be seen clearly, is
properly adjusted, and there are no obstructions to door travel.
• ALWAYS keep gate or garage door in sight until completely
closed. NEVER permit anyone to cross path of moving gate or
door.
WARNING: This product can expose you to chemicals
including lead, which are known to the State of California to
cause cancer or birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
Remote Antenna Mounting:
Use the optional 86LM antenna extension kit to mount the remote
antenna as high and far from metal as possible for best radio
range (Figure 2). Contact technical support at: 1-800-528-2806 to
order the model 86LM.
Add Delete Block
1 2 3
5
4 6
8
7 9
0
#
*
Pound Key
Used as an esc or exit key for all functions
or modes..
1

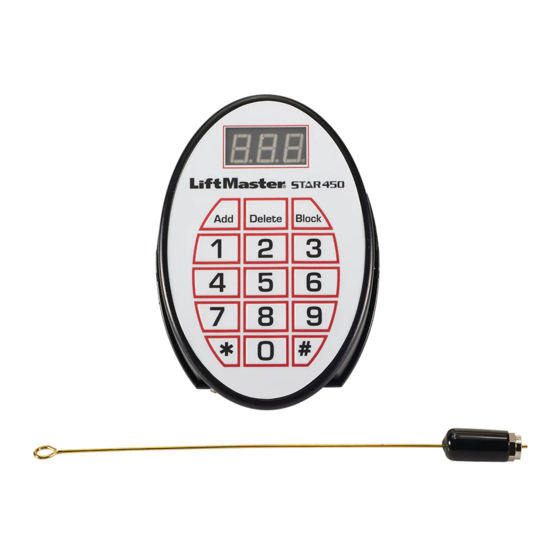

WIRELESS ACCESS
CONTROL RECEIVER
STAR
STAR
Power Indicator
Scrolling dashes on digital display when
ac or dc power is applied to the unit.
Antenna Connection
For connection to the direct antenna
or the antenna extension kit.
Block Key
Used to block the receiver from granting access to
the selected remote control. Remote control remains
in memory, and may be unblocked in the future.
Numeric Keypad
Used for programming and querying
remote control locations. Also used to
enter advanced functions.
450-390
TM
450-315
TM
