COMMERCIAL DOOR APPLICATION
INSTALLATION

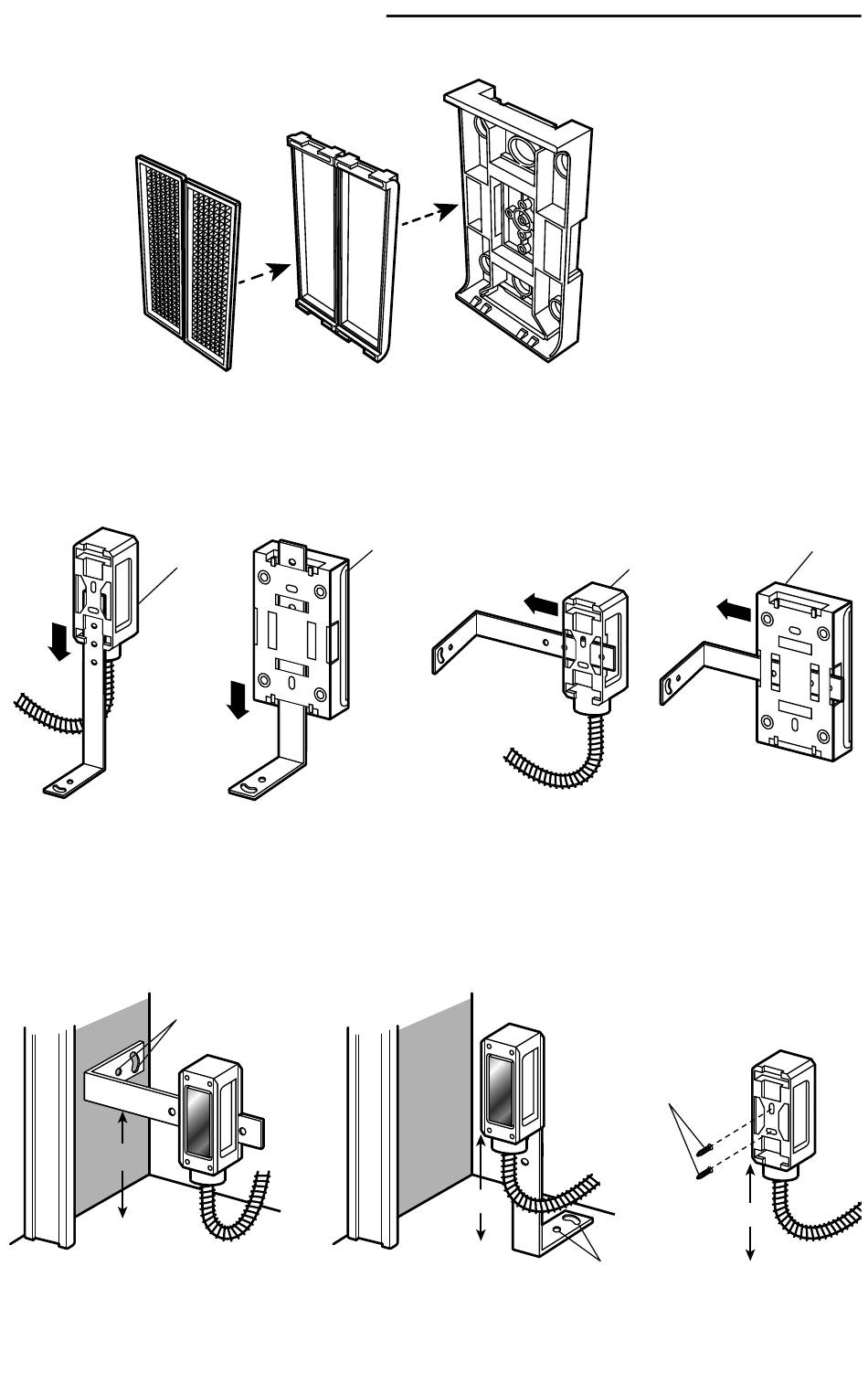

1. Assemble refl ector.
2. Slide the photoelectric sensor and the refl ector onto the mounting brackets and secure with self-tapping
screws provided.
FLOOR MOUNT
Photoelectric
Sensor
3. Attach mounting bracket to solid surface with hardware (not provided).
NOTE:
Track mounting is not recommended.
WALL MOUNT
6"
Hardware
(Not provided)
WALL MOUNT
Refl ector
FLOOR MOUNT
6"
3
Photoelectric
Sensor
DIRECT MOUNT
(WITHOUT MOUNTING BRACKET)
Hardware
(Not provided)
6"
Hardware
(Not provided)
Refl ector
