WIRING CONNECTIONS

Be sure power to the operator is disconnected. Do not run control wiring in the same conduit
with AC power.
The wire cable is intended to aid in installation to either a junction box on the wall or can be routed through
the control station mounted next to the door allowing the wires to run in the same conduit as the controls. The
photoelectric sensor also is capable of receiving a 1/2" thread conduit.

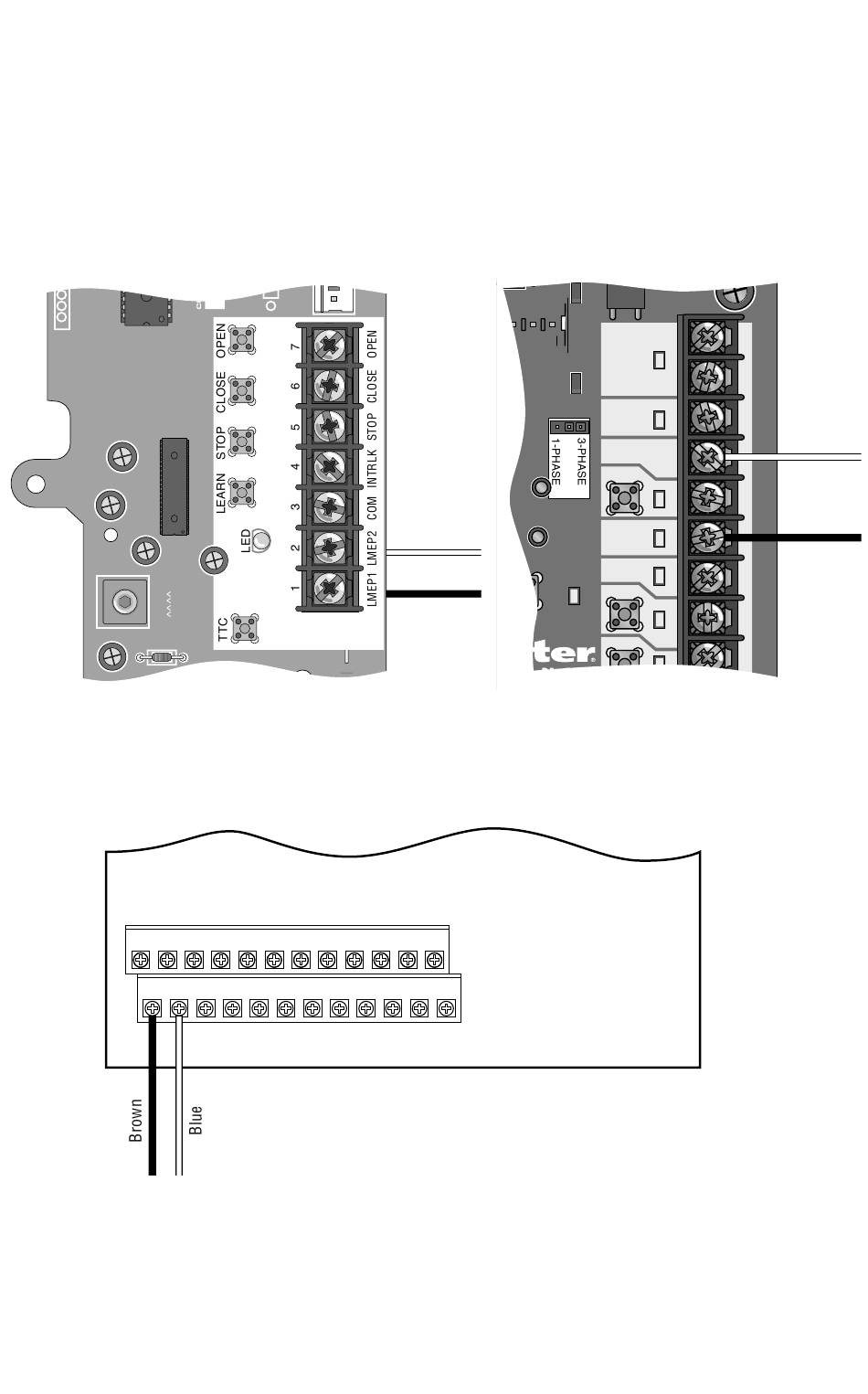

Connect the photoelectric sensor as illustrated below for your operator type. The wiring is polarity sensitive so
make certain to wire as indicated below.
MEDIUM DUTY LOGIC
COMMERCIAL DOOR OPERATORS MODELS FDC, FDCL, FDOA, AND FDOB
13 14 15 16 17 18 19 20 21 22 23 24
1 2 3 4 5 6 7 8 9 10 11 12
Control Board
J2
LOGIC 4
Blue
TTC TIMER
ENABLE
Brown
3
4
24VAC
POWER
24VAC
TIMER
DEFEAT
COMMON
MAS
LMEP:
EDGE:
OPEN
CLOSE
Control Board
Control Board
Blue
Brown
