START-S6XL BLOCK

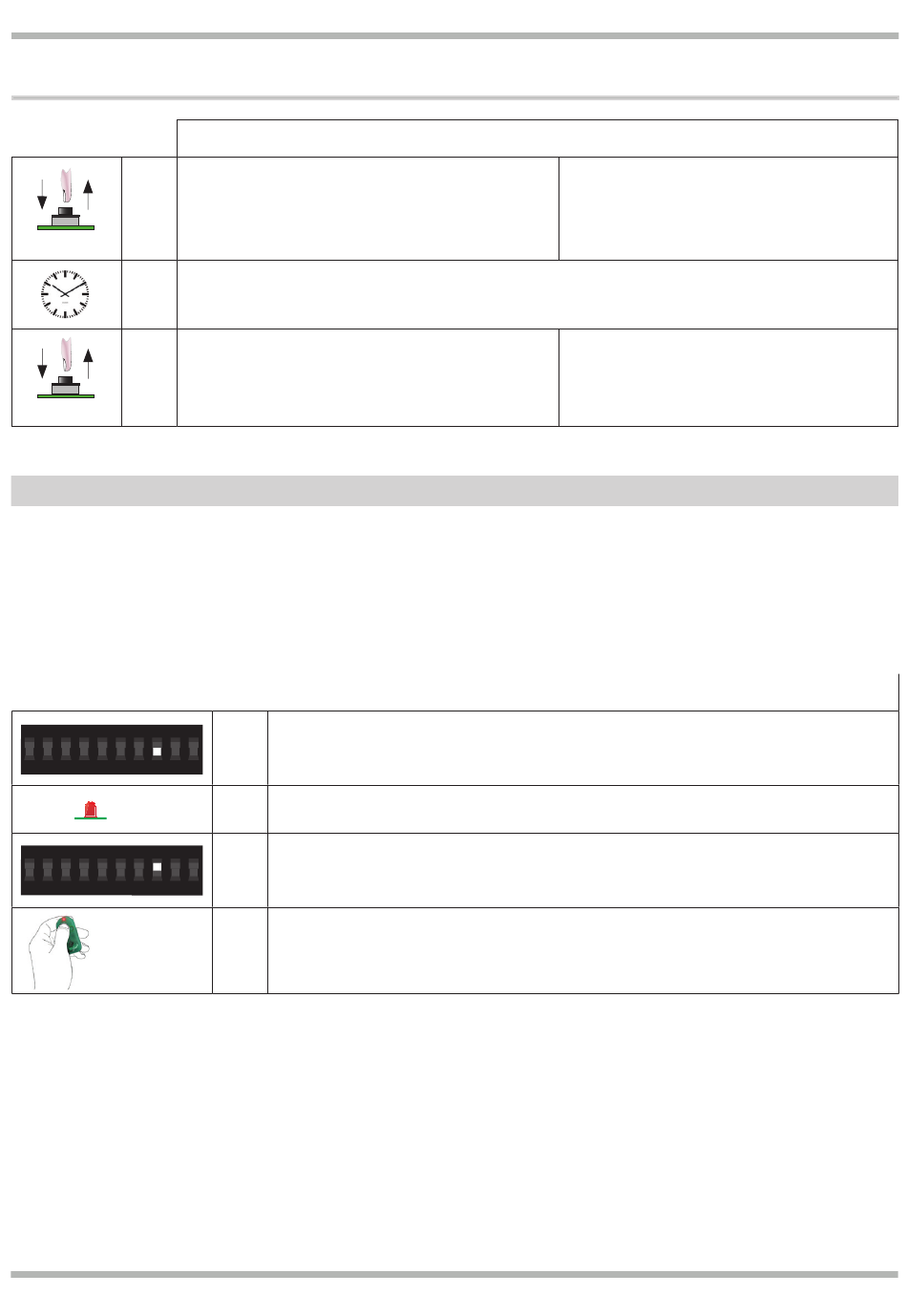

8.4 Time learning: pause (fastest way)
1
TIMES
2
TIMES
9 Instruction for TEST
The TEST function is compatible with devices with slow reponse ( for example TRANSCEIVER) so when those
devices are available the response time can be slower. You can test the devices in the STOP input.
Follow this procedure to know if some devices connected ot the inputs FOTO, FOTOSTOP (photocell B) and
STOP are under TEST.
Connect for the TEST
ON CTS
1 2 3 4 5 6 7 8 9
LED
ON CTS
1 2 3 4 5 6 7 8 9
START
Now the control unit check ethe devices under TEST and the depart of the doors can be delayed
The gate is in PAUSE
Press and release the TIMES button
Let the new pause time run...
Press and release the TIMES button
1
When the control is switched OFF, put in OFF dip 8 of DIP A
10
2
Power the control unit and wait the standard fl ash of the Led
3
Put in ON DIP 8 of DIP A
10
Let the gate open with a START
4
commande or the time learning if necessary
The L.E.D. lights for opening and
closing are witched ON
The gate CLOSES.
End of the fast learning time and
PAUSE TIME.
