Alternatively, the safety socket can be secured using the two
clips.

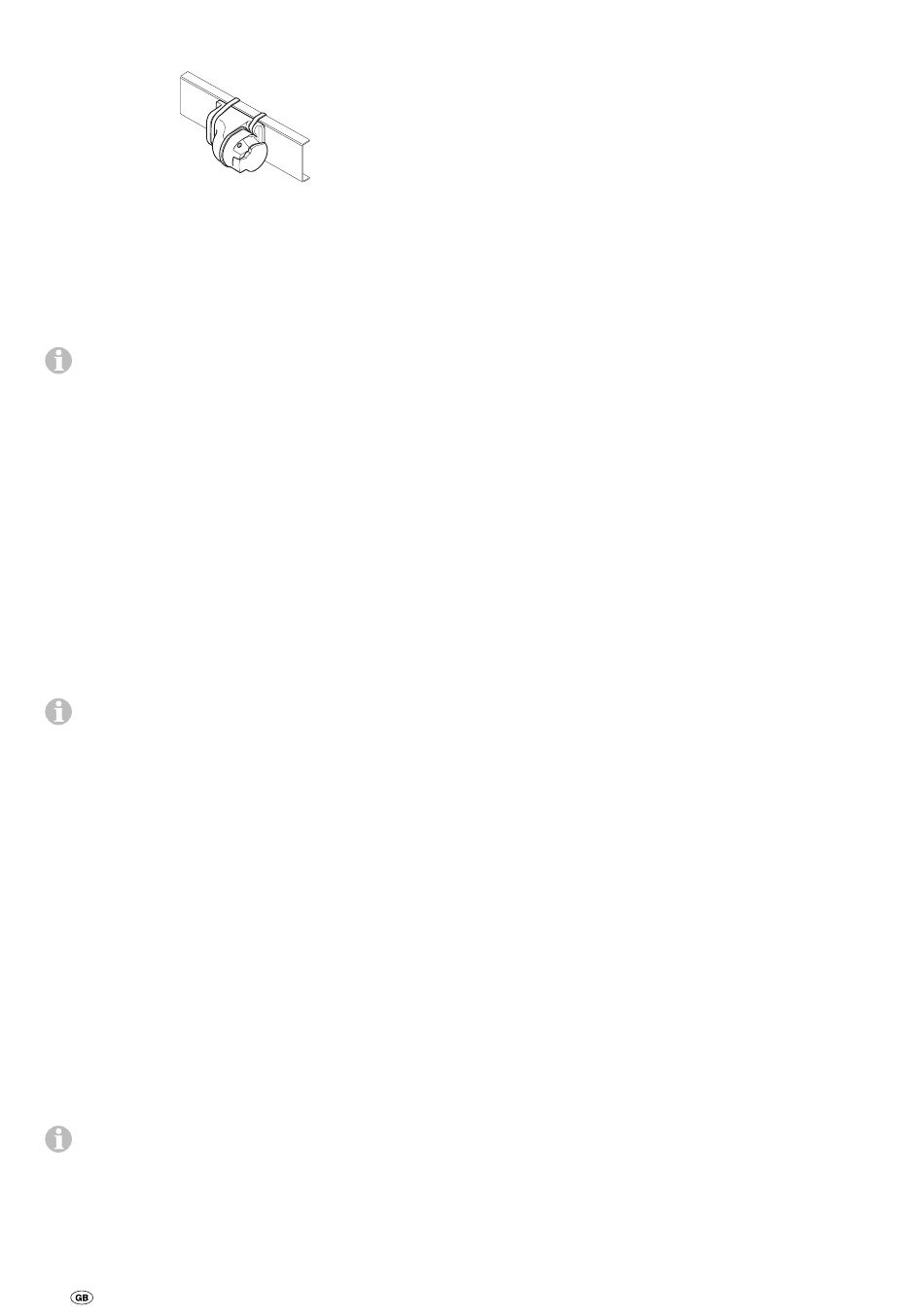

Figure 37
Route one wire to the control unit (shorten if necessary),
crimp on a spade connector and connect in accordance with
the connecting diagram.
Route second wire to control unit (shorten if necessary), crimp
on ring eyelet and screw to negative battery connection in ac-
cordance with connecting diagram.
The connection to the control unit must be made in the fol-
lowing order: nut, negative battery connection ring eyelet,
nut, safety socket cable ring eyelet, nut.
Re-check whether all cables are correctly connected, attached
using the provided clips and cannot chafe.

Function check

Check whether the battery is fully charged for operating the
Mover®.
Position the caravan on open, level ground and apply the
parking brake. The drive rollers must not be in contact with
the wheels and the corner jacks must be raised.
Connect the battery terminals to the battery. Check that all
cables are securely attached and not hot, and that there are
no signs of short circuits etc.
Plug the 13-pin connector into the safety socket.
If there is a fault in both caravan brake lights, the power
circuit of the safety socket is not closed. In this case, it is
not possible to operate the Mover®.
Move slide switch on remote control to the "On" ❙ position.
This switches on the remote control, and the green LED
flashes in combination with the audio signal for approx. 5 sec-
onds until the control unit is ready for use. If LED does not
illuminate, check polarity and condition of batteries in remote
control. The remote control switches itself off after about
2 minutes if no buttons are pressed.
Check that neither drive motor is running. With the remote
control switched on, press the "Forwards" button. Both drive
motors should now move forwards.
Engage drive rollers using remote control.
Ensure that there no obstacles around the caravan, release
the parking brake and switch on the remote control. Now
check all functions several times in accordance with the oper-
ating instructions.
Apply caravan parking brake. Disengage the drive rollers and
move the remote control slide switch to "Off"  in order to
switch off the remote control and the Mover®. Re-check dis-
tance between drive rollers and tyres. Re-adjust if necessary.
The distance between the disengaged drive rollers
and tyres is 20 mm.
28

Warnings

The installer or vehicle owner must apply the yellow sticker
with the warning information, which is enclosed with the ap-
pliance, in a location in the vehicle where it is clearly visible
to all users (e.g. the wardrobe door). Missing stickers can be
requested from Truma.
