6. Product information

6.1 How it works

The linear unit is used for linear processing and positioning. The slides are driven into their posi-
tions by a tapped spindle or toothed belt drive. This motion can be effected manually with a
handwheel or by an electric drive. The slides are guided without any play on steel guide shafts
with rollers.

6.2 Designs/Guidance concept

This linear unit is available in the designs and versions given here.
•
After receiving this linear unit, check the device for possible damage and missing components.
•
Notify RK Rose+Krieger GmbH of any faults found immediately.
The linear unit is delivered ready for operation, but without a controller and without accessories.

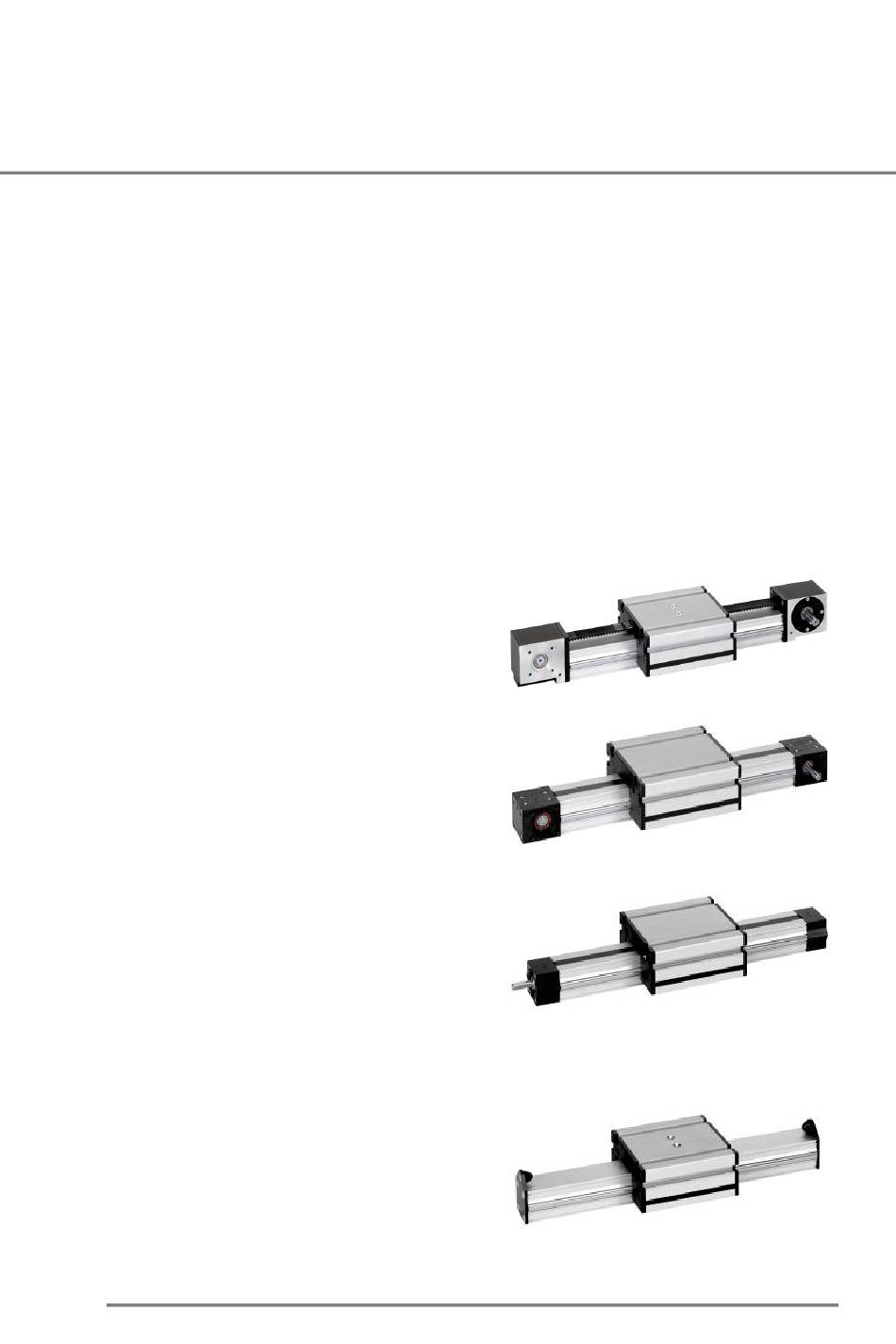

6.2.1 Designs

PLZ-II Linear unit design with toothed belt
PLZ-II Linear unit design with internal toothed belt
PLS-II Linear unit design with spindle
(trapezoidal threaded spindle, recirculating ball drive)
Spindle versions:
•
Right-hand thread
•
Left-hand thread
•
Right/left hand thread
•
Divided spindle
PL-II Linear unit design without drive
48
