Installation Instructions

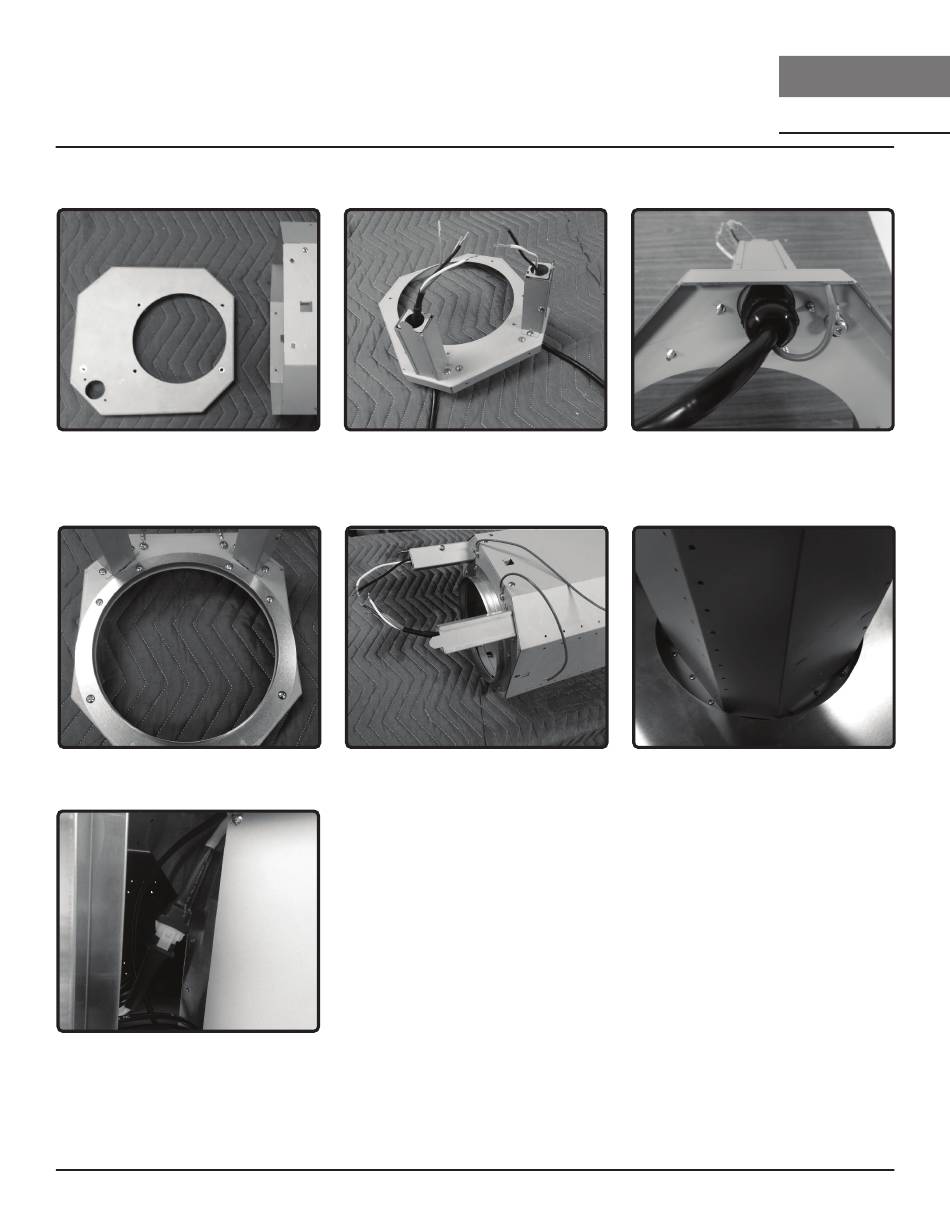

Remote Blower Preparation

1. Remove internal blower flange
from motor housing by (6) screws.
4. Secure remote blower 8" round
collar to remote blower flange by
(8) M4*8 screws.
7. Connect 6 pin molex connector from
remote blower wiring box to 6 pin
molex connector from control box.
Connect 2 pin plug from AC power
cable to 2 pin plug from control box.
Secure cables to hood interior with
zip ties and zip tie holders.
14
2. Secure AC power box and remove
blower wiring box to remote
blower flange by (2) M4*8 screws
each.
5. Secure remote blower flange to
motor housing using (6) screws
previously removed from step 1.
NOTE: For instructions on mounting
the remote blower, please refer to
the CBE-1000 or PBN-1000A remote
blower manual included in the remote
blower packaging or on our website at
www.zephyronline.com
Trapeze Use, Care, and Installation Guide
D E S I G N E R
3. Secure AC power ground wire
and remote blower ground wire
to underside of remote blower
flange by (1) 3/16*3/8 screw and
(1) washer each.
6. Secure motor housing to hood
body by (12) M4*8 screws.
