Installation and connection (continued)
Installing the transducer
NOTICE!
Interference in function
Improper installation can compromise the function of the
transducer and result in increased wear.
► Only vertical mounting from above is permitted!
► The mounting surface of the transducer must make
full contact with the supporting surface and be
perfectly sealed through the use of a seal and tri-
clamp.
► Mounting must be done in a manner where the rod
cannot touch the container wall. Deflection of the
rod to the side, e.g. through flow currents, must
be prevented by a suitable, cleanable bracket or
appropriate positioning in the tank.
1. Insert suitable seal (see Figure 4-4).
2. Place the transducer on the mounting surface, so it
makes full contact and perfectly seals the hole (see
Figure 4-5).
3. Fasten the transducer with a 1 1/2" tri-clamp (see
Figure 4-6).
8 english

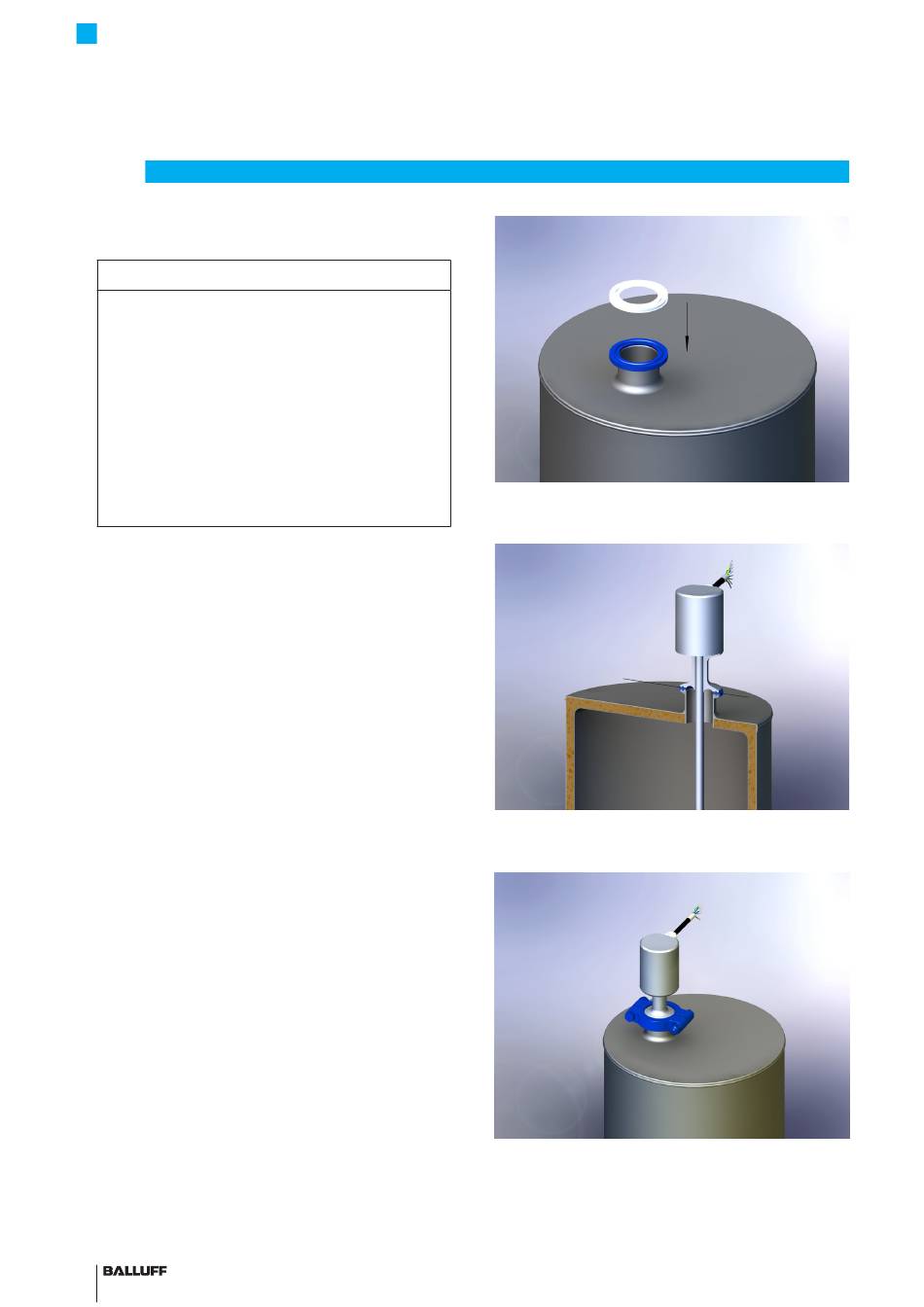

Fig. 4-4: Inserting the seal
Mounting surface
Fig. 4-5: Installing the BTL
Fig. 4-6: Fastening the BTL with a 1 1/2" tri-clamp
