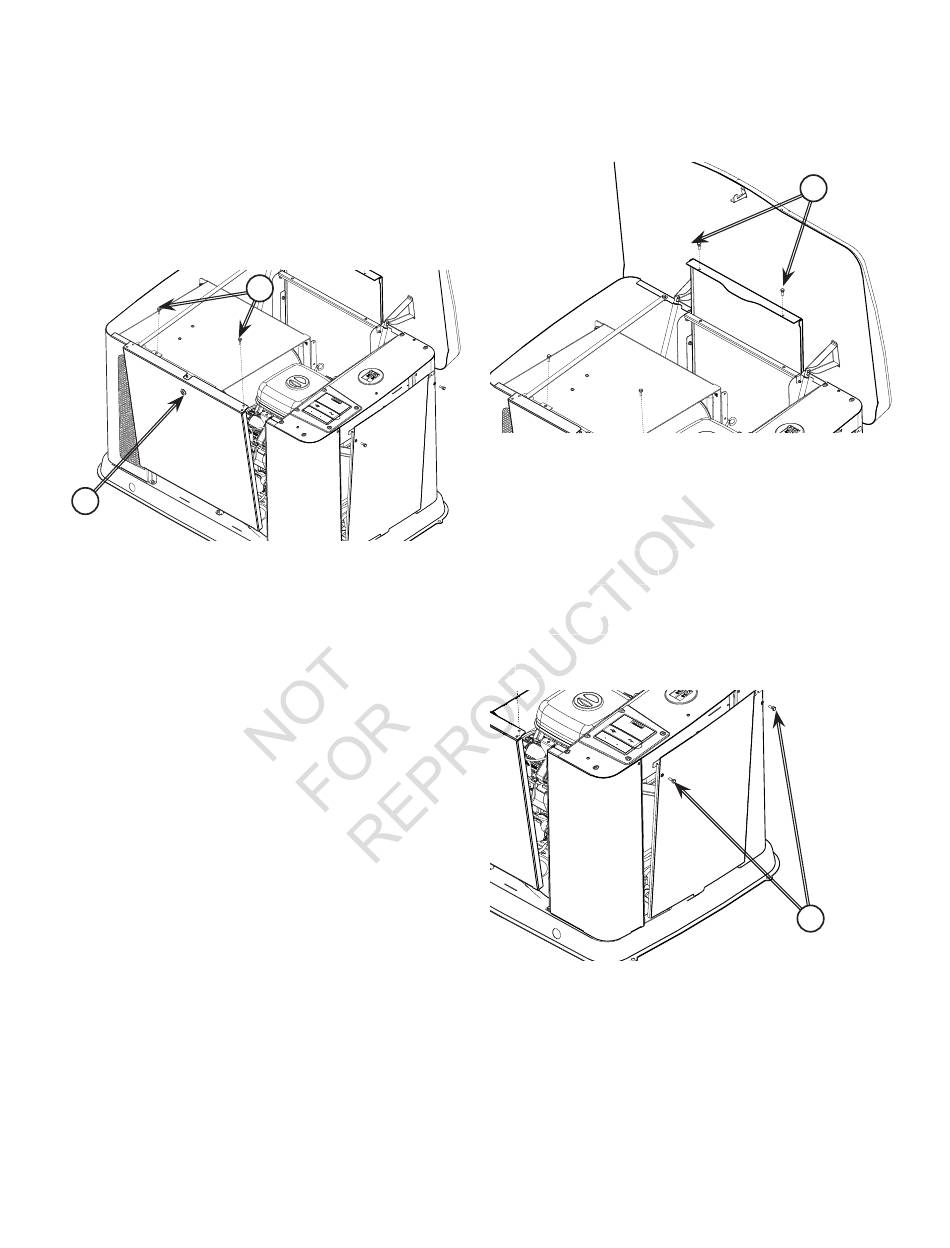

To open roof:
1. Insert key into lock (A) of front panel. Gently push
down on roof above the lock to aid in turning the key.
Turn key one quarter turn clockwise.
2. Lift roof to the open position.
To remove front panel:
1. Remove the two bolts (B) that secure the panel to the unit.
2. Lift panel to remove from unit.
A
To secure front panel:
1. Place panel in unit.
2. Secure the panel with two bolts.
14
B
To remove rear panel:
1. Ensure the roof is in the open position.
2. Remove the two bolts (C) that secure the panel to the
unit.
3. Lift panel to remove from unit.
To secure rear panel:
1. Slide panel into place on unit. ce on unit e on unit
2. Secure the panel with two bolts. el with two b with two
To remove battery panel: ery panel: ery panel:
1. Ensure the roof is in the open position. the roof is i the roof is i
2. Remove the two bolts (D) that secure the panel to the move the t move the two
un unit. unit.
3. Lift up on panel and remove. 3. 3. Lift up o Lift up o
To secure battery panel:
1. Place panel in unit.
2. Secure the panel with two bolts.
C
D
