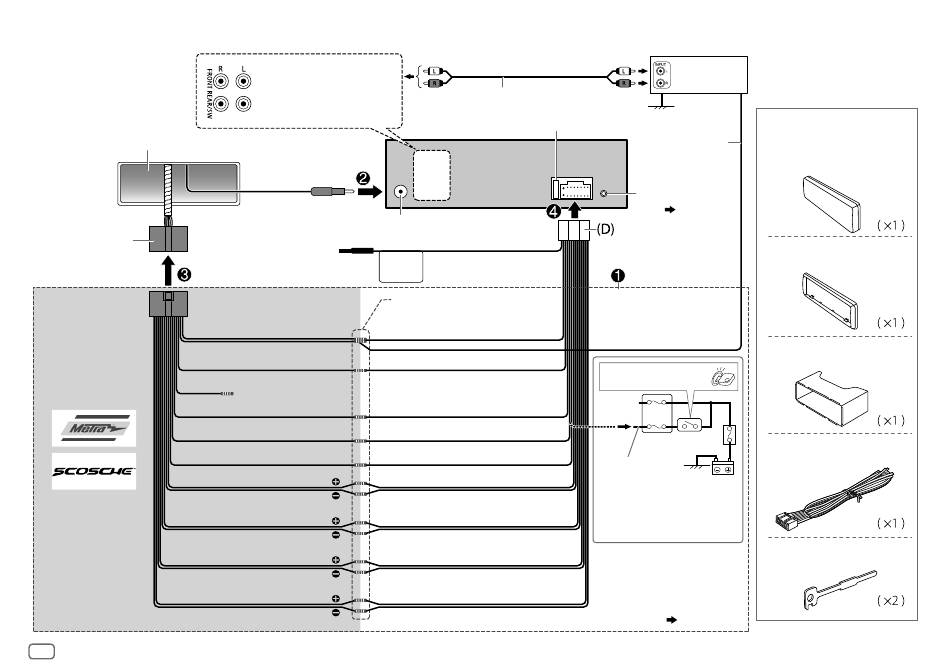

Wiring connection (for KD-R860BT)
Vehicle dashboard
Factory wiring
harness (vehicle)
Blue: To power antenna
Blue/white: To amplifier
Vehicle-specific Wiring
Harness (separately
Brown
purchased)
For more information:
Metra Electronics:
www.metraonline.com
Scosche Industries:
www.scosche.com
32
Front output
Rear/subwoofer output
Antenna terminal
To the steering
Light blue/yellow
wheel remote
STEERING
control adapter
WHEEL
REMOTE
Recommended
Join the same color wires together.
connection
Blue/white: Remote (200 mA max.)
Orange/white: Illumination
(Not used)
Yellow: Battery 12 V
Red: Ignition 12 V
Black: Ground
Gray: Front speaker (right)
Gray/black
White: Front speaker (left)
White/black
Purple: Rear speaker (right)
Purple/black
Green: Rear speaker (left) *
Green/black *
Signal cord (not supplied)
Fuse (10 A)
Ignition switch
Separate red wire
Make this connection if your
vehicle factory wiring harness
does not have "12 V ignition
switch" wire.
*
2
You can also connect a
subwoofer speaker directly
using this lead without an
2
external subwoofer amplifier.
2
For setting, 21, 22.
* 1
Firmly connect the ground
wire of the amplifier to
the car's chassis to avoid
JVC Amplifier * 1
damaging the unit.
Part list for
Remote wire
installation
(not supplied)
(A) Faceplate
Microphone input
jack ( 14)
(B) Trim plate
(C) Mounting sleeve
Car fuse block
(D) Wiring harness
(E) Extraction key
