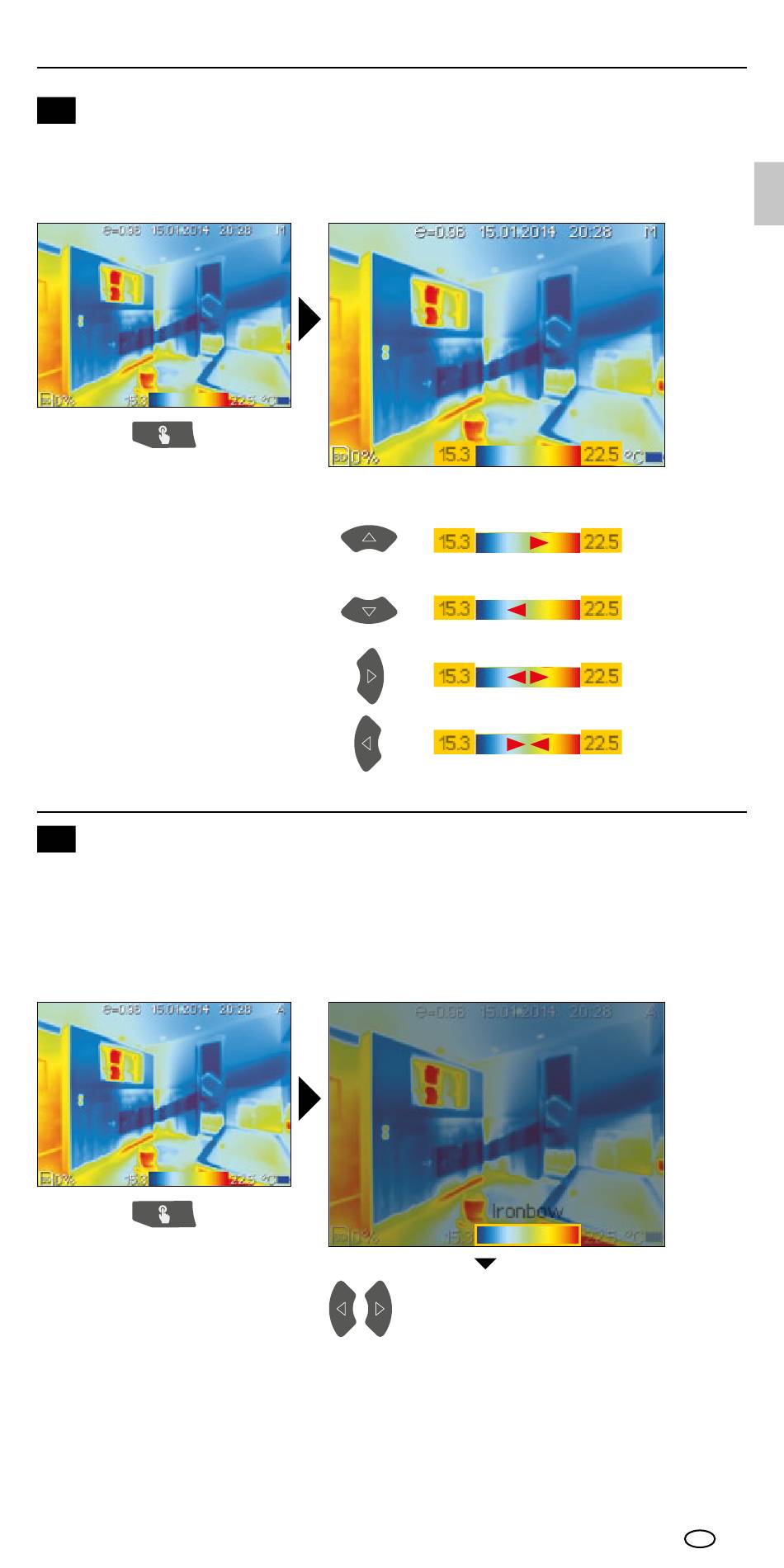

Manual temperature range
In manual settings mode, the temperature range is no longer set automatically
based on the measured min./max. values but rather determined on the basis
of manual values. Switch auto / man, see Section 9
The min/max values (level)
are increased simultaneously.
The min/max values (level)
are decreased simultaneously.
The min/max temperature range
(span) is increased.
The min/max temperature range
(span) is decreased.
22 Colour ranges IR image
You can choose from several standard colour ranges to represent the measured infrared
temperatures. Depending on the colour palette, the measured temperatures are adjusted
within the current image section and displayed in the respective colour space. The
bargraph for the respective minimum/maximum temperatures of the entire image
serves as a reference for the corresponding temperature/colour mapping.
ThermoXplorer Pro
15.3 22.5
15.3 22.5
15.3 22.5
15.3 22.5
15.3 22.5
Ironbow
Ironbow
PosGrayscale
NegGrayscale
Amber
Hot Metal
Cool Metal
R.bow – Grn Red
R.bow – Blu Red
R.bow – Blk Wht
H.C. – Blu Yel
H.C. – Vio Wht
