5 Connecting to power supply
Plug versions
14
Valve plug ISO 4400
For this plug version, standard cable with round wire cross-section
can be used. Cable diameter 4.5 ... 7 mm, protection IP 65.
1

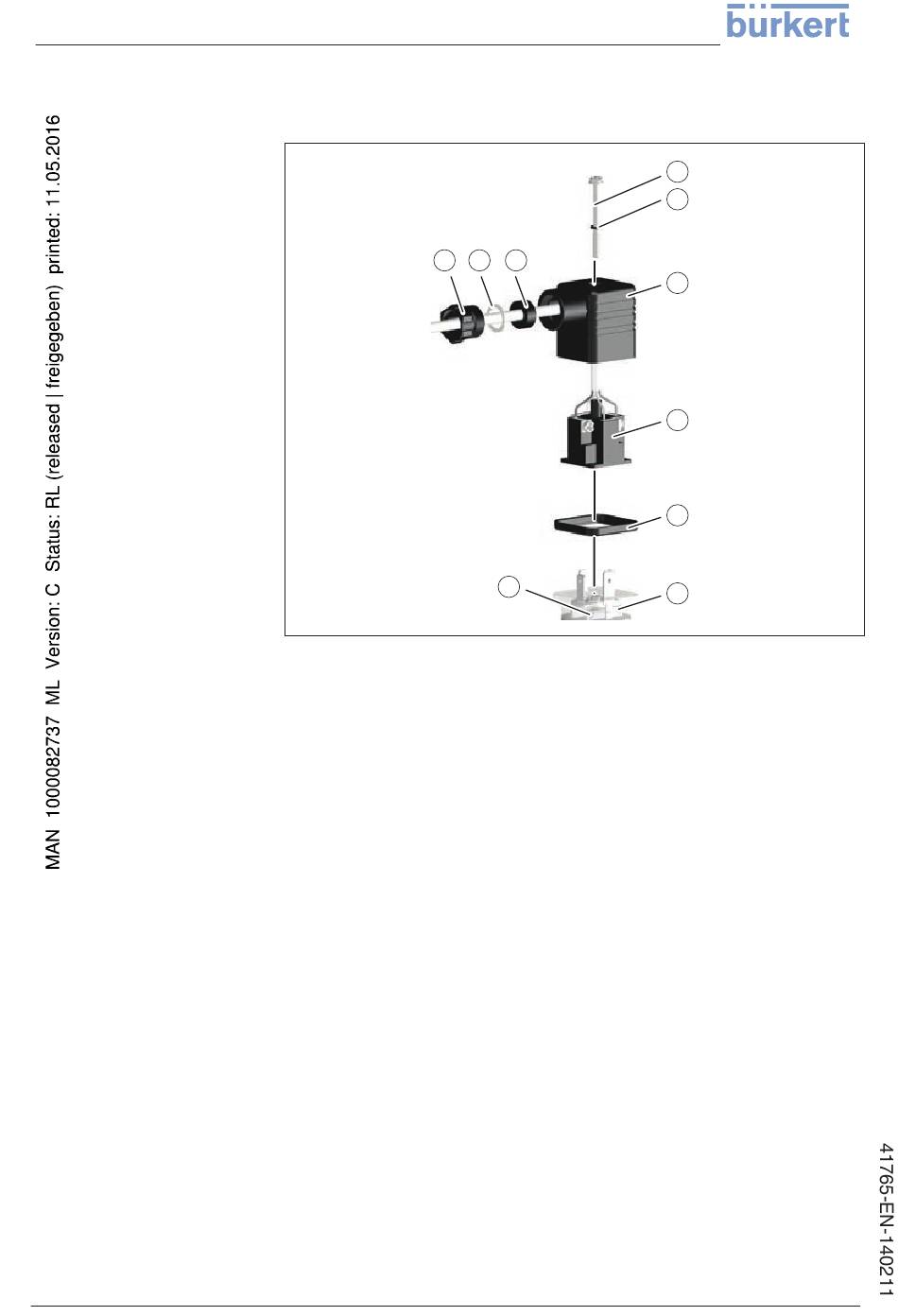

Fig. 8: Connection, valve plug ISO 4400
1 Pressure screw
2 Pressure disc
3 Seal ring
4 Fixing screw
5 Seal washer
6 Plug housing
7 Plug insert
8 Profile seal
9 Control lamp
10 LEVEL SWITCH 8110
Valve plug, QuickOn ISO 4400
For this plug version you can use standard cable with round wire
cross-section. The inner cables must not be dismantled. The plug
connects the cables automatically when screwing in. Cable diameter
3.5 ... 6.5 mm, protection IP 65.
LEVEL SWITCH 8110 • - contactless electronic switch
2 3
10
4
5
6
7
8
9
