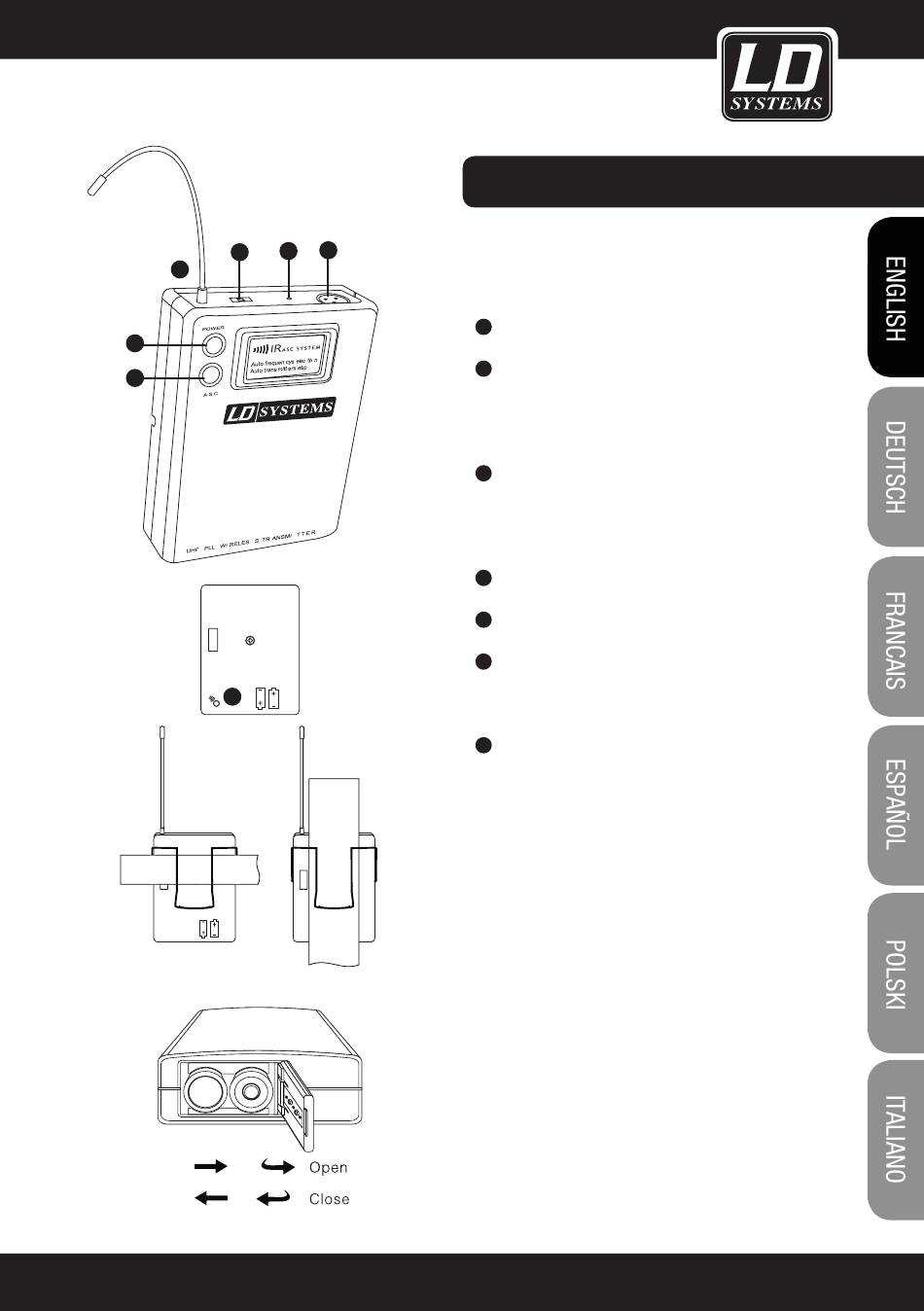

BELT PACK TRANSMITTER:
4
ANTENNA
1
GAIN SETTINGS
2
Mic: Microphone
0: Guitar with passive pickup
-10 dB: Guitar with active pickups
POWER LED
3
Green: operating
Red: Battery low
Blinking red: IR transmission is in progress
MINI XLR MIC INPUT
4
POWER ON / OFF BUTTON
5
ASC BUTTON (ACTIVATE SYNC)
6
Press this button to activate the infrared connection
between transmitter and receiver
IR PORT
7
Receives the infrared frequencies sent by the recei-
ver in order to synchronize transmitter and receiver.
WEARING THE BELTPACK TRANSMITTER
Clip the receiver to a belt. For ultimate results, clip the
receiver onto a belt by pushing the receiver down onto
the belt as far as it goes.
For guitarists, attach the guitar strap "through" the
receiver clip.
CHANGING THE BATTERIES
Expected life for two alkaline batteries is approxima-
tively 8 hours.
When the battery status indicator flashes red the
batteries should be changed immediately as show on
the left side. Please Insert 2 AA Alkaline batteries (LR6
1,5 V)
