US English User Manual for RAIS Rondo, RAIS Mino II and RAIS Mino II Soapstone

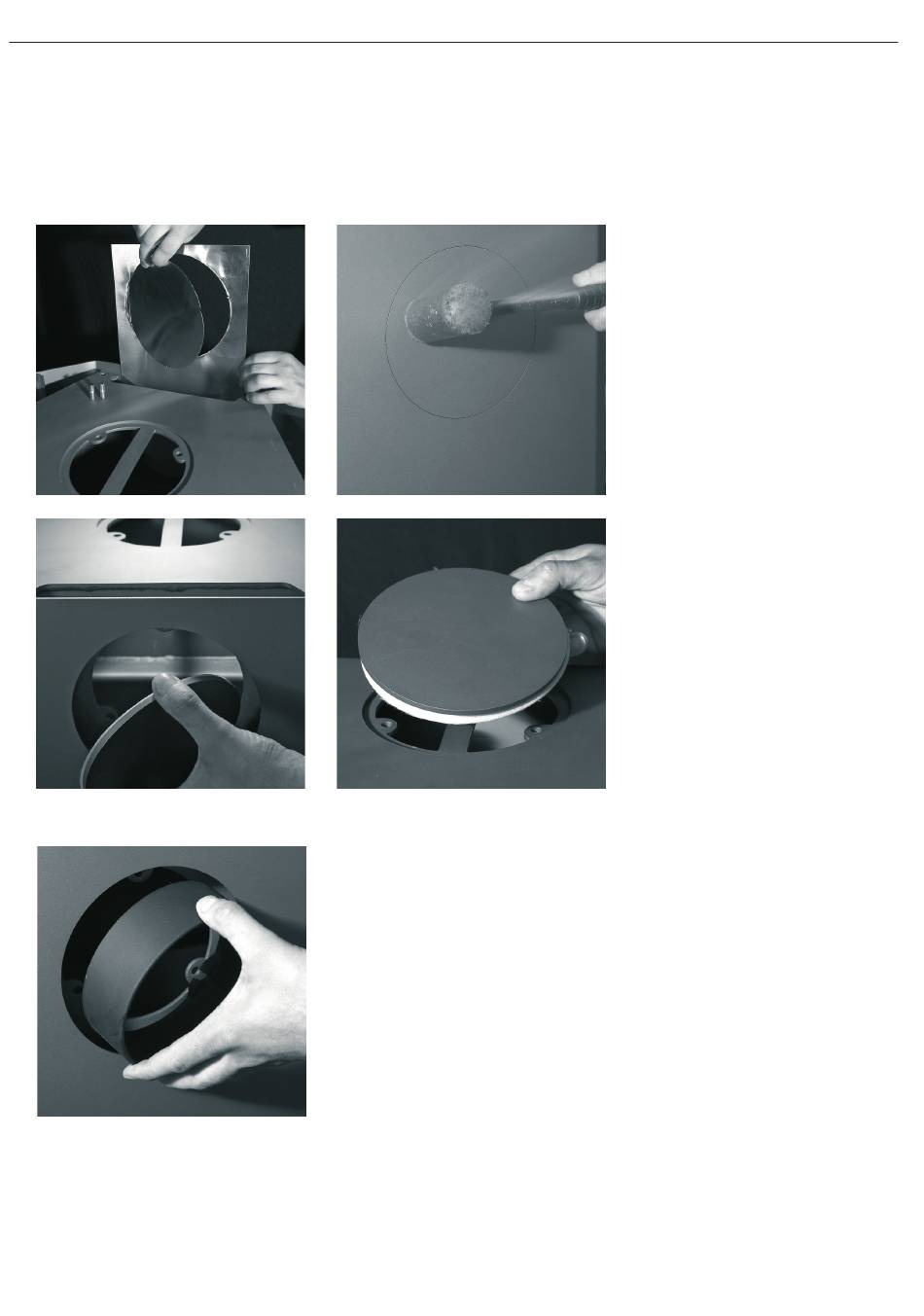

Lift up the reflector plate, punch
out the upper cutting and put
the reflector plate back.
Take the cutting out of the
cover.
Take off the the gasket and the
blind plate for the rear smoke
exit and place them in the hole
on the top. Make sure that the
gasket is positioned correctly.
Use three M6 nuts to fasten the
blind plate and gasket onto the
top.
The flue collar is mounted with
the three M6 nuts. The two
lower nuts also hold the top
smoke plate retainer.
The smoke chicane system
is then remounted in reverse
order.
