Installation of Soapstone (RAIS Mino II Soapstone)
Cautionary note: Soapstone is fragile, so please handle with care.
Parts list (loose parts for installation of soapstone)
Part No.
9057001/9057002
9057004
5057006
9057007
9050118 grey/black
9050109 grey/black
0110-M5x12afst. stang
0110-M5 flangemøtrik
0110-M5x40 pinol
0110-M5x10 cyl rå lh
70-03
Installation of Soapstone Sides

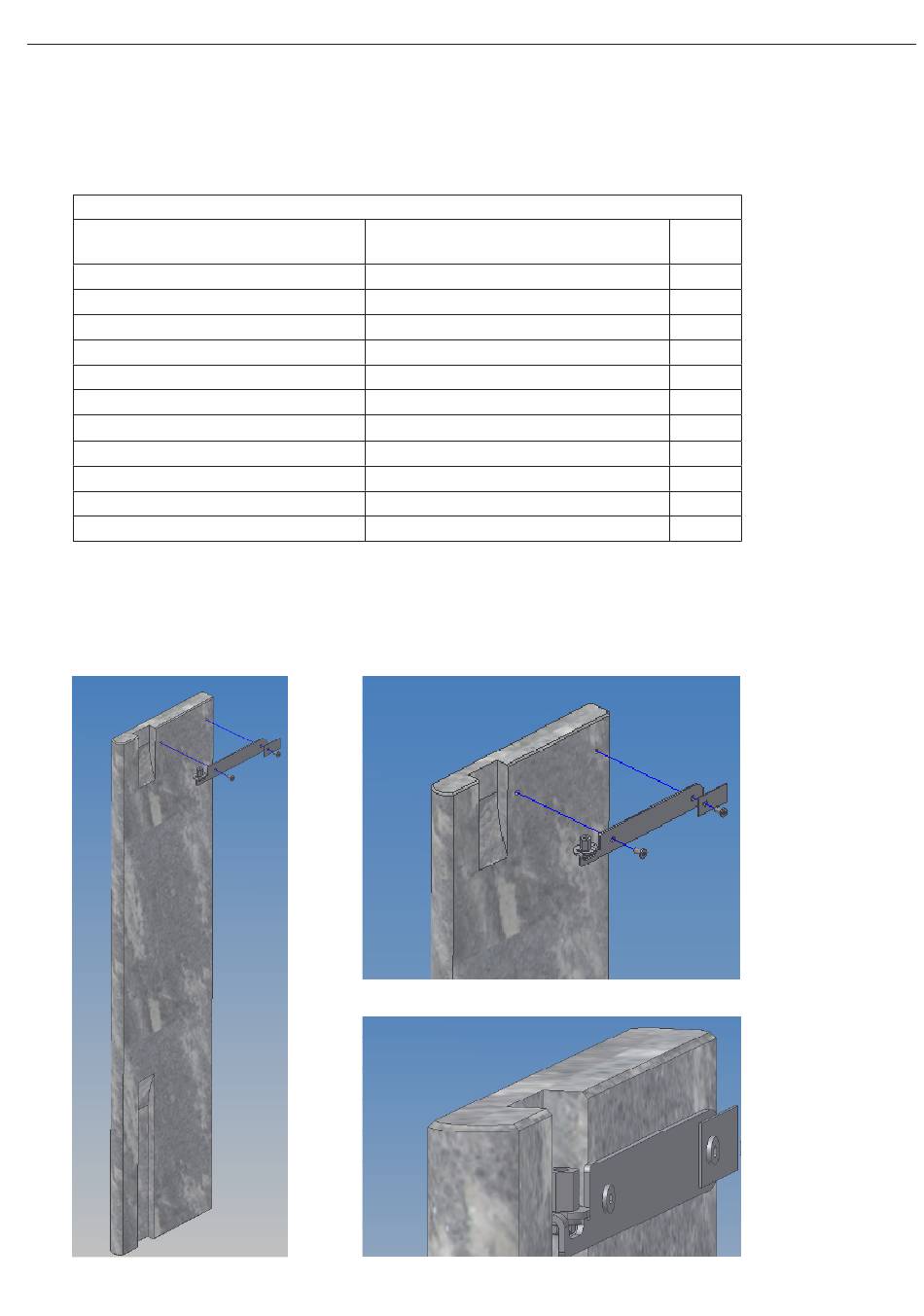

Start with the left side. Mount the fitting for soapstone and the spring hold with the enclosed
screws. Ensure that you use the left fittings for the left-side stone.
Assemble the right side in the same way as the left.
10
Part Name
Top plate without hole/top plate with hole
Baking stone
Right-side stone
Left-side stone
Fitting for soapstone, right
Fitting for soapstone, left
M5x12 distance piece
M5 flange nut
M5x40 pointed screw
M5x10 cylinder screw
Spring hold
No. of
pcs.
1/1
1
1
1
1
1
2
2
2
4
2
