WOOD CHIPPER ASSEMBLY

Set the shipping crate on a solid flat surface and carefully remove the lid. Use two people and
take all parts out of the crate and inspect the components to ensure there are no missing pieces
before starting to assemble the wood chipper.

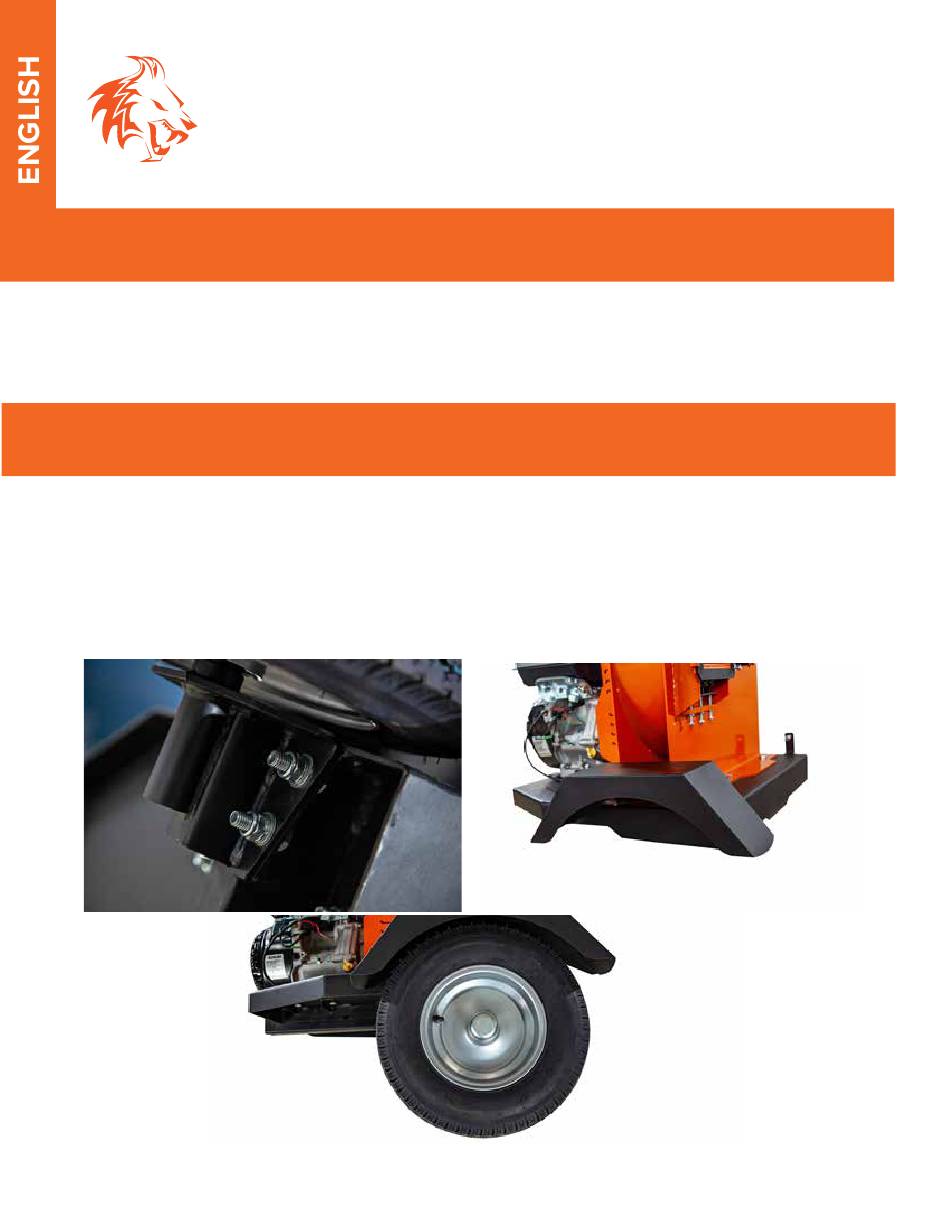

STEP 1: ATTACHING THE TIRES
1. Attach the wheel axis (2) to the chassis (1) using M12x30 hex bolt (60), flat washer 12 (53) and
lock nut M12 (54).
2. Attach the wheel (3) to the wheel axis (2), lock the M24x1.5 hex slotted nut (56) in place using
the 4x45 split pin (55) and install the dust cap (4) on the end using a rubber mallet.
3. Attach the fender (43) to the chassis (1) using M8x20 hex bolt (63), flat washer 8 (64) and M8
lock nut (65).
18 | OPC514 man. v.210412
ASSEMBLY
STEP BY STEP INSTRUCTIONS
