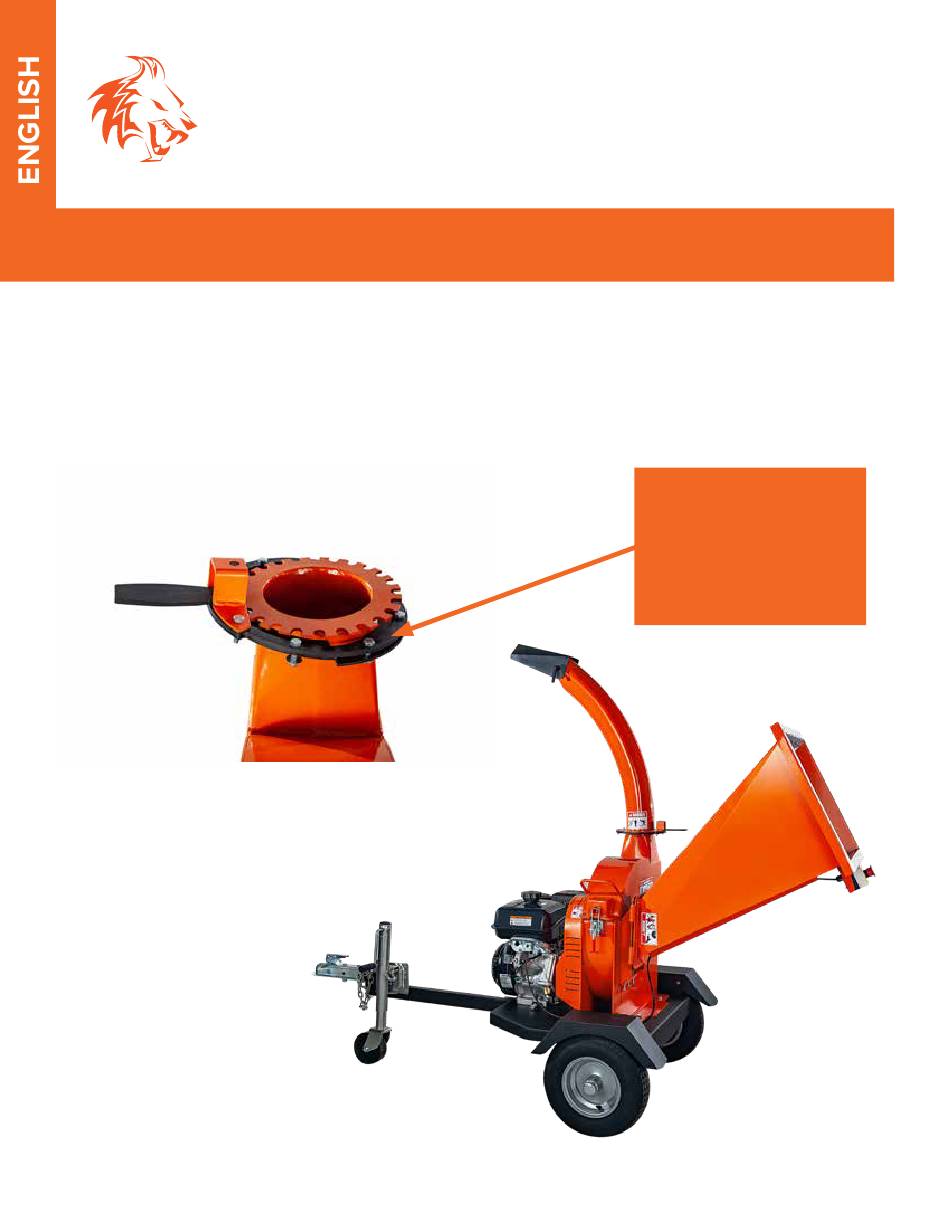

STEP 4: ATTACHING THE EXPULSION CHUTE
1. Place the junction plates (27, 29) on top of the disk cover (26).
2. Take the rotating plate (28) and place it on top of the junction plates (27, 29)
Fasten the expulsion chute (34) to the rotating plate (28) and junction plates (27, 29) using
3.
flat washer 6 (73), lock nut M6 (74) and hex bolt M6x20 (77).
24 | OPC514 man. v.210412
ASSEMBLY
STEP BY STEP INSTRUCTIONS
Junction plates, rotating
plate and fasteners
are all pre-assembled
underneath their
intended installation
spot.
