TRIAD
GENERAL DESCRIPTION & SPECIFICATIONS

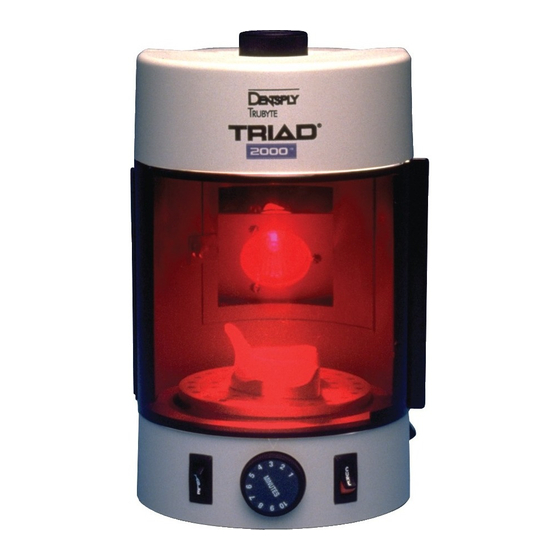

The DENTSPLY Triad 2000 Light Curing Unit is
a precision engineered unit, constructed to exacting
specifications with the finest materials and work-
manship. It contains controls and components for
curing Triad visible light activated materials. The
unit is manufactured and distributed by DENTSPLY
International Inc., York, PA, through authorized den-
tal dealers throughout the world.
The DENTSPLY Triad 2000 Unit incorporates
specific controls with a rotating platform and lift, and
through a tungsten halogen light source, cures light-
activated materials by use of visible light. The
adjustable table features selective controls to accom-
modate the processing of all types of visible light
cure materials in various appliance shapes, with or
without the use of a model (cast).
Refer to Figure 1 for location of the following unit
controls and components:
POWER: On/Off switch. The cooling fan will
operate.
TABLE: Activates rotation of the table.
2000 LIGHT CURING UNIT
®
On/Off switch. Activates the lamp when
CURE:
access door is closed. (Access door actu-
ates safety interlock switch.)
Rotating timer dial programs processing
TIMER:
time.
TURNTABLE:
The turntable is raised and lowered by the
top-mounted lift knob. The turntable will
raise or lower to internal stops. The rota-
tion of the turntable is provided by a gear-
motor operating at 6 rpm. Rotation is acti-
vated by the table switch.
CURING CHAMBER:
Contains a high-power, specially angled
tungsten halogen reflector lamp which
projects optimum photocure light on the
turntable location. The lamp is mounted
to be replaced easily.
COOLING FAN:
One 12 watt, 115V fan operates when the
power switch is ON, cooling the lamp
housing and the curing chamber.
FIGURE 1
1. POWER Switch
2. CURE Switch
3. Lift Knob
4. TIMER Dial
5. Table Switch
6. Lamp and Mounting Assembly
7. Curing Chamber Door
8. Safety Interlock Actuator
9. Curing Chamber
