ASSEMBLY/SET-UP INSTRUCTIONS

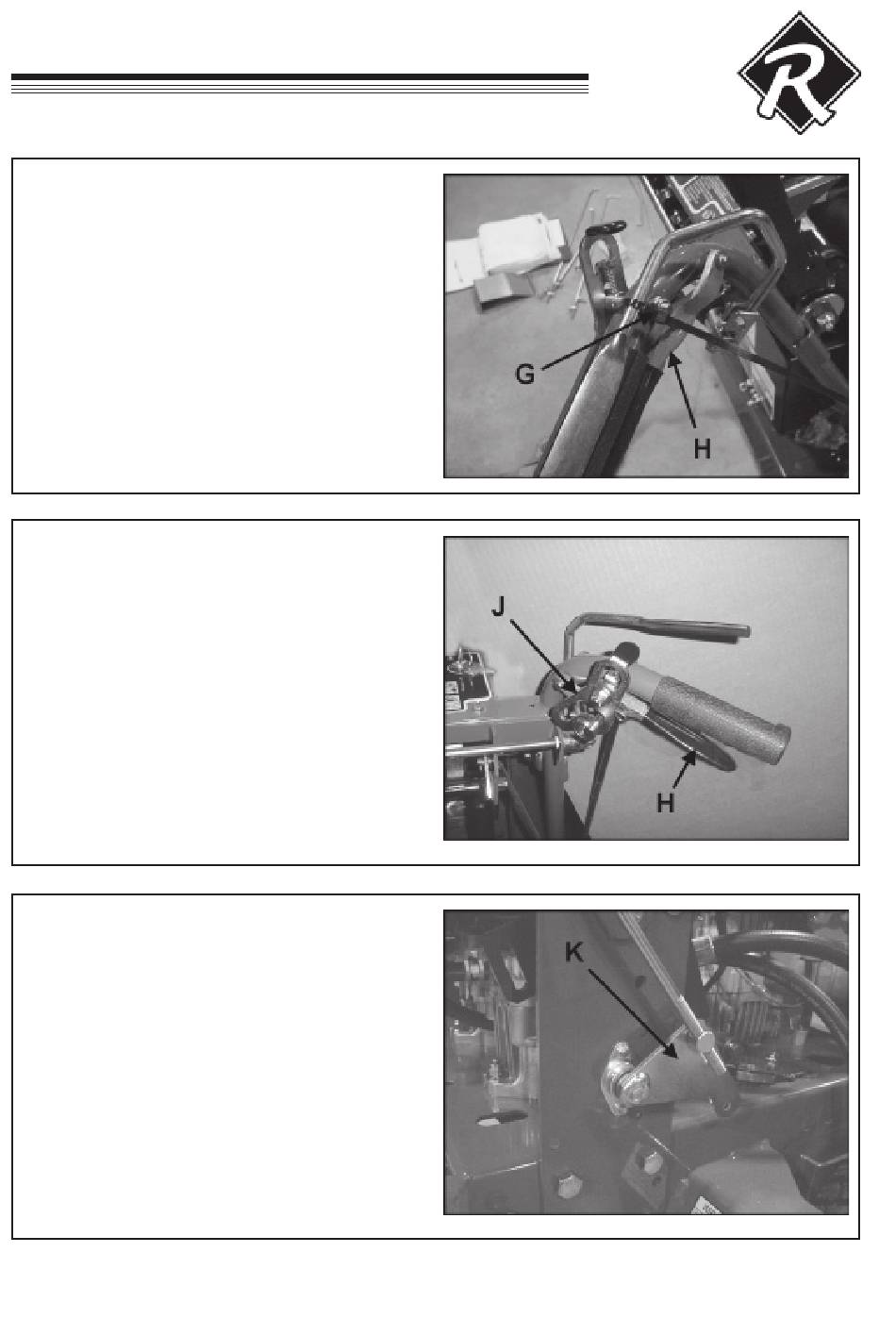

11. Cut and remove tie wrap G from the traction
control lever H.
12. Locate the two longest rods removed in Step 2.
Install the two traction control rods through the
traction control lever H, flatwasher and traction
lock J and secure with hairpin. Repeat on other
side of upper handle.
13. With the traction locks J in the neutral position,
apply tension to the traction control rod to remove
any slack and align swivel on traction control rod
with the hole in pump arm K. Repeat for other
side.
NOTE: The pump arm has some rotational play.
Adjust the swivel on the traction control rod to the
center of this play and secure to the pump arm
with a flatwasher and hairpin as shown.
GB-6
EC
Hydro
Midsize
