ASSEMBLY/SET-UP INSTRUCTIONS

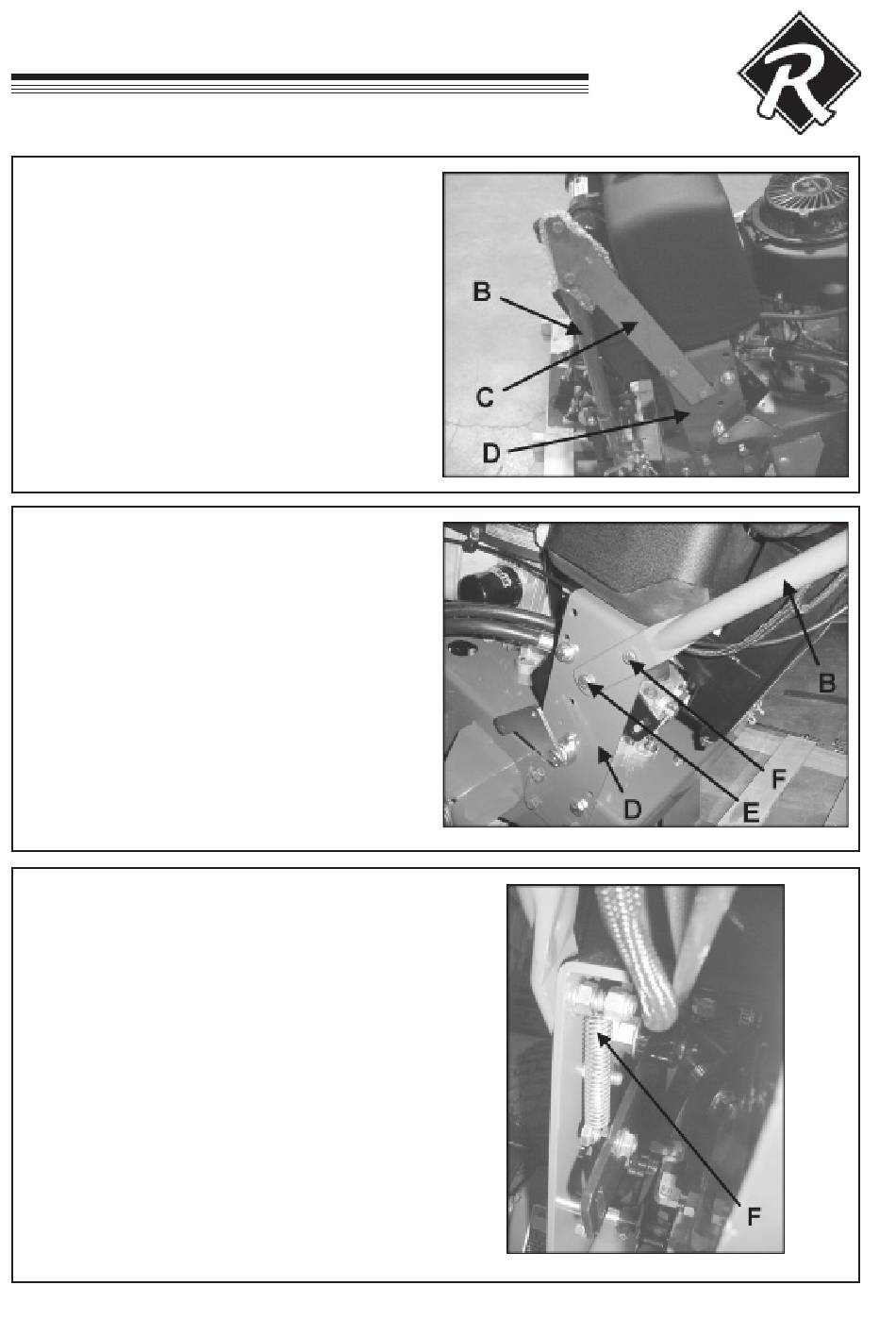

4. Unbolt upper handle B from shipping bracket C.
Unbolt shipping bracket C from lower handle D.
Retain fasteners removed for later use.
5. Bolt upper handle B to lower handle D with
(2) 3/8-16 X 1" bolts and nuts at location E bolts
removed in the previous step and
(2) 3/8-16 X 1-1/2" bolts and nuts at location F.
6. Reinstall spring F to bolt on both sides. Install
3/8-16 nylon locknut to end of bolt on both sides
as shown.
GB-4
EC
Hydro
Midsize
