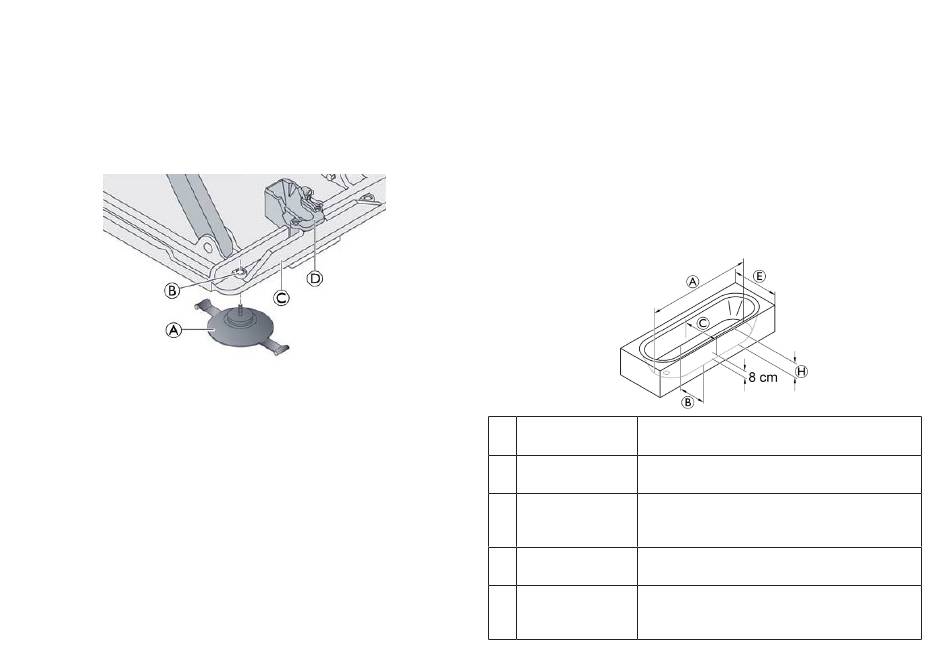

Attaching the rear suction cups

!
IMPORTANT
▸ The rear suction cups have two tabs and a thread.
▸ Attach the suction cups in such a way that you can reach one
tab of each suction cup when the lift is set up in the bath.
▸ The assembly procedure is the same for the right and left
side.
1. Screw the suction cup A from below into the threaded liner B
provided for this.
2. Tighten the suction cup until it abuts the underside of the base
plate C as shown.

Completing assembly

1. Carefully push the lifting scissors back together.
The locking mechanism between the base plate and seat plate closes
automatically.
2. Place the seat on the attached suction cups.
8

4.3 Setting up the bath lift

WARNING Risk of slipping

The bath lift can slip if the suction cups do not have a good
hold.
▸ Clean the bathtub and the suction cups before setting up
the bath lift.
▸ Do not change the position of the bath lift in the bathtub
once it is set up.
WARNING Risk of injury and damage

▸ Only set up the bath lift in bathtubs that comply with the
specifications of the following table.
≥ 800 mm
A Tub length,
bottom
B Tub width, bot- 280 - 600 mm
tom (inside)
≥ 430 mm
C Tub width, at
80 mm in height
(inside)
≤ 420 mm (with height adapter
H Tub height
(inside) max. + 60 mm)
E Tub width (out- 580 - 690 mm (with special side flaps)
side) 700 - 740 mm (with standard side flaps)
750 - 1000 mm (with special side flaps)
