Ensure that the machine is protected from
unauthorised use (e.g. by children).
Thoroughly clean the machine before
storage (e.g. winter break).
Store the machine in good operational
condition.
Only store the garden shredder with either
the feed chute or the blade cover fitted.
Risk of injury due to exposed blades.
4.9 Disposal
Waste products can be harmful to people,
animals and the environment. They must
consequently be disposed of properly.
Consult your recycling centre or your
specialist dealer for information on the
proper disposal of waste products. STIHL
recommends STIHL specialist dealers.
Ensure that old machines are properly
disposed of. Render the machine
unusable prior to disposal. In order to
prevent accidents, always remove the
power cable and electric cable to the
motor.

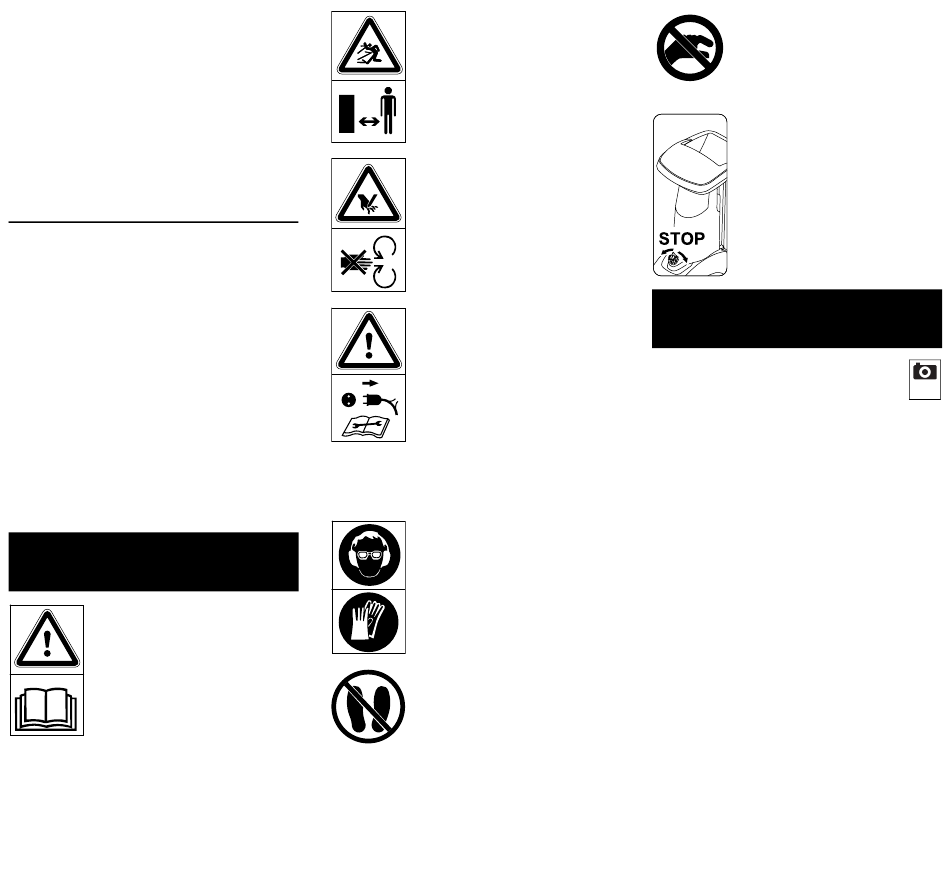

5. Description of symbols

Caution!
Read the instruction man-
ual before initial use.
48
Risk of injury!
Keep other persons out of
the danger area.
Risk of injury:
Risk of injury caused by
rotating tools.
Risk of injury!
Switch off the motor and dis-
connect the power cable
from the machine before
working on the cutting tool,
before performing mainte-
nance and cleaning work,
before checking whether the
electric cable is entwined or
damaged and before leaving
the machine unattended.
Wear hearing protection.
Wear safety glasses.
Wear work gloves.
Risk of injury:
Do not climb onto the
machine.
Risk of injury:
Never put your hands or any
other part of your body or
clothing into the feed chute
or ejection chute.
The On / Off switch is
located on the front of the
machine. Turn the black
rotary knob of the On / Off
switch to switch off the
machine.

6. Standard equipment

Item Designation
A Basic unit
B Feed chute ATO 400
C Right wheel carrier
D Left wheel carrier
E Ejection chute extension
F Guiding plate
G Ejection chute plate
H Axle
I Wheel
J Wheel cap
K Plug
L Foot
M Torx screw
M8x40
N Retaining ring
O Torx screw
P5x20
0478 201 9916 A - EN
2
Qty.
1
1
1
1
1
1
1
1
2
2
2
2
2
2
6
