D2116
Service Instructions
Instructions for vane motor

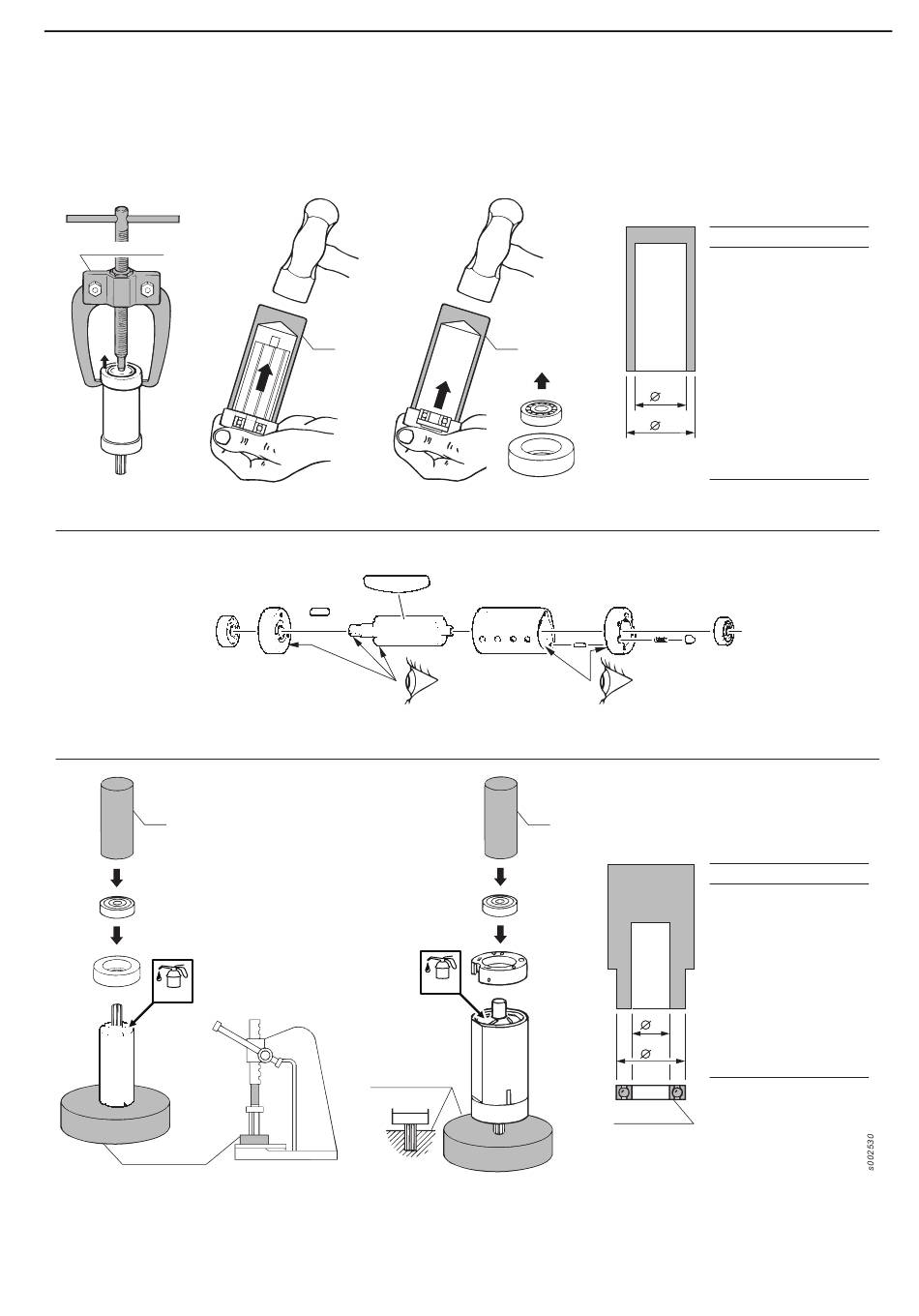

Dismantling
4080 0302 00
Inspection of motor parts
Assembly - according to Bäckströms method
B
OIL
4080 0321 00
EN
A
OIL
4080 0321 00
© Atlas Copco Industrial Technique AB - 9836 3456 00
Service tools are also included in our
Basic Service Tools Set. For further
information see, Ordering No. 9835 5485 00
Dismantling tool
A
A
C
D
Service tools are also includedin our
Basic Service Tools Set. For further
information see, Ordering No. 9835 5485 00
B
Assembly tool
B
C
D
Ball bearing
Service instructions
Mandrel A
Ordering No.
Ø D
Ø C
4080 0182 01
7
3.5
4080 0182 02
8
4.5
4080 0182 03
9
5.5
4080 0182 04
10
6.5
4080 0182 05
13
8.5
4080 0182 06
16
10.5
4080 0182 07
19
12.5
4080 0182 08
22
15.5
4080 0182 09
24
17.5
4080 0182 10
26
20.5
4080 0182 11
30
25.5
4080 0182 12
35
30.5
4080 0182 13
40
35.5
4080 0182 14
47
40.5
Mandrel B
Ordering No.
Ø D
Ø C
4080 0567 04
12.5
5.2
4080 0567 11
14.5
6.5
4080 0567 01
15.5
5.2
4080 0567 05
18.5
6.2
4080 0567 02
18.5
8.2
4080 0567 06
21.5
7.2
4080 0567 03
21.5
8.2
4080 0567 07
25.5
10.5
4080 0567 08
27.5
12.5
4080 0567 09
31.5
15.5
4080 0567 10
34.5
18.5
93
