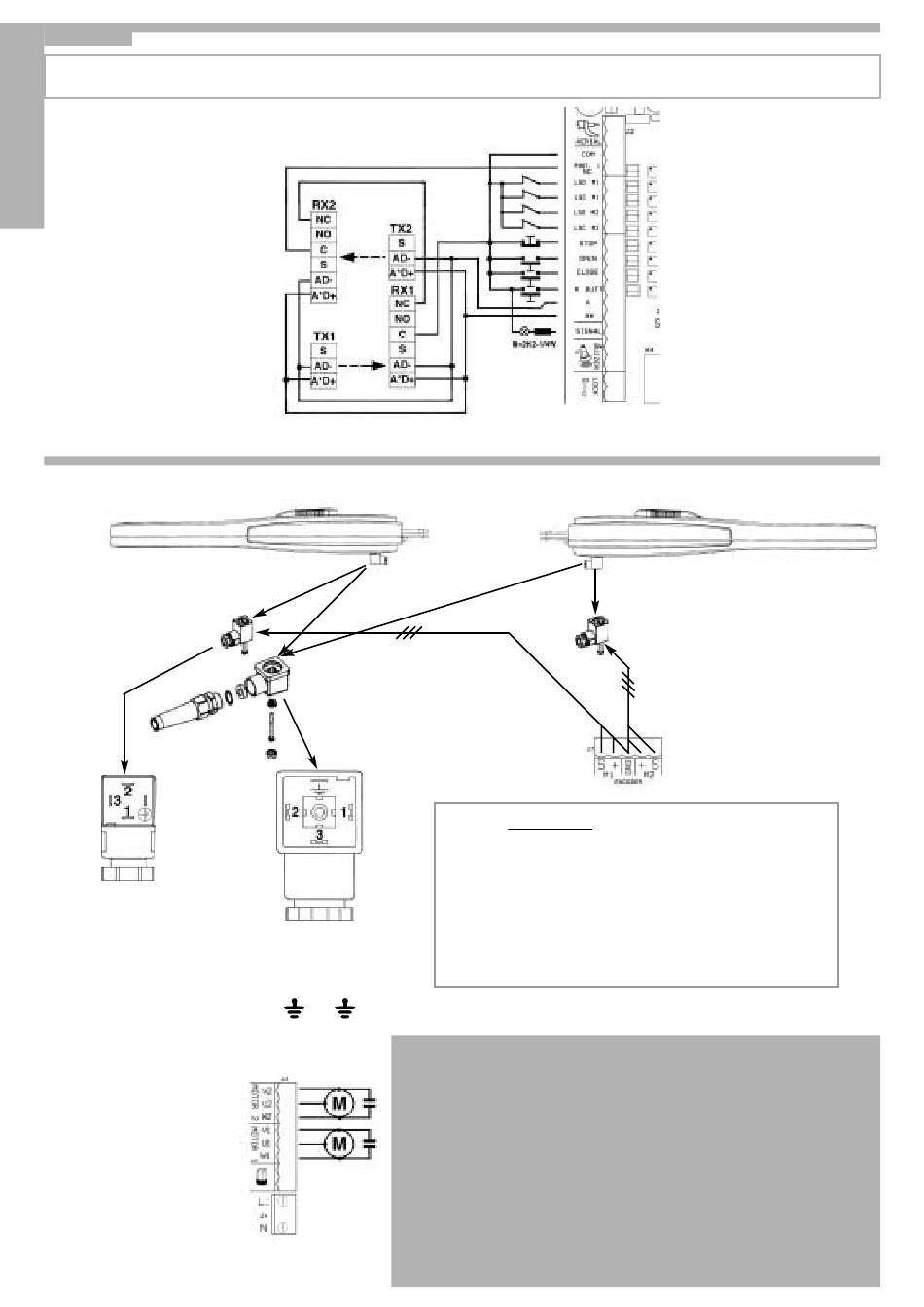

ELECTRIC CONNECTIONS
1 -> V
2 -> W
3 -> U
->
The length of connection cables from the motors to the control panel unit must not
exceed 15 m.
The wire section of the motor power supply must be 1.5 mm
accessories must be 0,75 mm
As for the encorder it is very important to use a shielded wire with a section of 0,75
mm
It is compulsory to use shielded cable for the encoder in order to guarantee the
correct operation of the control board.
To ensure the correct functioning of the installation it is advisable to wire encoder
and motor with separate cables.
M2
ONLY KING PLUS
*
Where:
=> 1-2-3 are the plugs of the connector where you have to insert
one side of the 3 WIRES (DO NOT CONNECT THE SHIELD)
=> S, +, GND are the plugs of the control board where you have
to insert the other side of the 3 WIRES. The SHIELD must be
connected to the EARTH from the power supply (not to GND).
WARNING!
2 .
2 (Ex. type ÖLFLEX-110 CH).
2 , whilst that of the
