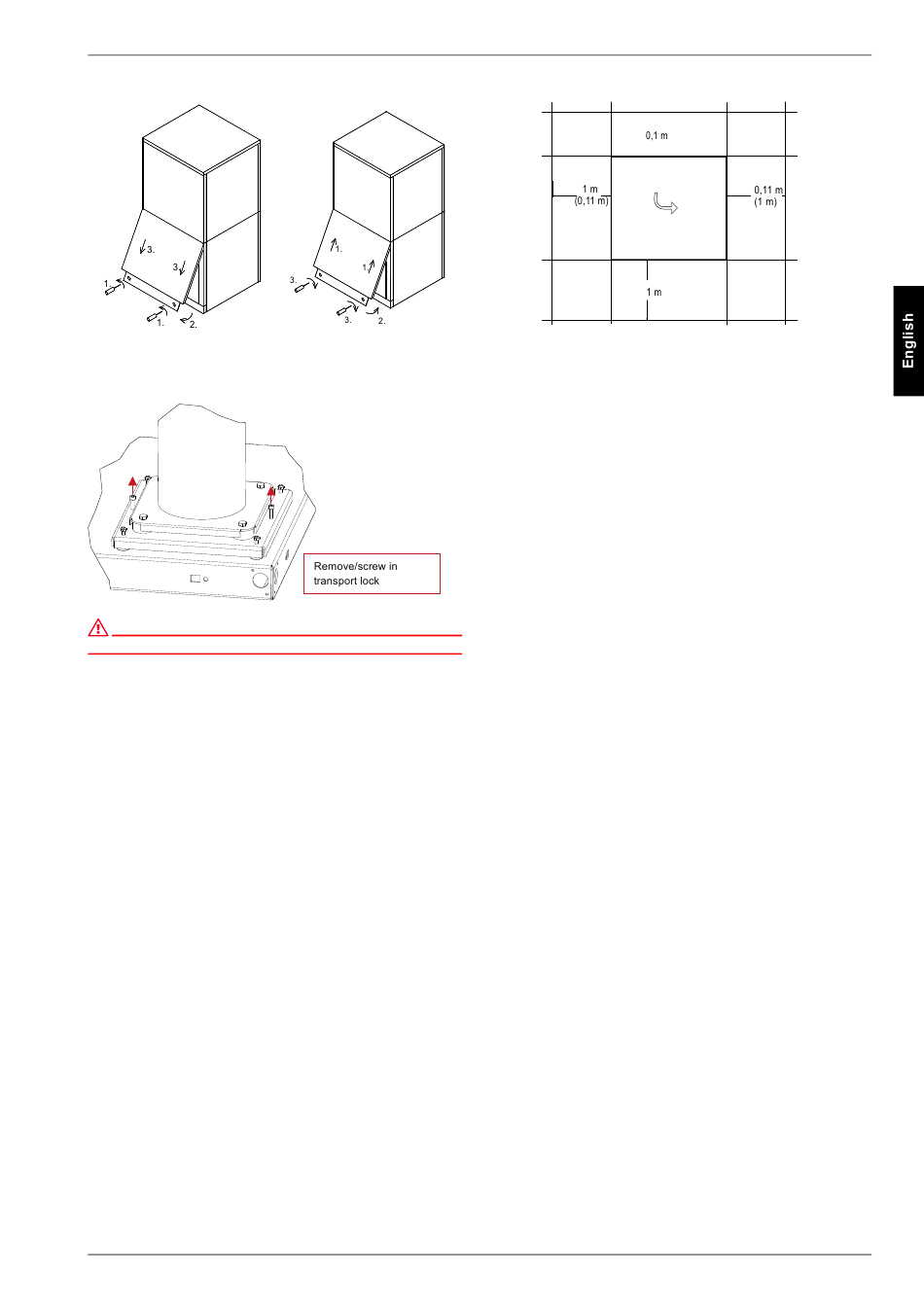

Opening the cover
After the transport, the transport securing device is to be re-
moved on either side at the bottom of the unit.
ATTENTION!
The transport securing device is to be removed prior to commissioning.
6

Set-UP

6.1 General Information

The device is designed to enable several connection options.
The position of the air outlet opening can be moved from right
(factory default) to left or top by turning over one of the two
screwed on covers.
By replacing the bottom side cladding sections, it is also possible
to move the hydraulic connection from left (factory default) to
right. The different connection options (see cap. 1 on pag. II) are
shown in the dimension drawing.
The air-to-water heat pump must be installed in a frost-free, dry
room on an even, smooth and horizontal surface. The entire
frame should lie directly on the floor to ensure an adequate
soundproof seal. If supporting feet are used, the heat pump must
be installed horizontally. In this case, the specified sound level
can be up to 3 dB(A) higher, and additional sound insulation
measures may be necessary.
The heat pump must be installed so that maintenance work can
be carried out without being hindered. This can be ensured by
maintaining a clearance of 1m in front of the heat pump and to
the side on which the heating water connections are located.
The side panel assemblies must not be covered by connecting
pipes.
www.dimplex.de
Closing the cover
Neither frost nor temperatures higher than 35 °C must occur in
the installation location at any time of the year.
Never install the device in rooms subject to high humidity. Con-
densation can form on the heat pump and air circuit if the humid-
ity exceeds 50 % and the external temperature is below 0 °C.
If the heat pump is installed on an upper storey, the load-bearing
capacity of the ceiling should be checked. On account of the
acoustics, measures for isolating possible vibrations should also
be very carefully planned in advance as well. Installation on a
wooden floor is not recommended.

6.2 Condensed Water Pipe

Condensed water that forms during operation must be drained
off frost-free. To ensure proper drainage, the heat pump must be
mounted horizontally. The condensate pipe must have a mini-
mum diameter of 50 mm and must be fed into a sewer in such a
way that it is safe from frost. Do not discharge the condensate di-
rectly into clearing tanks or cesspits, as aggressive vapours or a
condensed water pipe which has not been laid in a frost-free
manner could destroy the evaporator.

6.3 Sound

452160.66.52 · FD 9506
 We recommend connecting the heat pump to the heating
system using a flexible hose to prevent solid-borne noise
transmission to the heating system if requirements regard-
ing noise are high.
 Installed air ducts should be sound-isolated from the heat
pump to prevent the transmission of solid-borne sound to
the ducts.
 If the transport restraint screws are not removed from the
compressor, acoustic emissions from the device are signifi-
cantly louder!
LI 9TU - LI 12TU
EN-5
