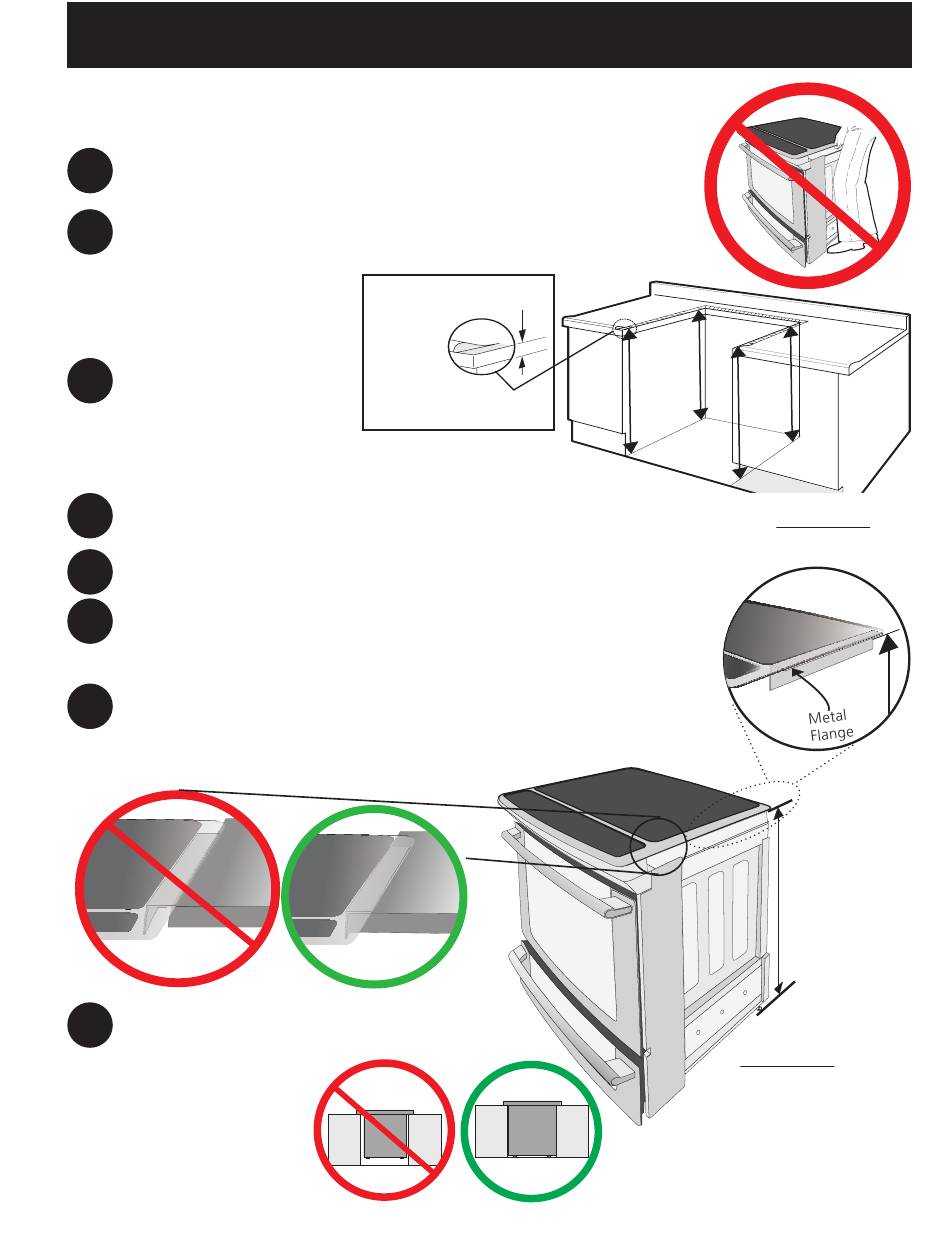

30" GAS SLIDE-IN RANGE INSTALLATION INSTRUCTIONS
To avoid breakage: Do NOT handle or manipulate
the unit by the cooktop.
The counter-top around the cut-out should be flat and leveled (see
1
hatched area on illustration 1).
Before installing the unit, measure the heights of the two (2) cabinet
2
sides (H1-4), front and back (see illustration 1) from the floor to the top
of the counter.
Level the range using the
two (2) front leveling legs
and the two (2) adjustable
leveling wheel, so that the
3
height from the floor to
the underside of the metal
flange is greater than the
tallest cabinet measurement
by at least 1/16" (see
illustration 2).
Remove and discard the two rear leveling legs, they are only in place to
4
solidify the unit for the transport.
Slide the unit into the cabinet. Make sure the center of the unit is aligned
5
with the center of the cabinet cut-out.
6
Remove the protective channels on each side of the cooktop (if provided).
The metal flange under each side of the cooktop MUST be placed over
the cabinet countertop for proper unit support. The cooktop should
7
NOT rest directly on the countertop (see illustration 2) or else it could
cause damage to the cooktop voiding the warranty. Level the unit if
needed.
After the installation, MAKE SURE that the unit is
8
supported by the two front leveling legs and the
two adjustable leveling wheels and NOT by the
cooktop.
(Models with Sealed Top Burners)
1 ½" Max.
Shave
(3.8 cm Max.)
Raised
Edge
to Clear
Space for a
31½" (81 cm)
Wide Cooktop.
3
H2
H4
H1
H3
Illustration 1
To successfully
install the
range, the initial
level height
from floor to
underside of
cooktop frame
should be at
least 1/16"
taller than
cabinet sides
as measured in
step 2.
Illustration 2
