J2 – Serial Connector
This connector provides the connection for RS – 232 and RS –
485 serial line.
J2 Pin-out:

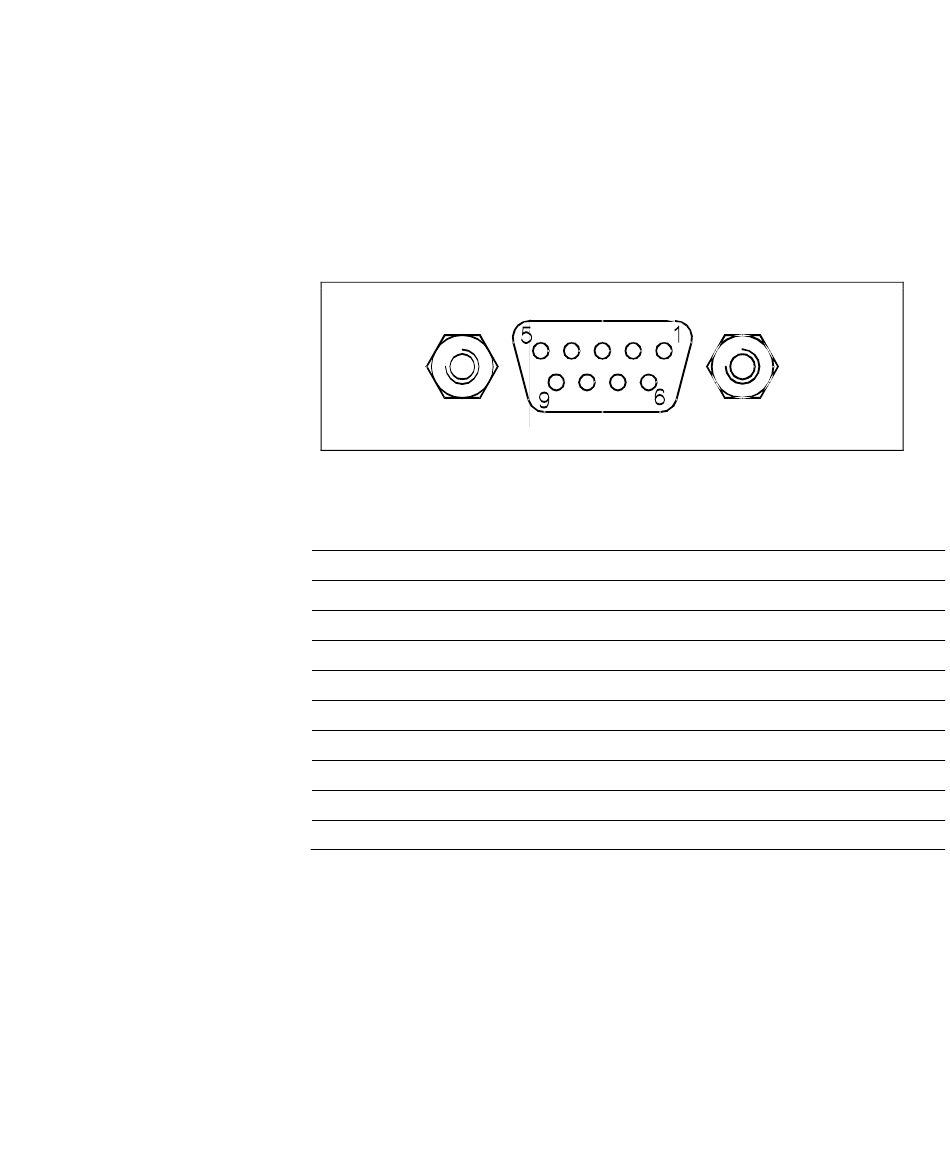

Figure 26
Tab. 5
PIN N.
1
2
3
4
5
6
7
8
9
TwisTorr 304 FS AG Rack Controller User Manual / 87-901-029-01
J 2 Connector
SIGNAL NAME
+5 V (OUT) (Reserved)
TX (RS232
RX (RS232
NC
GND
A + (RS485)
NC
B – (RS485)
RESERVED
