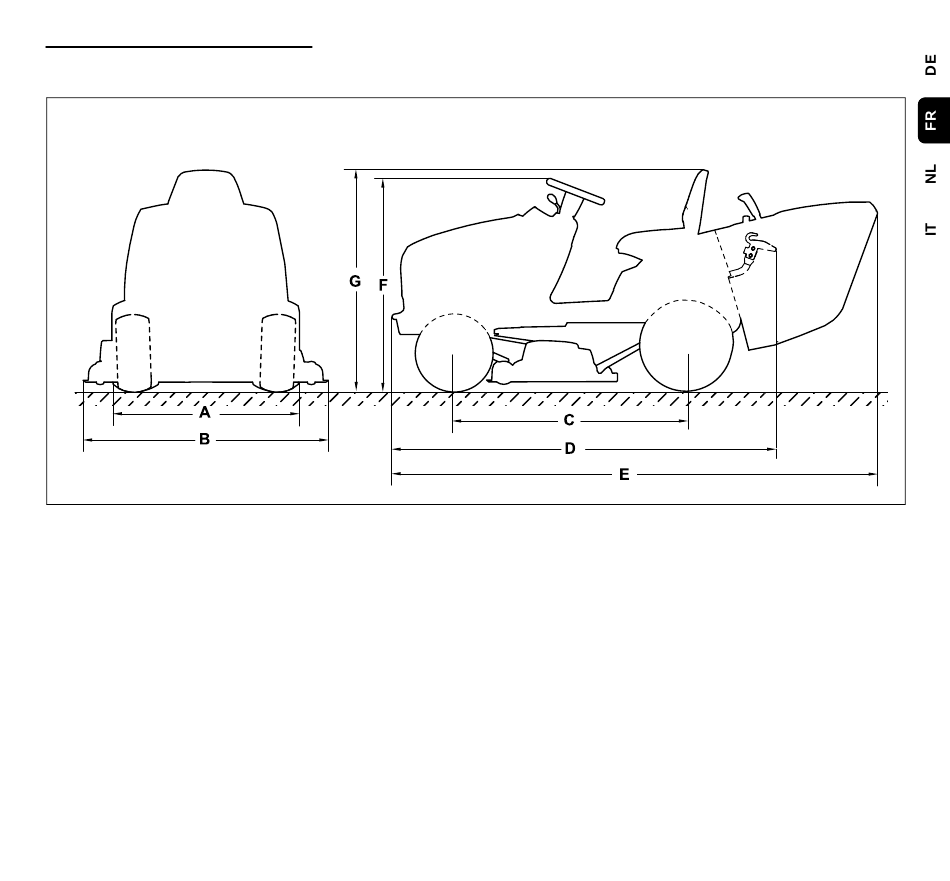

22.1 Dimensions

RT 5097.0, RT 5097.0 C, RT 5097.0 Z,
RT 5112.0 Z, RT 6112.0 C :
A=96,8 cm
RT 6112.0 ZL, RT 6127.0 ZL :
A=98,7 cm
RT 5097.0, RT 5097.0 C, RT 5097.0 Z :
B=100,6 cm
RT 5112.0 Z, RT 6112.0 C,
RT 6112.0 ZL :
B=116,9 cm
RT 6127.0 ZL :
B=131,8 cm
C=125 cm
D=206 cm
0478 192 9909 A - FR
RT 5097.0, RT 5097.0 C, RT 5097.0 Z :
E=241,6 cm
RT 5112.0 Z, RT 6112.0 C, RT 6112.0 ZL,
RT 6127.0 ZL :
E=260,3 cm
RT 5097.0, RT 5097.0 C, RT 5097.0 Z,
RT 5112.0 Z, RT 6112.0 C :
F=111 cm
RT 6112.0 ZL, RT 6127.0 ZL :
F=113 cm
RT 5097.0, RT 5097.0 C, RT 5097.0 Z,
RT 5112.0 Z, RT 6112.0 C :
G=116 cm
RT 6112.0 ZL, RT 6127.0 ZL :
G=118 cm
