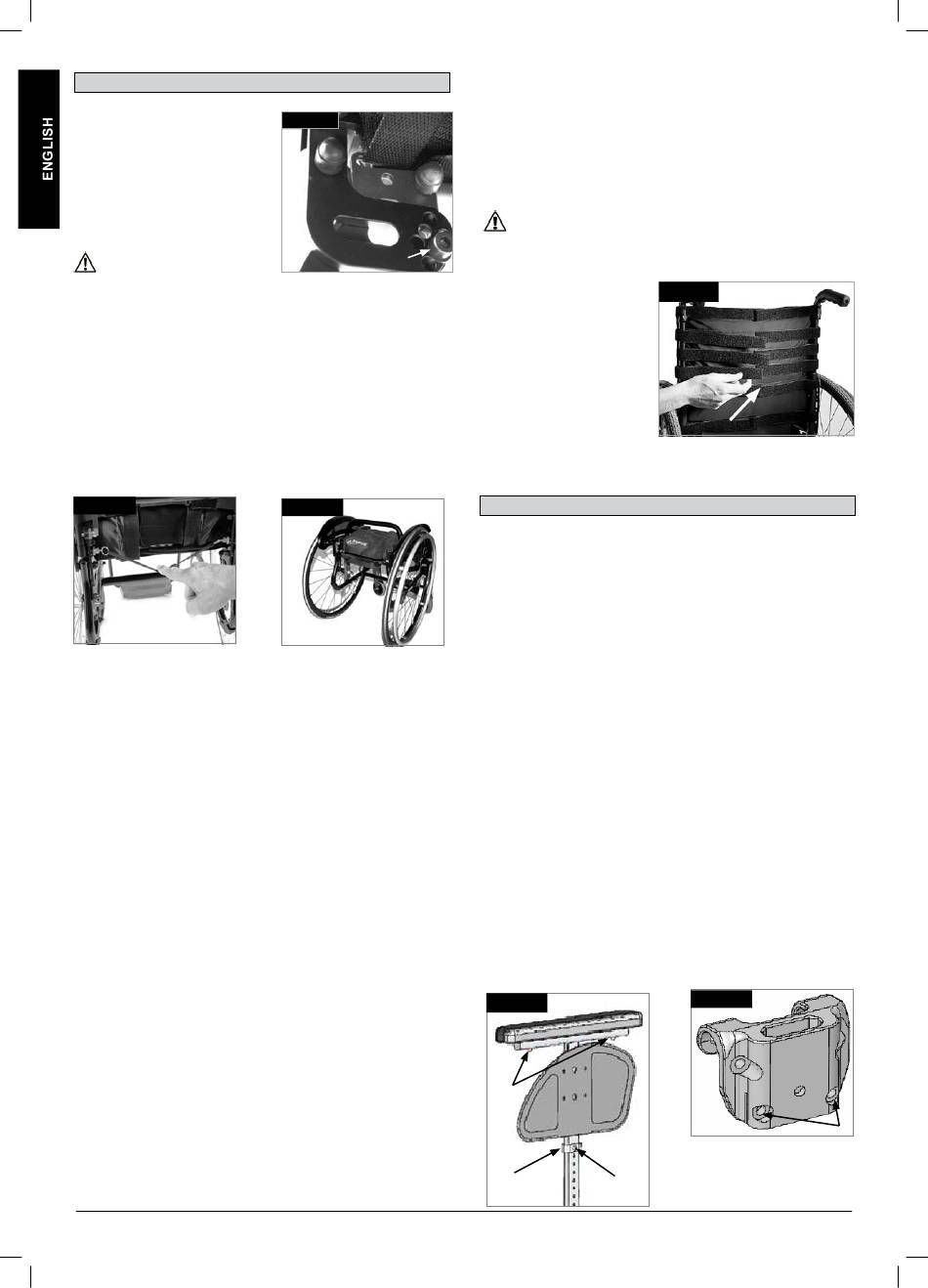

Angle Adjustable Backrest

Angle-adjustable fixed back
(Fig.6.20)
To adjust the backrest:
• Remove studs "A", on both
sides.
• Swivel the brackets to the
desired position.
• Refit the studs "A" and tighten.
CAUTION!
All screws must be refitted and tightened correctly to avoid
unexpected movement leading to loss of the angle setting.
Folding Backrest
Release the backrest by pulling the cord and at the same time,
pushing it forward to fold it down. To return the backrest to the
original position, pull it back as far as possible untill it locks into
position on both sides, (Fig.6.21 - 6.22).
Fig.6.21
18
Fig. 6.20
A
Fig.6.22
Adjustable back sling
(Fig.6.23)
The adjustable back sling can be adjusted for tension by parting
the Velcro® straps and moving them through the buckles (1).
When the desired tension is achieved, press the Velcro back
together.
Repeat the process for each strap.
The back sling upholstery can be accessed from the inside via
an opening and can be padded to suit individual tastes.
WARNING!
Ensure that each strap is firmly secured before using the
wheelchair.

Sideguards

Tool Height Adjustable Armrest
Installation: Slide the arm post into the receiver, located on the
wheelchair frame, until it stops
Height adjustment:
Slide the arm rest post out of the receiver.
Adjust the position of the hight adjustment bracket (1) by
removing the screw (2) and moving it to the desired posiion.
Re-fit the screw and tighten it.
Slide the arm rest post back into the receiver, (Fig.6.24).
Armpad position:
The armpad position can be adjusted by relesing the screws (3),
then moving the arm pad to the desired position. Re-tighten the
screws, (Fig.6.24).
Adjusting Armrest Receiver
The tightness of the armrest receiver can be adjusted (tightened
/loosened) by means of the 2 screws (1) - (Fig.6.25).
Fig.6.24
3
1
2
Fig. 6.23
1
Fig.6.25
