ENGLISH
5

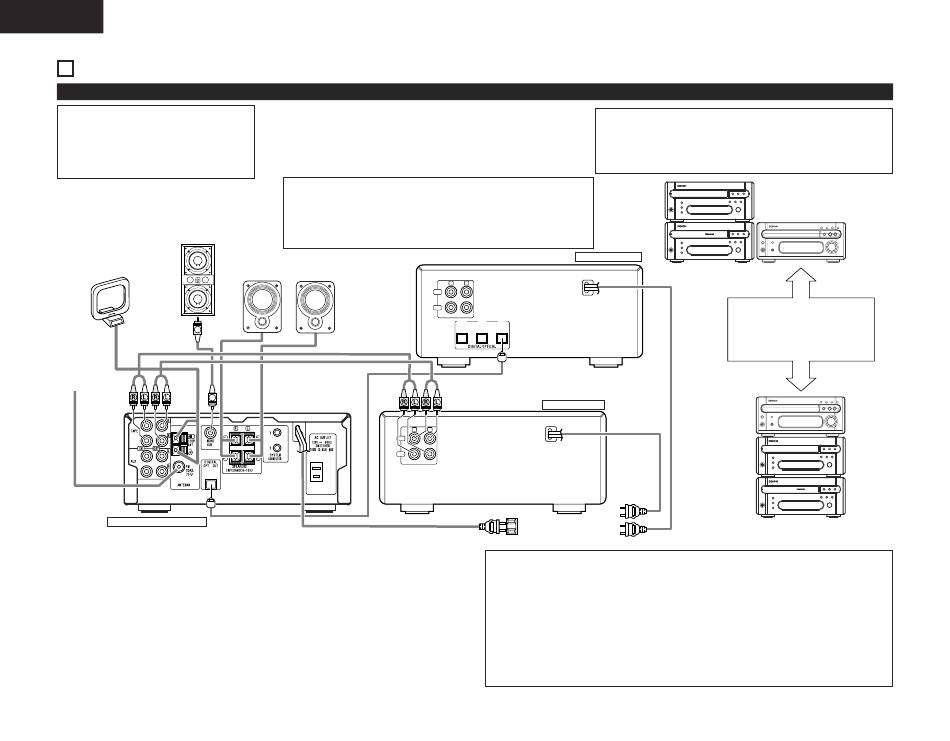

CONNECTIONS

(1) Connecting to Cassette deck
NOTE:
• This system includes digital circuitry which
may cause interference such as color
blotching or changes in the color on TVs. If
this happens, move the system and the
TV as far apart as possible.
Subwoofer
AM loop antenna
FM antenna
CD receiver (RCD-M33)
System operations
Such system operations as the timer and the auto power on functions, as well as remote control
operations cannot be performed unless all the RCA pin-plug cords are connected between the
units, so be sure to make all the connections properly as shown in the diagram. Be sure to unplug
the power cord before changing connections.
6
Connecting the speaker systems
Connect the speaker system for the left channel (the left side as seen
from the front) to the L terminals, the speaker system for the right
channel to the R terminals. Refer to the instructions supplied with the
speaker system for details. Be sure to use speaker systems with an
impedance of 6 Ω/ohms or greater.
Note to CATV system installer:
This reminder is provided to call the CATV system installer's attention
to Article 820-40 of the NEC which provides guidelines for proper
grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close to the
point of cable entry as practical.
Speaker systems (SC-M53)
Right Left
R
IN
OUT
CD Recoder etc.
R L
IN
OUT
LINE
OUT IN-2 IN-1
Cassette Deck
L
LINE
Power plug
AC 120 V, 60 Hz
(Plug into a power outlet)
NOTES:
• Do not plug the power cord into the power outlet until all connections are completed. Be
sure to interconnect the channels (L to L (white) and R to R (red)) properly, as shown on the
diagram.
• Insert the plugs securely. Incomplete connections may result in noise.
• Be sure to connect the speaker cords between the speaker terminals and the speaker
systems with the same polarities ( + to +, – to – ). If the polarities are switched, the sound at
the center will be weak, the position of the different instruments will be unclear, and the
stereo effect will be lost.
• After unplugging the power cord, wait about 5 seconds before plugging it back in.
• Note that setting the connection cords (pin-plug cords) next to the power cords may result in
humming or other noise.
CAUTION:
• Whenever the power operation switch is in the STANDBY
position, the unit is still connected to AC line voltage.
Please be sure to unplug the power cord when you leave home
for, e.g.,a vacation, etc.
CD Recoder etc.
Cassette Deck
Side by side installation
Install the sets as shown in one
of these diagrams. In either
case, be sure that the CD
receiver's ventilation holes are
not obstructed.
RCD-M33
CD Recoder etc.
Cassette Deck
Stacking installation
RCD-M33
