3.1 Positioning

• The compactSteam unit is designed for wall-mounting;
• to ensure correct steam distribution, position the humidifier
near the point of steam distribution steam;
• make sure the humidifier is vertical, leaving the minimum
clearances (see Fig.3.a and Tab. 3.a) for the installation of the
duct model and (Fig. 3.b and Tab. 3.b) for the room model)
to ensure safety and allow for the necessary maintenance
operations.
Duct steam distribution
B
A
C
E
D

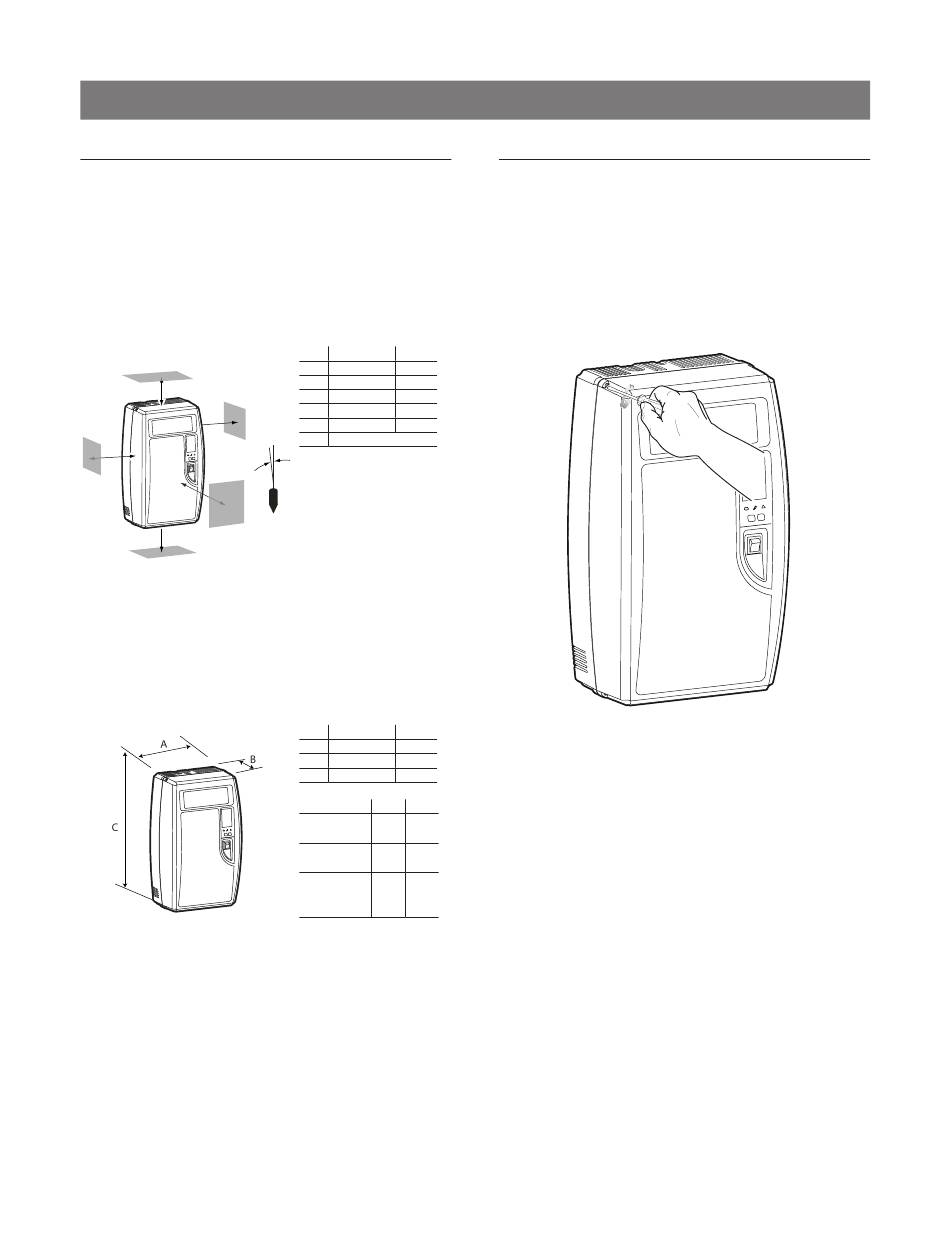

Fig. 3.a
Dimensions of the unit (for all models):
Fig. 3.b
"compactsteam" +03U0092EF - rel. 1.0 - 2020.08.31

3. INSTALLATION

Millimetres Inches
A 150 mm 6"
B
150 mm 6"
C 150 mm 6"
D 150 mm 6"
E 600 mm 24"
F
max. 0.2
Tab. 3.a
F
Millimetres Inches
A 341 mm 13.4"
B 204 mm 8.1"
C 600 mm 23.7"
kg lb
Empty 8 kg 18 lb
weight
Packaged
10 kg 22 lb
weight
Weight 12 kg 26 lb
installed +
water
Tab. 3.b

3.2 Mounting

Removing the front cover
The front cover is fastened to the body unit using four Phillips head
screws located in the four corners of the unit. Use a screwdriver
to unscrew the four screws on the cover as shown in Fig. 3.c, then
remove the cover by simply pulling it outwards. To replace the
cover, perform the same operations in the reverse order.
Be careful not to over-tighten the screws.
14
Fig. 3.c
